Foglight Agent Manager 5.9.5 - Foglight Agent Manager Guide

Configuring the embedded Agent Manager Installing external Agent Managers
Understanding how the Agent Manager communicates with the Management Server Deploying the Agent Manager cartridge Downloading the Agent Manager installer Installing the Agent Manager Starting or stopping the Agent Manager process Frequently asked questions
Configuring the Agent Manager Advanced system configuration and troubleshooting
Configuring Windows Management Instrumentation (WMI) Configuring Windows Remote Management (WinRM) UNIX- and Linux-specific configuration
Monitoring the Agent Manager performance Deploying the Agent Manager to large-scale environments

Monitoring the Agent Manager performance

Foglight® uses the Agent Manager to communicate with monitored hosts. The embedded Agent Manager can be used to monitor the host on which the Management Server is installed. Your monitoring environment typically includes a number of Agent Manager instances installed on different hosts.

Investigating Agent Manager diagnostics

You monitor the state of your Agent Manager instances and the related Management Server adapters using the FglAM Performance Overview dashboard. Use this dashboard to better find out how these components perform over time and to look for any indicators that may predict potential bottlenecks. For example, an unusually high number of pending messages in the queue indicates a potential performance bottleneck. To access this dashboard, from the navigation panel, choose Dashboards > Management Server > Diagnostic > Agent Manager.

The information appearing on this dashboard appears on two major tabs, Adapter Details and Client Details, each consisting of several sub-tabs. For more information about the data appearing on this tab, see the following topics:

Exploring the Adapter Details tab

The Adapter Details tab allows you to investigate the performance of the Management Server adapters that communicate with the connected hosts. Use it to see the overall processing rates and to estimate your system’s load. Higher processing rates may lead to decreased performance, requiring further investigation.

For more information about the data appearing on this tab, see the following topics:

Message Processing tab

The Message Processing tab contains graphs that tell you how well the adapter is handling incoming messages. It displays the numbers of connected hosts and agents, the number of incoming queue threads, and the numbers of pushed and pending messages over time. It also shows the minimum and maximum polling intervals, the rate of incoming messages, and the percentage of time the adapter spends on message processing.

High peaks in the graphs likely indicate a potential performance bottleneck. For example, a buildup of pending messages can cause delays in your monitoring environment and should be investigated.

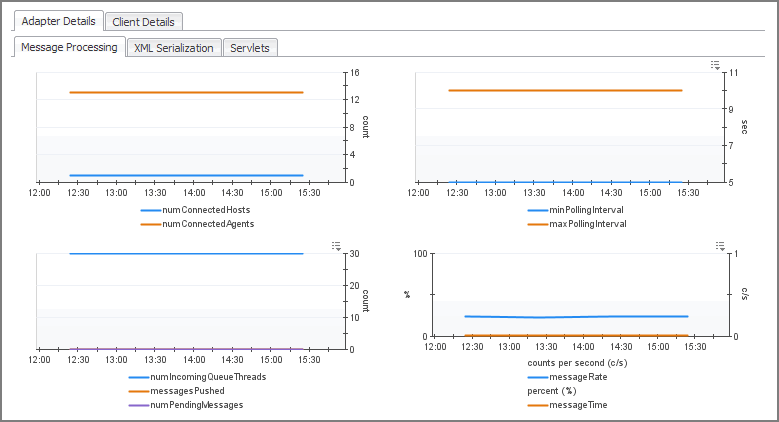

Figure 2. Message Processing tab
