Job Detail area

Previous Next



Job Detail area

The Job Detail area contains job configuration data and the progress and status of currently running jobs and tasks. This area features two tabs: Detail and Log. For example, if you select Recent Jobs in the My Jobs pane, the Job Detail area displays this type of data in the Detail tab. The data in the corresponding Log tab indicates which VMs or servers were retrieved, which disks were skipped, and which tasks were completed. It also indicates that the job was saved.

My Repositories view

Previous Next


Using vRanger > My Repositories view

My Repositories view

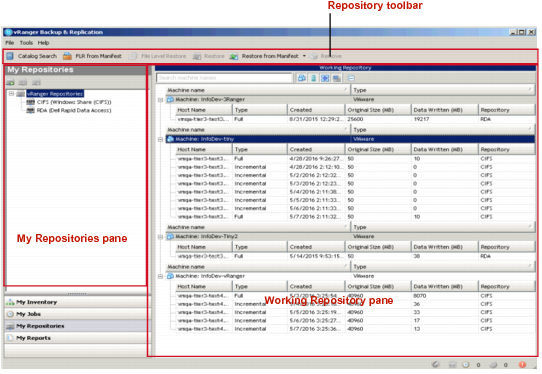

This view displays the configured repositories and available savepoints. This view is the one from which most restore jobs are configured. It consists of the My Repositories pane on the left and the Working Repository pane on the right.

My Repositories pane

Previous Next


Using vRanger > My Repositories view > My Repositories pane

My Repositories pane

This pane displays the configured repositories in a tree structure, grouped by repository type. Repositories can be added and removed through the pane toolbar.

My Repositories pane toolbar and icons

Catalog: After selecting a repository, click this icon to search or browse for a specific savepoint.

File Level Restore: When you want to restore an individual file from a savepoint, click this icon to access the File Level Restore dialog box.

FLR From Manifest: When you want to restore an individual file from the Manifest, click this icon.

Restore: When you click to select a backup job or savepoint in the Working Repository pane, click this icon to open the Restore Wizard.

Remove: To delete a savepoint that is selected in the Working Repository pane, click this command.

Add: Use this command to add either a repository.

Properties: This icon is the gateway to the connection information and repository credentials used to connect to the share. You can update credentials at any time.

Remove: Click this icon to open the Repository Removal Confirmation dialog box. Before removing a repository, confirm that it is not needed to store current jobs.

Working Repository pane

Previous Next


Using vRanger > My Repositories view > Working Repository pane

Working Repository pane

The Working Repository pane shows the configured repositories and the savepoints stored there. The data displayed in this pane can be filtered by inventory type and/or search criteria. Selecting the top-level vRanger Repositories node will display savepoint contents for all repositories. Selecting a specific repository displays only the contents of that repository.

Grouping

The Working Repository pane groups savepoints by machine name and can be filtered by machine type or to match search results.

Search: Free-form search that filters displayed machine names based on characters entered into the search form.

Machine type: Toggles the display of savepoints based on machine type. Machine types can be selected in any combination. Options are:

Expand All: Expand all machine entries to view savepoints.

CollapseAll: Collapse all machine entries to hide savepoints.

Sorting

The columns in the Working Repository pane can be re-ordered by dragging a heading and clicking the column. When you click, an arrow is displayed in the column heading, indicating the sort order — ascending or descending. Click the column heading again to change the sort order.
