Communication ports

This section provides information about the communication ports required to create a virtual test environment with the Active Directory Virtual Lab.

In this section:

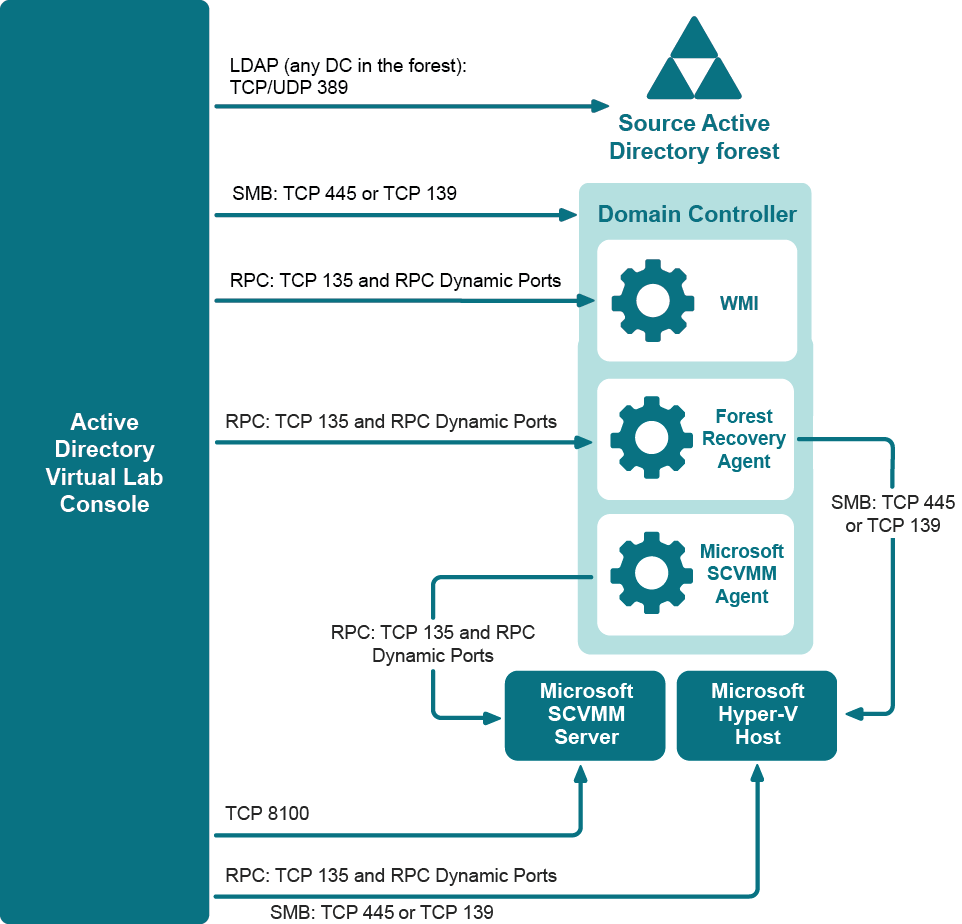

Microsoft SCVMM 2012 or 2012 SP1 Environment

Resources/Images/7_UG.png

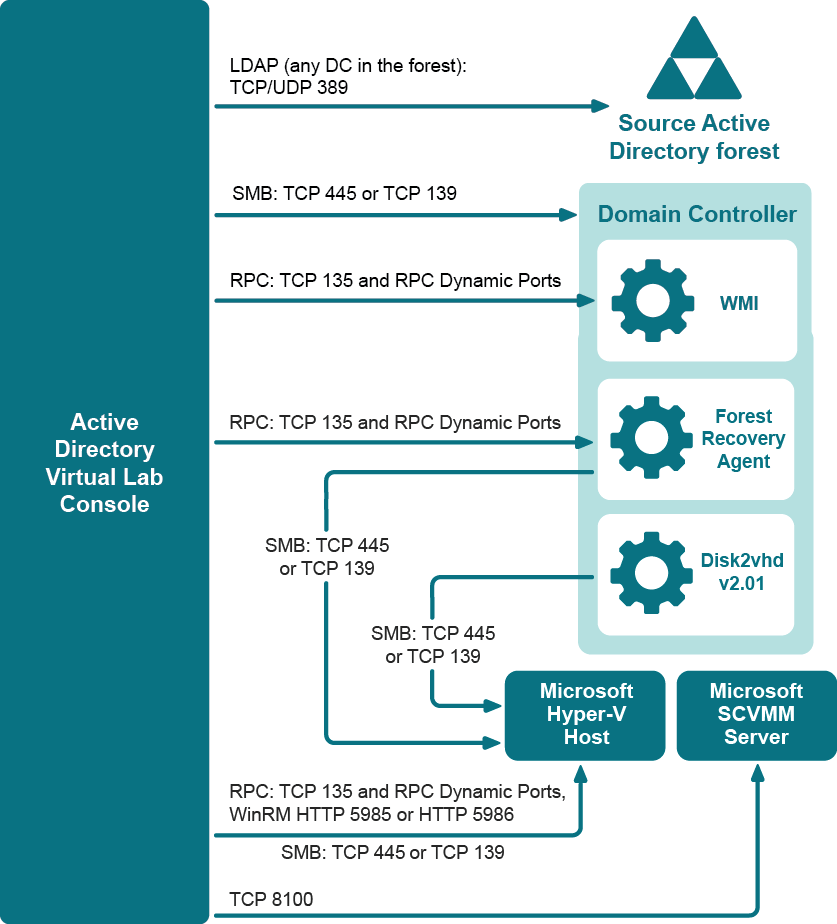

Microsoft SCVMM 2012 R2, 2016 or 2019 Environment

Resources/Images/7_UG-01.png

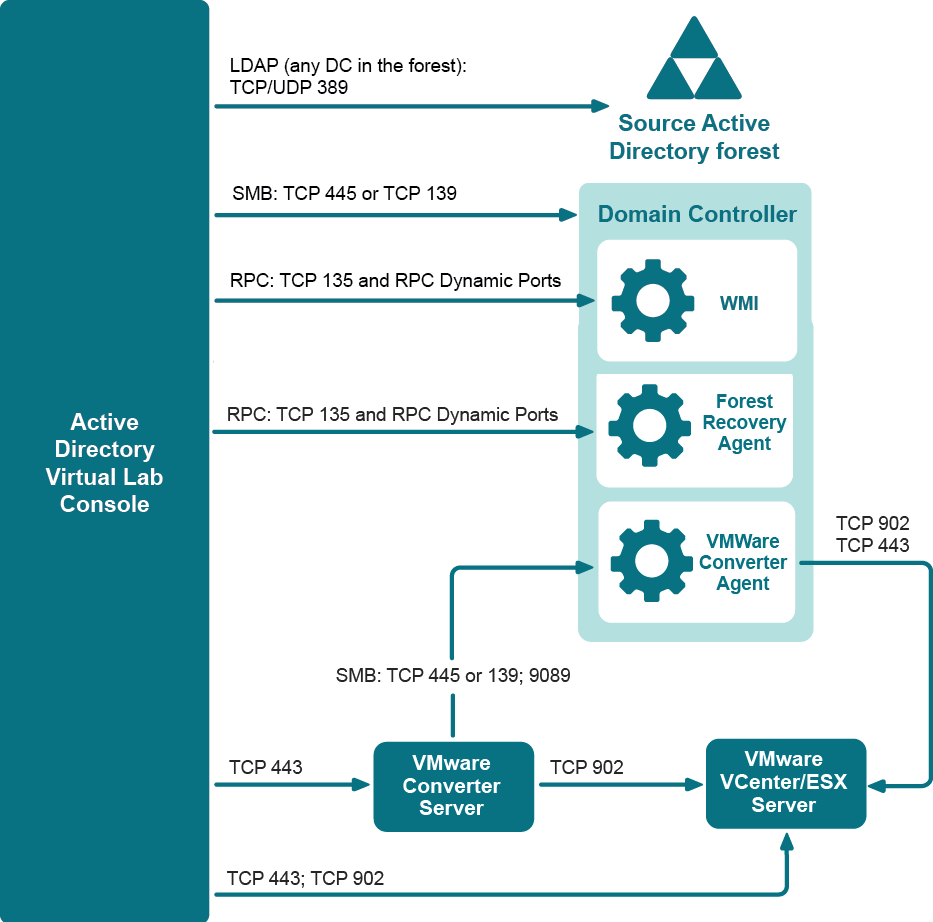

VMware Environment

To successfully setup the VMware vCenter® Converter™ Agent you should provide network connections via DNS between all members of the conversion process: domain controller, VMware vCenter® Converter™ Server, Recovery Manager Console and VMware vCenter® / VMware ESX® Server.

If Active Directory Virtual Lab is unable to connect to VMware vCenter® Converter™ Server with the following errors, you should enable communication between VMware PowerCLI and VMware vCenter Server® systems that use the TLSv1.1 or TLSv1.2 protocols. For more details, see Enabling the TLSv1.1 and TLSv1.2 protocols for PowerCLI (2137109).

"Unable to establish a secure communication channel between the converter server and the remote machine"

-OR-

"Could not access the VMware vCenter® Converter™ server. Details: The underlying connection was closed: An unexpected error occurred on a send"

To install Converter Agent, use built-in Administrator account to connect to the source machine or disable User Access Control (UAC) on the source machine.

Resources/Images/8_UG.png
