Quest Protect 1.9 - User Guide

Protected Status Tab - Rapid Recovery

The Protected Status view of the Protection dashboard shows the unprotected virtual machines and unmonitored Rapid Recovery Protected virtual machines on the monitored Rapid Recovery Core. The Protected Status view includes the following two tables:

3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.

Unprotected Virtual Machines table

The Unprotected Virtual Machines table shows a list of virtual machines that are monitored by the Foglight for VMware, but not backed up in the monitored Rapid Recovery environment.

Name. Shows the name of virtual machine.
State. Indicates whether the virtual machine is Powered On, Powered Off, or Suspended.
Explore. Shows the link to the Virtual Machine Explorer dashboard.

Drill down on:

Explore. Click to navigate to the VMware Explorer dashboard. For more information, refer to the Foglight for VMware User and Reference Guide.
Configure Backup. Click to allow user to choose Rapid Recovery Core server for backup.

Unmonitored Rapid Recovery Protected Virtual Machines table

The Unmonitored Rapid Recovery Protected Virtual Machines table shows a list of virtual machines that have backup files on the Rapid Recovery Core Servers, but not monitored by the Foglight for VMware.

Name. Shows the display name of Rapid Recovery Core Server, cluster, or virtual machine.
Status. Indicates whether the machine connectivity is Online, Failed, Paused, or Unreachable.
Protected Space. Indicates the amount of protected storage space.

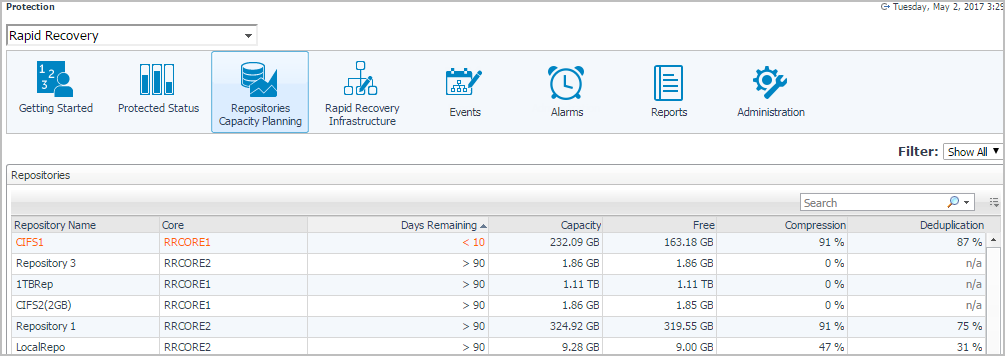

Repositories Capacity Planning Tab - Rapid Recovery

The Repositories Capacity Planning view of the Protection dashboard shows the information about repositories in which backup snapshot data captured from your monitored protection environment is stored and managed. The Repositories Capacity Planning view includes the following two elements:

3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
