Removing a client from the list of available clients

If the list of available clients includes a machine that is no longer in use, you can use the following procedure to remove it from the list.

To remove a defunct client from the list of available clients:
1
Start the client addition wizard.
2
In the NetVault Backup Clients table, select the defunct client, and click Remove.
3
In the confirmation dialog box, click Remove.
4
If NetVault Backup has been removed or stopped, the following message is displayed:
Client <client name> is not responding. Unable to remove this client.
If this error is displayed, click Force Removal in the Error dialog box to remove the client.

Managing clients

This section includes the following topics:

•
Viewing client details
•
Setting client description
•
Installing plug-ins
•
Installing product license keys
•
Checking client access
•
Removing plug-ins
•
Removing a client from the server

Viewing client details

You can view all existing clients from the Manage Clients page. The page displays the client name, description, status, and product version. To view more information about a client, select the client, and click Manage.

To view client details:
1
In the Navigation pane, click Manage Clients.
2
On the Manage Clients page, you can view all NetVault Backup Clients that are added to the server. The page also displays Virtual Clients.

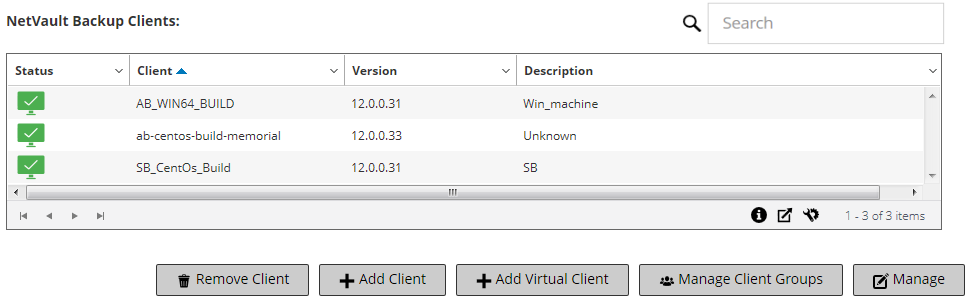

Figure 5. Manage Clients page

The page shows the following information about the machines:
•
Status: Displays the status icons, which indicate the type of client and whether the client is online or offline.
•
Client: Displays the NetVault Backup name assigned to the client.
•
Version: Displays the NetVault Backup version installed on the machine.
•
Description: Displays the client description.
The following table provides a brief description of the client icons.

Table 22. Client icons
Icon
Description

Client is up and running.

Client is online. It is in the process of being added, or the NetVault Backup password for the client has changed since it was added.

Client is unavailable. The system is offline or the NetVault Backup Service is not running.

Represents a Virtual Client that consists of a cluster of Clients. For more information about Virtual Clients, see Working with client clusters.

3
By default, the table is sorted by client name.
You can sort the table by one or more columns, as required. For more information, see Sorting records in NetVault Backup WebUI.
To view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI.
4
To quickly find entries containing specific field values or text, you can use the Search box at the upper-right corner of the table. The data in the table is filtered as you type the search text into the box. You can also include wildcards (“?” or “*”) in the search filter string.
5
In the NetVault Backup Clients table, select the client that you want to view, and click Manage.
6
On the View Client page, you can view the following details:
•
Client Summary: The Client Summary area displays the following information: NetVault Backup machine name, client description, NetVault Backup version, machine ID, network name of the machine, IP address, release information, and OS.
•
Server Capabilities: To view the server license capabilities, click this link. You can view the license capabilities for clients, SmartClients, and various types of devices.
•
License Key Details: To view the license key information for the server or client and any licensed plug-ins installed on the machine, click this link.
•
Installed Plug-ins: The Installed Plug-ins table displays the plug-ins installed on the selected client. The details include the plug-in name, version number, and installation date.
7
To perform a client-related task, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.

Setting client description

You can use the following procedure to set a description for a client. Client description can help you determine the location of the client or the role of the machine.

To set or change client description:
1
In the Navigation pane, click Manage Clients.
2
In the NetVault Backup Clients table, select the applicable client, and click Manage.
3
On the View Client page, under the Client Summary area, you can view the client description.
To set or change the client description, click the Edit icon. In the Edit Description dialog box, type a descriptive text for the client.
4
Click Save to save the details and close the dialog box.
