MessageStats 7.8 - Administrator Guide

What is MessageStats? MessageStats Information Sources Using the Console Interface Creating a Connection to Exchange Creating Gathering Tasks Default Gatherings Extending Gathering Tasks Configuring Audits Setting MessageStats Server Properties Setting Configuration Properties Setting Exchange Organization Properties Setting Exchange Server Properties Setting Task Execution Server Properties Setting Task Default Properties Compressing Tracking Log Files Using the MessageStats Reports Console Database Management Appendix A:Microsoft ASP.NET Configuration Issues Appendix B: Gathering Task Dependencies Appendix C:Troubleshooting Permission Problems

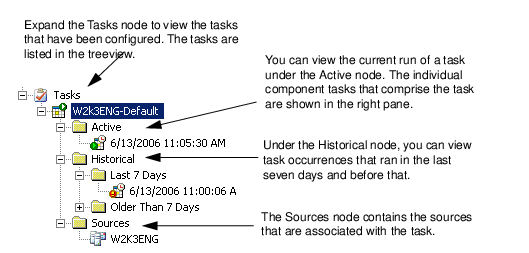

Tasks Node

The Tasks node contains a list of all the tasks that you have configured and you can expand each task to show the Exchange objects (such as an organization or Exchange servers) included in the task.

If you right-click the Tasks node, you can set properties for all tasks. For more information, see Introducing Task Default Properties .

If you expand the Tasks node, you can view existing tasks and make changes to the individual tasks.

The tasks that appear in the Summary view provide the following information:


Table 6. Tasks node summary view options.
Information
Description

Name

Displays the name assigned to the task. To change the name, you can open the Task Properties dialog box and change the task name on the first page.

Credentials

Displays the credentials used to run the task. If you need to change the credentials, you can open the Task Properties dialog box and edit the Task Credentials page.

Schedule

Indicates the schedule frequency set for the task. To change the schedule, you can open the Task Properties dialog box and edit the Task Schedule page.

Next Occurrence

Indicates the next time the task will run. This information is based on the Task interval information you set on the Task Schedule page.

Description

Displays the description of the task as it appears on the Task Properties dialog box.

Progress

Displays a progress percentage and progress bar to represent all the constituent activities of the Task.

Available Options for Tasks

You can perform the following actions for an individual task.

:
Table 7. Individual task options.
Option
Description

Cancel

Cancels the task (or component tasks) that are not complete. If you cancel a task, component tasks in progress finish and all pending tasks are cancelled.

Delete

Deletes the task from the Task list.

Properties

Opens the Properties dialog box for the selected task. For information about individual task properties, see the chapters about Default Gatherings and Extending Default Gatherings.

NOTE: If you select the Tasks node and right-click, you can set default properties for all tasks. For more information, see Introducing Task Default Properties .

Run Now

Allows you to start the task immediately.

NOTE: If you select Run Now for a recurring task, the task still runs at the next scheduled interval.

Run Now with Override

If a task has run successfully, built-in gathering rules prevent a task from regathering information in the same (UTC) day. This option allows you to force a task to rerun and regather information when it has already completed successfully the same day. For more information, see Forcing an Update on Demand for Exchange .

View

Allows you to customize the view of the MMC environment. This option is an MMC default.

Refresh

Allows you to refresh the console view.

Help

Opens the online help. MessageStats online help and the MMC online help are available from the same system, depending on the node selected in the treeview.

Expanding Tasks in the Task Activity View

When you select a task in the treeview, it appears in the Task Summary view in the right pane. You can expand the task to view the task status and related information in the Task Activity view.


Table 8. Information available in the Task Activity View.
Information
Description

Description

Describes the tasks. For composite gathering tasks that contain many component tasks, the Description column lists each component task and any other associated task activities.

Source

Indicates the Exchange server against which the task is running.

Status

Indicates whether the task is Pending, Active, Finished, Pending Retry, Unknown, or Failed. MessageStats also shows a status icon beside the Description. For information about the status icons, see Status Icons .

Progress

Contains a progress percentage and an associated progress bar. The progress bar indicates the progress of the task, including all associated task activities.

Waiting For

Indicates the gathering task that must be completed before this task can begin. For information about gathering task dependencies, see Appendix B: Gathering Task Dependencies .

Start Time

Shows the date and time when the task started.

Finish Time

Shows the date and time when the task finished.

Duration

Shows the length of time taken to complete the task.

Execution Server

Shows the server that ran the task.

Cancelling Tasks

From the Task Activity view, you can also cancel task activities.

To cancel a task
1
Expand the task in the listview in the right pane.
2
Right-click the task activity you want to cancel.
3
Click Cancel.
4
Verify that you want to cancel the task.
If you cancel tasks, complete information is not stored in the database. If you cancel tasks that are dependencies for another task, the second task might not gather information as expected.
