Foglight Transaction Recorder 5.6.10 - Getting Started Guide

Inserting Transactions into a Script

The Foglight Transaction Recorder allows you to group into transactions the individual instructions previously recorded. You can then use these transactions to test discrete components of the overall business process.
To insert a transaction into a script:
1
Click the instruction titled Navigate: http://www.quest.com.
2
Holding down the Shift key, click the instruction titled Click: View all Products.
3
Click the Insert Transaction icon .
The Insert Transaction dialog box appears.
4
Type Browsing Dell in the Name field.
5
Click OK.
The script now has one transaction with the initial navigation to the Dell web site and the first two clicks.
6
Click Click: Foglight Transaction Recorder.
7
Holding down the Shift key, click the instruction titled Click: Screenshots.
8
Click the Insert Transaction icon .
9
Type Foglight Transaction Recorder in the Name field.
10
Click OK.
The Script window now displays two transactions.

Saving the Script

By default, Foglight Transaction Recorder scripts are saved to the My Documents folder.
To save the script:
1
Click File > Save.

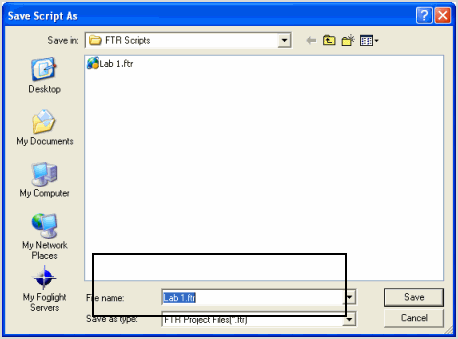

The Script Save As dialog appears.
2
Type a name in the File name field.
3
Click Save.

Playing Back the Script

The following provides the procedure for play back of a script.
To play back the script:
1
Click Play.
The script begins play back.

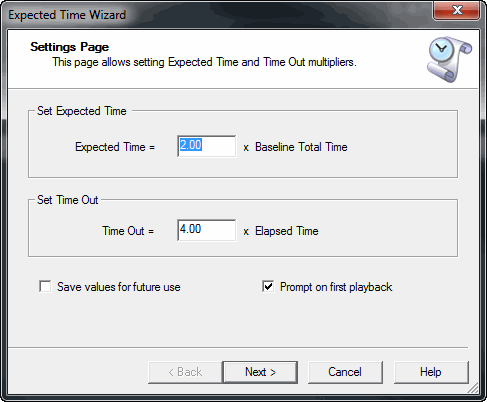

When the playback completes, the Expected Time Wizard appears. The Expected Time Wizard aids the user in setting expected times and timeout values.
2
Enter the new Expected Time multiplier.
The Expected Time is the anticipated time it takes to run a script. The Baseline Total Time is the actual time it takes to run a script. FTR allows you to enter a simple multiplier to determine the expected time to reflect real world conditions. During the monitoring process, if the script or transaction takes longer than the specified expected time, an error is generated in Foglight.
3
Enter the new Time Out multiplier.
Time Out tells the FTR to stop execution and flags an error after a certain amount of time. A multiplier of two tells the FTR to take twice as long to startup, run, and shutdown than it did when the script baselined. The minimum time out value for a script is 60 seconds. When monitoring, if the script takes longer than the specified time out, the process is terminated and Foglight generates a critical error.
4
Click Next.
The Edit Page appears.
5
Click inside the Expected Time and Time Out to change the values, if required.
6
Click Finish.

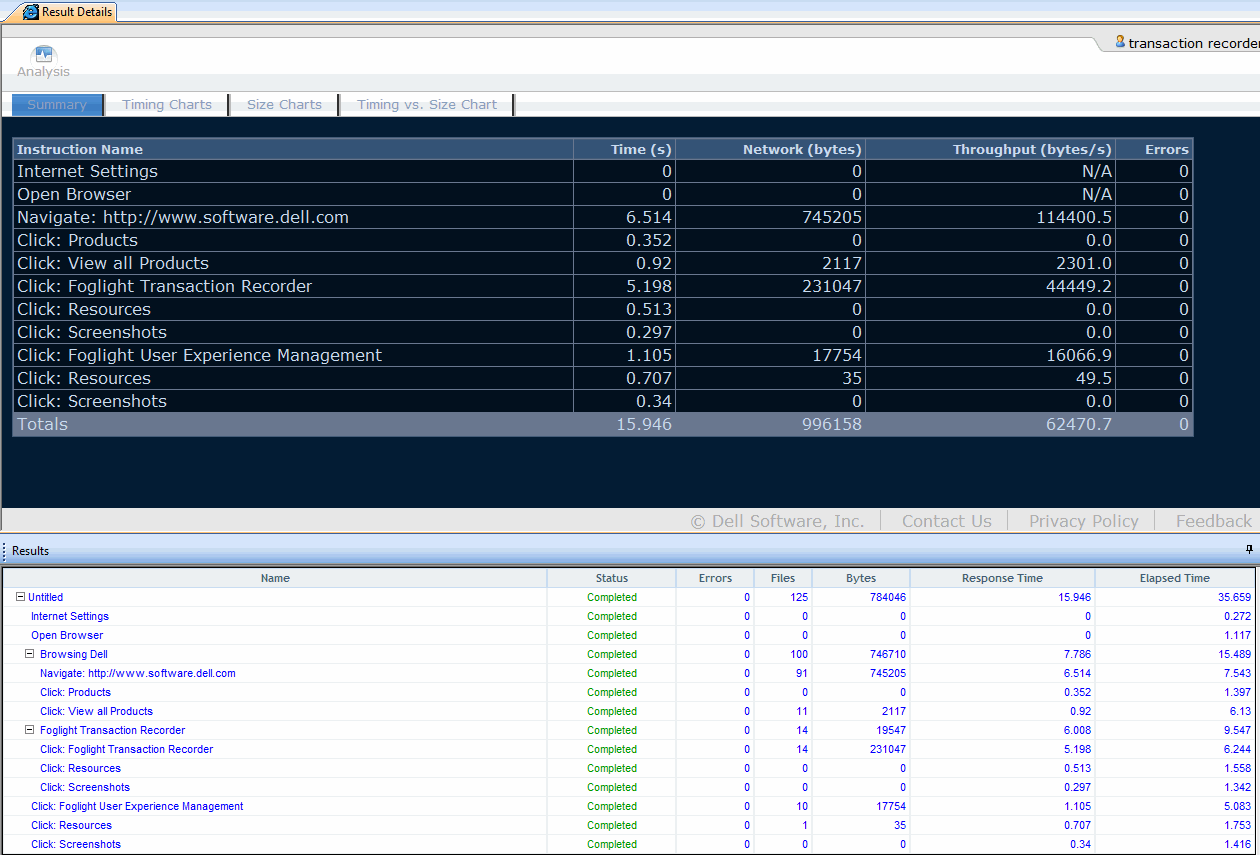

The Analysis window displays the script analysis metrics.


Inserting Validation Rules

Validation rules allow you to verify the following:
•
Anchors—validates an anchor HREF.
•
Images—validates an image SCR attribute.
•
Frames—validates the structure of the frame set.
•
Source—ensures that the source of specified frames contains the text entered.
•
Java Script—executes the Java Script entered and has the ability to raise a warning or error if the script determines that the page is not what it should be.
To insert Validation Rules:
1
Click the Click:Foglight Transaction Recorder instruction in the Script window.
2
Click Insert/Remove breakpoints on selected items in script .
3
Click Play and wait for the script to pause at the breakpoint.
4
Click Validation in the Script window toolbar.

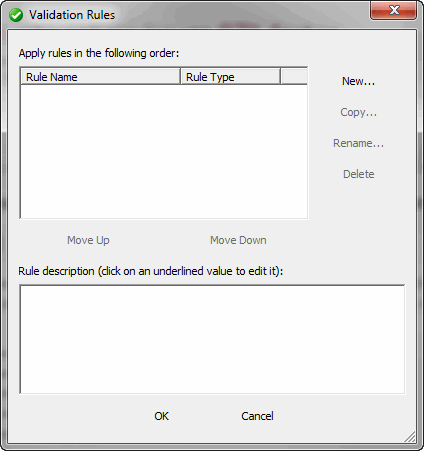

The Validation Rules dialog appears.
5
Click New.
The Validation Wizard appears.
6
Click Verify Anchors exist on the page.
7
Click Next.

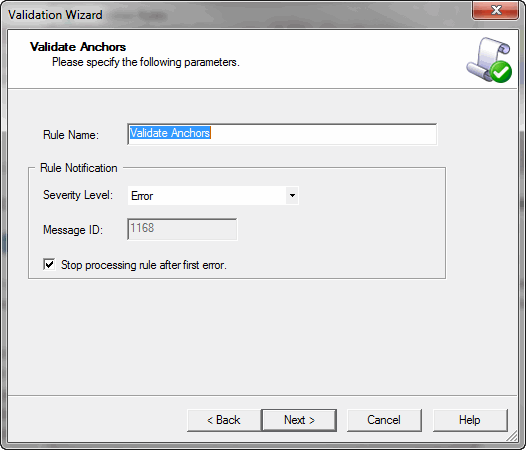

The Validate Anchors dialog for parameters appears. Accept the default settings.
8
Click Next.
The Validate Anchors dialog for parameters appears. Select several of the anchor check boxes.
9
Click Finish.

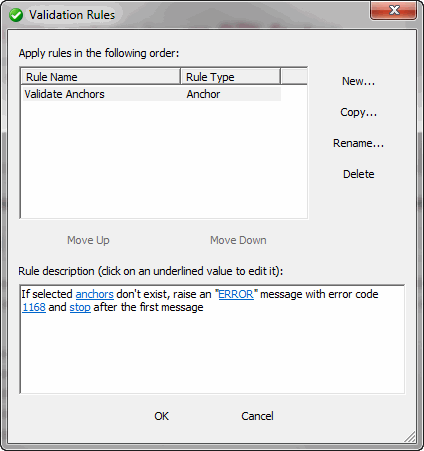

The Validation Rules dialog appears with the Validate Anchors displayed.
Next, you create an image validation.
To create an image validation:
1
Click New in the Validation Rules dialog.
The Create New Rule dialog appears.
2
Click Verify Images have loaded successfully.
3
Click Next.
The Validate Images dialog appears.
4
Accept the default settings. Click Next.
5
Click Next.
The Validate Images dialog appears.
6
Select several of the images check boxes.
7
Click Finish.

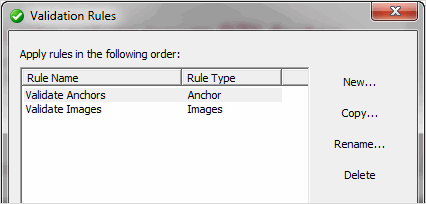

The Validation Rules dialog appears showing the anchors and images validations under Rule Name.
8
Click OK.
9
Click the Click:Foglight Transaction Recorder instruction.
10
Click Insert/Remove breakpoints on selected items in script to remove the breakpoint.
11
Click Play to playback the script.
