Accessing the Administration tab

Accessing the Administration tab
To access the Administration tab:
3
On the navigation panel, under Dashboards, choose VMware > VMware Environment.

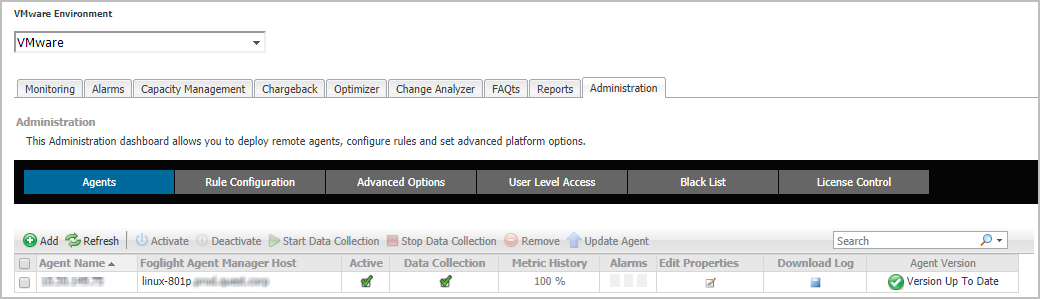

The Administration tab appears in the display area.

Configuring monitoring agents for data collection

Configuring monitoring agents for data collection

Foglight® for VMware uses the VMware Performance Agent to collect information from monitored environments. Creating a VMware Performance Agent instance creates the agent process on the Agent Manager host. Activating the VMware Performance Agent starts that agent process while starting an agent instance’s data collection enables the agent to start collecting data from the monitored vCenter® and to send it to Foglight for VMware.

When the VMware Performance Agent package is successfully deployed, create one or more agent instances, activate them, and start their data collection. To perform these steps in a single operation for one or more monitored hosts, use the Agents view on the Administration tab.

Each VMware Performance Agent monitors a single Virtual Center. When you create a VMware Performance Agent instance and the Agent Setup wizard determines that the Virtual Center was not previously monitored by this Foglight instance, it starts importing historical data into Foglight. This data is not immediately available as it takes some time to collect it. This process can import data collected over 30 days or less, depending on the amount of data available in the Virtual Center. This allows you to explore VMware metrics as soon as the data is imported, instead for waiting for the agent to collect some data from the Virtual Center. The Metric History column in the Agents table indicates the progress of the historical data import. Historical data is intended for charting, trending, and general presentation purposes. It does not cause any alarms to fire.

To import vCenter historical data, the minimum recommended vCenter Statistics Levels must be at least 2 in the samples that are collected for one month for the agent to populate 30 days of historic collections. The following table lists the minimum Statistics Levels for all collection frequencies. For more information about vCenter Statistics levels, see your VMware® documentation.

1 Day

5 Minutes

1

1 Week

30 Minutes

1

1 Month

2 Hours

2

1 Year

1 Day

1



2
On the navigation panel, under Dashboards, choose VMware > VMware Environment
4
Launch the Agent Setup Wizard. In the Agents area, click Add.

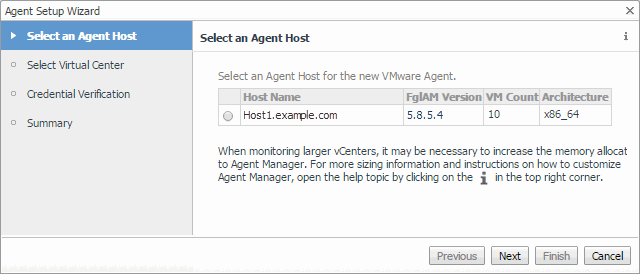

The Agent Setup Wizard appears with the Select an Agent Host page open.

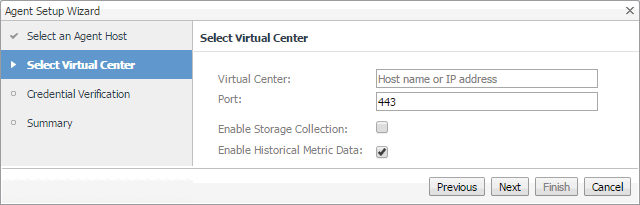

The Agent Setup Wizard refreshes, showing the Select Virtual Center page.
a
In the Virtual Center box, type the fully qualified name of the host on which the Virtual Center is running.
b
In the Port box, type the port number of the host running the Virtual Center that will be used by the VMware Performance Agent to connect to the Virtual Center.
c
If you want to enable the VMware Performance Agent to collect the Foglight Storage data, select the Enable Storage Collection check box. Foglight Storage can help you optimize the VMware environment by monitoring virtual storage and its underlying physical storage components. For more information about this product, see the Managing Foglight Manager Storage User and Reference Guide.
d
If you want to import historical data, select the Enable Historical Metric Data check box. This data is not immediately available as it takes some time to collect it. This process can import data collected over 30 days or less, depending on the amount of data available in the Virtual Center. Selecting this option allows you to explore VMware metrics as soon as the data is imported, instead for waiting for the agent to collect some data from the Virtual Center.
e
Click Next.

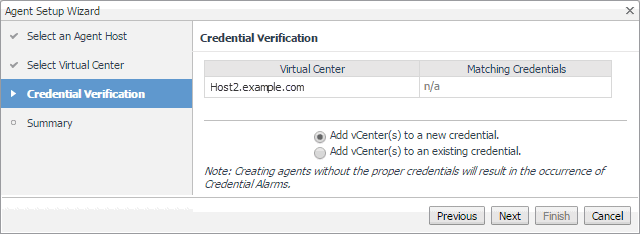

The Agent Setup Wizard refreshes, showing the Credential Verification page.
Add vCenter(s) to a new credential: Select this option if you want to create a new credential for the selected vCenter. Click Next and continue to Step 8.

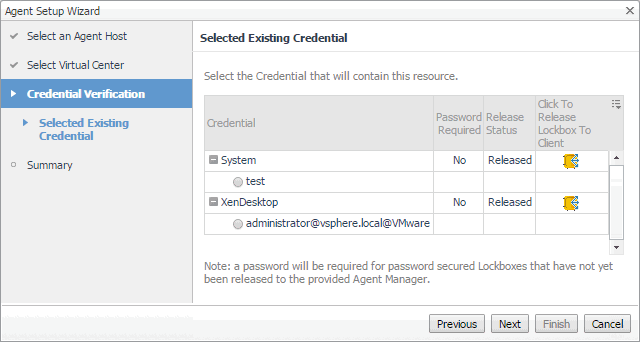

Add vCenter(s) to an existing credential: Select this option if you want to use an existing credential for the selected vCenter. This option is suitable if an existing credential has the information needed to access the vCenter. Click Next and continue to Step 9.

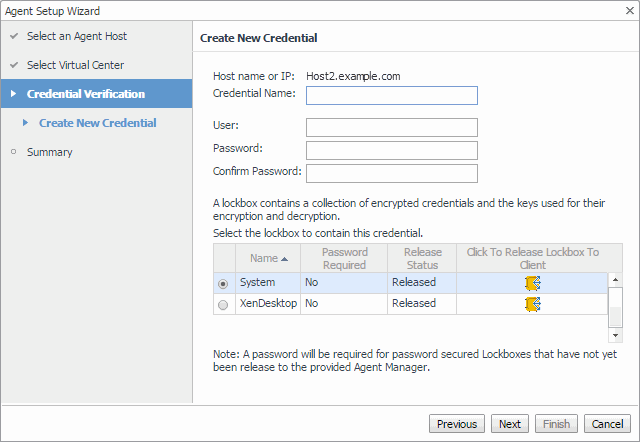

Credential Name: Type a name that uniquely identifies the credential.
User: Type the vCenter user name.
Password: Type the vCenter password.
Confirm Password: Type the vCenter password.
c
Click Next.

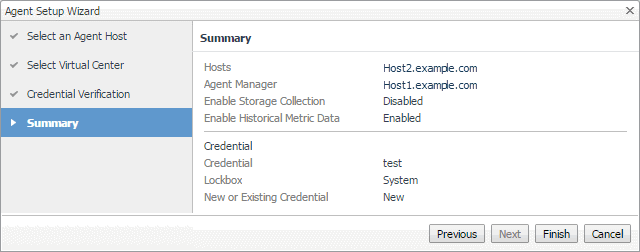

The Summary page appears.
d
Click Finish.
The Agent Setup Wizard closes, and the Agents area refreshes, showing a newly created VMware Performance agent instance.
b
Click Next.
The Summary page appears.
c
Click Finish.
The Agent Setup Wizard closes, and the Agents area refreshes, showing a newly created VMware Performance agent instance.

Managing certificates

In order to successfully make use of the Foglight commands in your monitoring environment, review the syntax conventions before getting started. The syntax conventions are as follows:

<foglight_home> is a placeholder that represents the path to the Foglight Management Server installation.
<foglight_agent_mgr_home> is a placeholder that represents the path to the Foglight Agent Manager installation. This can be the location of the Foglight Agent Manager installation on a monitored host, or the home directory of the Foglight Agent Manager that comes embedded with the Foglight Management Server. For example:

Foglight Evolve agents use Foglight Agent Manager (FglAM) to manage certificates for SSL encryption connection.

All the certificate-related command line options require that FglAM be up and running.

bin/fglam --add-certificate "user alias 1"=/path/to/certificate/file

The alias is required and is used in the list and delete operations to refer to the certificate. It can be anything.

bin/fglam --list-certificates

Print out a list of certificates and the aliases that refer to them.

Refer to the example output below:

Remove a certificate referred to by an alias.

bin/fglam --delete-certificate "user alias 1"

Viewing the overall system status

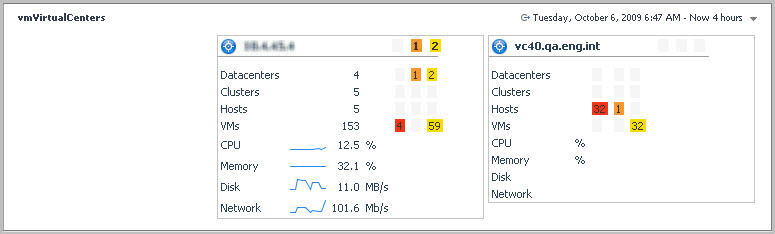

The VMware VirtualCenters dashboard has just one view that displays a Status view for each vCenter that exist within the virtual infrastructure. This dashboard and its embedded status views can be used to take a quick look at the status of each of the vCenters within the infrastructure.

Each vCenter Status view provides an alarm summary for the objects contained within the vCenter. If you click any of the alarm indicators in the alarm summary, an Alarms popup appears showing a list of alarms for the object type that is associated with the alarm indicator.

To access this dashboard, from the navigation panel, under Dashboards, choose VMware > VMware VirtualCenters.

For reference information about the data appearing on this dashboard, see VMware VirtualCenter views .
