Foglight for Sybase 5.9.7.10 - User and Reference Guide

Using Foglight for SAP ASE
Exploring the SAP ASE Dashboards About the Sybase_MDA Agent About the Sybase_RS Agent Generating SybaseMDA Reports
Reference

Using Foglight for SAP ASE

The SAP (formerly Sybase) ASE cartridge monitors the SAP ASE database activity. It contains three major components:

SAP ASE cartridge dashboards provide a visual representation of the status of the major components of the SAP ASE database. They allow you to determine any potential bottlenecks in database performance. For more information, see Exploring the SAP ASE Dashboards .
Sybase_MDA Agents monitor the collection of data by the SAP ASE Web-enabled relational database management system.
Sybase_RS Agents provide a consolidated view of all database instances within a SAP ASE server.

Exploring the SAP ASE Dashboards

The Foglight for SAP ASE includes dashboards which aid in the monitoring, analysis, and investigation of SAP ASE performance.

These dashboards provide the status of the major components of the SAP ASE agents. They allow you to determine any potential bottlenecks in database performance.

Accessing the SAP ASE Dashboards

1
On the navigation panel, under Dashboards, click one of the following:
SYBA: Sybase_MDA to display the list of Sybase_MDA Agent views. See Views for details.
SYBA: Sybase_RS to display the list of Sybase_RS Agent views. See Views for details.
SybaseMDA > Sybase MDA Global View to display the Sybase MDA Global View Dashboard.
SybaseMDA > Sybase MDA Global View, from there, click a Sybase_MDA agent instance to display the MDA Home Page Dashboard.
SybaseMDA > Sybase MDA Global View, from there, click a Sybase_RS agent instance to display the RS Home Page Dashboard.
2
On the navigation panel, under Homes, click Databases to display the Databases Dashboard.

Sybase MDA Global View Dashboard

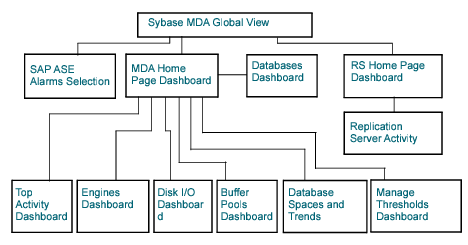

This Sybase Global View dashboard provides many drilldowns for SAP ASE agents. An overview of the dashboard navigation is shown below.

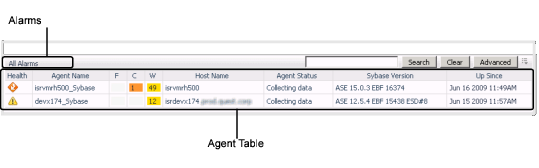

The Sybase Global View dashboard is comprised of two parts:

From the Sybase Agent Table, you can drill down to Sybase Agents Home Pages.
