Foglight for SQL Server (Cartridge) 5.9.5.10 - Deployment Guide

Deployment pre-requisites

Welcome to the Foglight for Databases Deployment Guide. This guide provides the pre-requisites for optimal deployment, to ensure the best user experience possible.

This section describes important deployment information required to monitor the leading RDBMS: Oracle®, SQL Server®, Sybase®, DB2 for LUW, and Azure® SQL.

Architecture

There are three main components:

•
Foglight Management Server and Foglight Database Repository — Responsible for managing, alerting and viewing the collected data. Both components can be set to run on the same machine or reside on separate machines.
•
Agent Manager — Hosts the monitoring database agents.
•
SQL PI Repository — An embedded repository which stores the SQL PI data that the monitoring agents collect. Currently available on Oracle and SQL Server monitoring only.

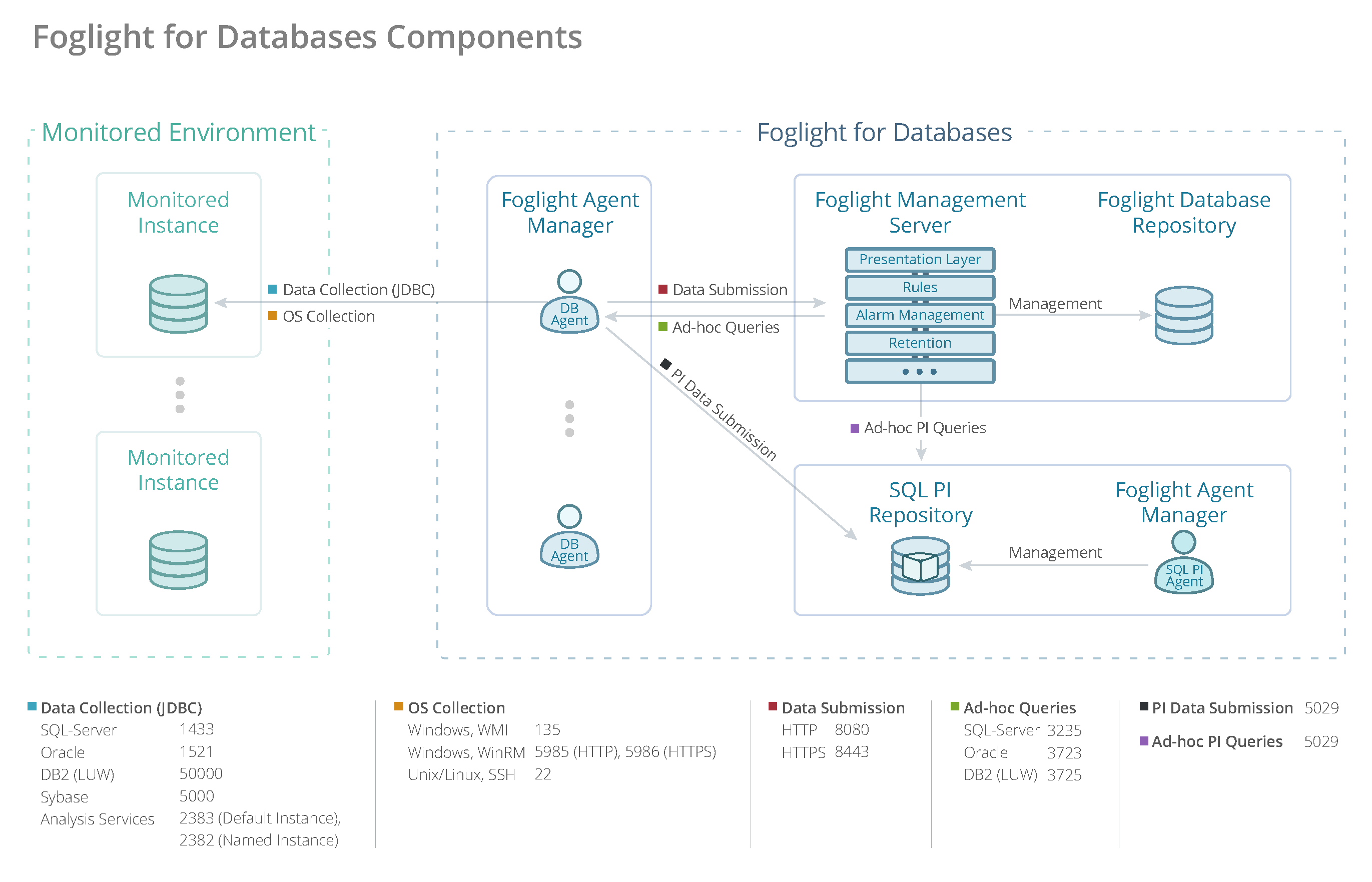

Figure 1. Foglight for Databases Components



Deployment in Centralized vs Distributed

In monitoring environments that exceed a total of 20 agents, a distributed installation is necessary:

•
The FMS should be installed on a dedicated server.
•
External FglAMs should be used for DB Agents and with each installed on a dedicated server.
•
Each instance of the SQL PI repository should be installed on a separate server.

In All-in-One installations on virtual machines (VMs), the machine must have all of the CPU and Memory requirements fully reserved.

Once the total number of agents exceeds 20, All-in-One installations are no longer supported.

Hardware requirements

Identify your hardware requirements, which are determined by whether SQL PI is configured and by the number of monitoring agents.

•
SQL PI configured
•
SQL PI not configured

*
NOTE: The Numbers of agent refers to DB agents. The IC agents resources are calculated within the DB agents. Sizing requirements are exclusively for Foglight components and these resources should not compete with any other resources required for the OS or applications installed on the same system.
