Reviewing the Always On Availability Groups

If one or more databases within the monitored instance is of version SQL Server 2012 Enterprise Edition, is part of an OS cluster and has the Always On feature enabled, the Always On panel allows viewing the status of the Always On availability groups that reside on the cluster.

The Always On panel includes the following sections:

OS Cluster Information

The OS cluster information section displays the following details:

High Availability groups table

The High Availability group table displays information about the availability and health of all availability groups configured in the instance and the databases they serve.

The High Availability group table includes the following columns:

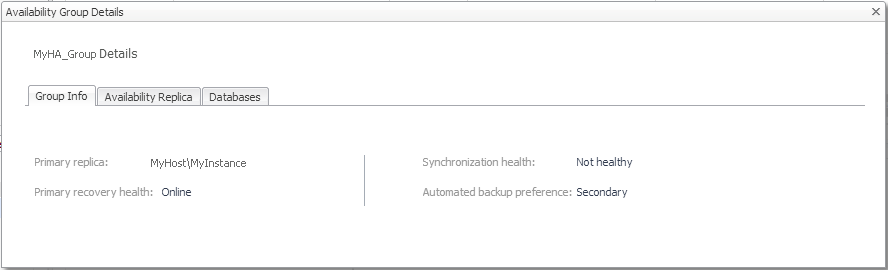

This pop-up contains the Group Info, Availability Replica, and Databases tabs.

The Group Info tab includes the following fields:

The Availability Replica tab lists all replicas associated with the group. This tab includes the following fields:

The Databases tab displays all databases associated with the group. This tab includes the following fields:

Availability group map

The Always On configuration supports one primary replica and up to four secondary replicas for each availability group. The Availability Group Map section allows viewing the dependencies between the various replicas that form the availability group selected in the table. In addition to indicating the name of the OS cluster where the availability replicas reside, the map displays the connections between the primary replica and the secondary replicas, showing on the left the replica that resides on the currently monitored instance.

Clicking the monitored replica displays a pop-up with the following tabs:

Clicking any other replica displays a pop-up with the following tabs:

To view the dependencies between all replicas in all availability groups, click View map for all availability groups. To return from this map to the Always On panel, click Back.
