Foglight for Java EE Technologies 5.9.13 - Administration and Configuration Guide

Searching for single trace hits in FxV

Searching for single trace hits in FxV

From the Application Servers Monitor dashboard Requests view, you can run an FxV action on a single trace to find the corresponding hits in the FxV browser interface, in the same session.

1

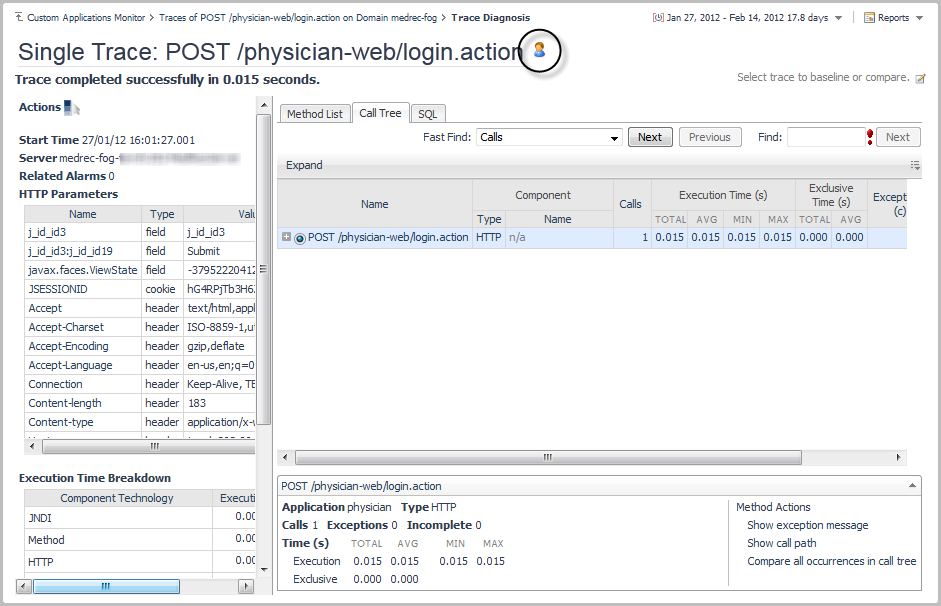

On the Application Servers > Monitor > Requests view, click a trace to view the single trace details.
For detailed information on how to collect single traces, see Manually Collecting Single Traces in the Foglight for Application Servers User Guide.
2
In the Single Trace table, click an entry in the action column.
3
Click FxV: Search Hits (request type, JSESSIONID).
The corresponding hits in the same session (that is, the session identified by the request type and JSESSIONID parameter) are displayed in the FxV browser interface.

Searching for hits using HTTP parameters in FxV

From the Application Servers Monitor dashboard Requests view, you can run an action to find the corresponding hits with the same parameter name and value.

To view FxV hits using HTTP parameters:
1
On the Application Servers > Monitor > Requests view, select a trace to view the single trace details.
2
In the Single Traces table of the Single Traces view, click a trace name.
For detailed information on how to collect single traces, see Manually Collecting Single Traces in the Foglight for Application Servers User Guide.
3
Click the user icon to quickly access FxV hits.
Or

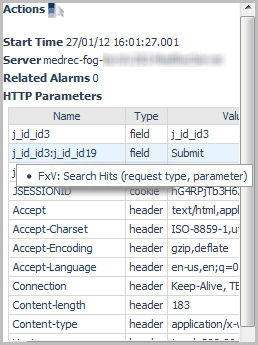

In the left-hand column of the Trace Diagnosis view, click an HTTP parameter, if available.
4
Click FxV: Search Hits (request type, parameter).
FxV hits part of the same HTTP request and having the same parameter are displayed in the FxV browser interface.
For information on how to change the hit search criteria, see the Foglight Experience Viewer User and Reference Guide.
For information about actions, see Application server actions .

Managing Trace Orders

Use the Manage Trace Orders dashboard to review all outstanding single trace orders. From here you can view, sort, and remove trace orders.

To access the Manage Trace Orders dashboard:
•
On the navigation panel, under Dashboards, click Application Servers > Nexus > Administration > Manage Trace Orders.

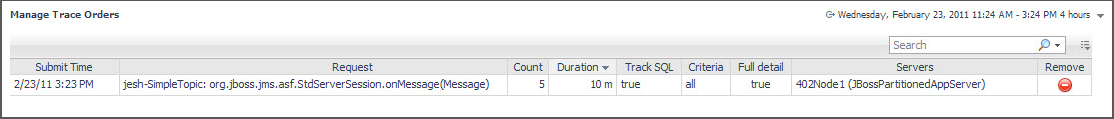

Figure 5. The Manage Trace Orders dashboard.
To sort traces:
•
Click the header for any of the columns displayed in the table.
To remove a trace order:
•
In the Manage Trace Orders dashboard, click Remove for the selected trace.

Adding trace orders

Adding trace orders

You can add trace orders using the Collect Traces option from the Application Servers Monitor dashboard. For more information, see the Managing Traces section in the Foglight for Application Servers User Guide.

Trace orders that you have added appear in the list on the Manage Trace Orders dashboard until they are complete.
