Foglight Log Monitor views

Foglight Log Monitor allows you to monitor and configure your virtual environment. For more information about the Log Monitor dashboard, see Investigating log records.

The Log Monitor dashboard contains the following views:

File Selector view

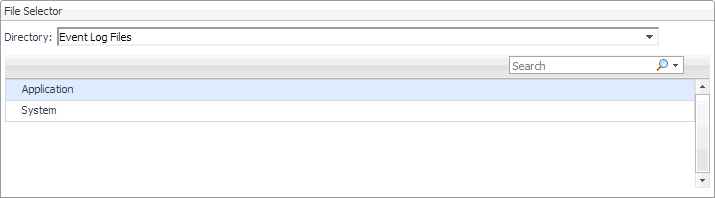

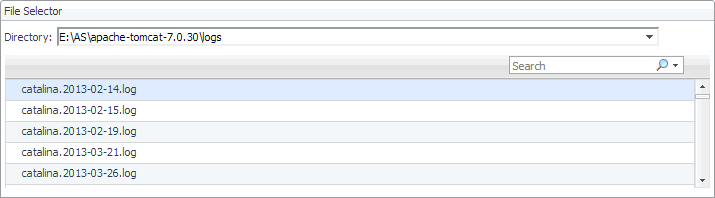

The File Selector view allows you to select a log. You have an option to select a file log monitored by the File Log Monitor Agent, or a Windows Event Log, monitored by the Windows Event Log Monitor Agent.

Directory. Lists the directories containing monitored log files, and the monitored Windows Event Logs.

Log Records view

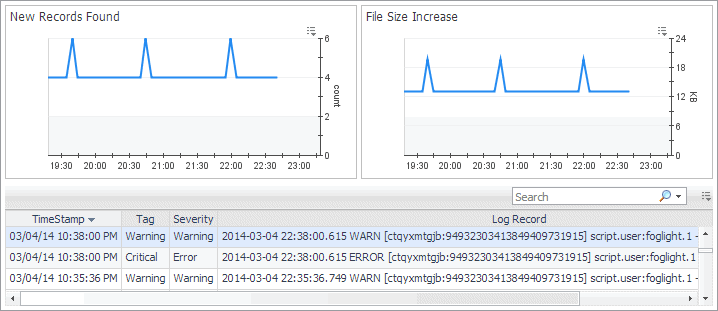

The Log Records view lists the records available in the selected log and shows the growth of log records over time. Use this view to review the contents of your logs, and look for signs that indicate potential issues. The layout of this view depends on the selected log type.

This view is made up of the following embedded views:

Shows the increase in the size of the monitored log file over the selected time range.

Lists the records that exist in the selected log.

Log Record. The message contained in the log record.
Severity. The severity of the log message.
Tag. The tag associated with the record, as specified in the agent properties.
TimeStamp. The date and time when the log record is created.

Shows the increase in the number of log records in the selected log file over the selected time range.

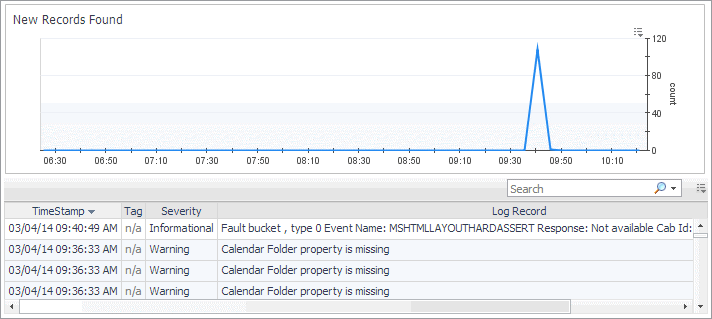

Shows the increase in the number of log records in the selected Windows Event Log over the selected time range.

Record Details view

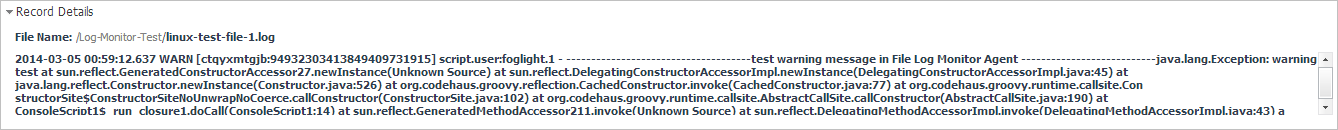

The Record Details view displays the contents of a selected record. The layout of this view depends on the selected log type. Windows Event Log records appear in a table, while file log records appear in text form.

2
In the Log Records view, select a log record.
The Record Details view refreshes, showing the contents of the selected log record.

Displays the contents of the selected record.

Message. The message contained in the Windows Event Log record.
Severity. The severity of the Windows Event Log record.
TimeStamp. The date and time when the Windows Event Log record is created.
Computer. The name of the computer on which the Windows Event Log record is created.
ID. The ID of the Windows Event Log record.
Source. The application that generated the Windows Event Log record.
User. The Foglight severity of the Windows Event Log record.
