Foglight for Exchange 5.8.2 - Foglight for Office 365 User Guide

Deploy Agent Package: Deploy the Foglight for Office 365 agent package, create agent instances on one or more servers at a time, activate or deactivate the agents, and start and stop collecting data. For more information, see Deploy the Foglight for Office 365 agent package.

•

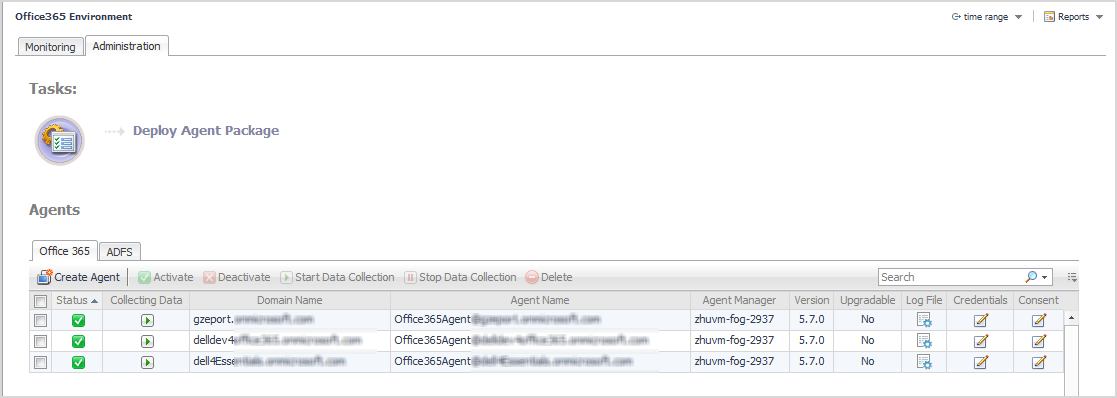

Agents view:

•

Office 365 tab: Add and configure Foglight for Office 365 agents on one or more servers. For additional information, see Managing Foglight for Office 365 agents and Configuring Foglight for Office 365 agent properties.

•

ADFS tab: Add and configure ADFS agents on one or more servers. For additional information, see Managing ADFS agents and Configuring ADFS agent properties.

Each tab in the Agents view includes the Agents management table and the Agents management toolbar.

Agents management table

The Office 365 tab and ADFS tab contain the following information for each configured agent instance.

Table 1. Agents management table
Column	Office 365 tab - Description	ADFS tab - Description
	Use the selection check boxes to select agent instances for activation/deactivation, starting/stopping data collection, editing properties, or removal.
Status	Indicates whether the agent instance is activated. A green check mark in this check box indicates that the agent is active.
Collecting Data	Indicates whether the agent instance is currently collecting data. A green check mark in this check box indicates that the agent is collecting data.
Domain Name	Displays the domain name of the Foglight for Office 365 agent instance.	N/A
Host Name	N/A	The fully qualified domain name (myServer.myDomain.com) of the target server from which data is to be collected.
Agent Name	Displays the name of the Foglight for Office 365 agent instance.	Displays the name of the ADFS agent instance.
Agent Manager	Displays the name of the Foglight Agent Manager Host assigned to the Foglight for Office 365 agent instance.	Displays the name of the Foglight Agent Manager Host assigned to the ADFS agent instance.
Version	Displays the agent version.
Upgradable	Indicates whether the agent is up to date or can be upgraded.
Log File	Click the Log File icon in this column to download the agent log.
Credentials	Click the Edit icon in this column to update the domain credentials.	N/A
Consent	Click the Edit icon in this column to update the agent permissions to use Foglight for Office 365 APIs.	N/A
Edit	N/A	Click the Edit icon in this column to update the ADFS agent properties and credentials.

Agents management toolbar

Use the buttons at the top of the Agents management table to manage your Foglight for Office 365 and ADFS agent instances, as described in the following table.

Table 2. Agents management toolbar
Button	Office 365 tab - Description	ADFS tab - Description
	Create and assign credentials for Foglight for Office 365 agents.	Create and assign credentials for ADFS agents.
	Select to activate the selected agent instance(s).
	Select to deactivate the selected agent instance(s).
	Select to start collecting data on the selected agent instance(s).
	Select to stop collecting data on the selected agent instance(s).
	Select to delete the selected agent instance(s).
	Search for a Foglight for Office 365 agent using the Search filter.	Search for an ADFS agent using the Search filter.
