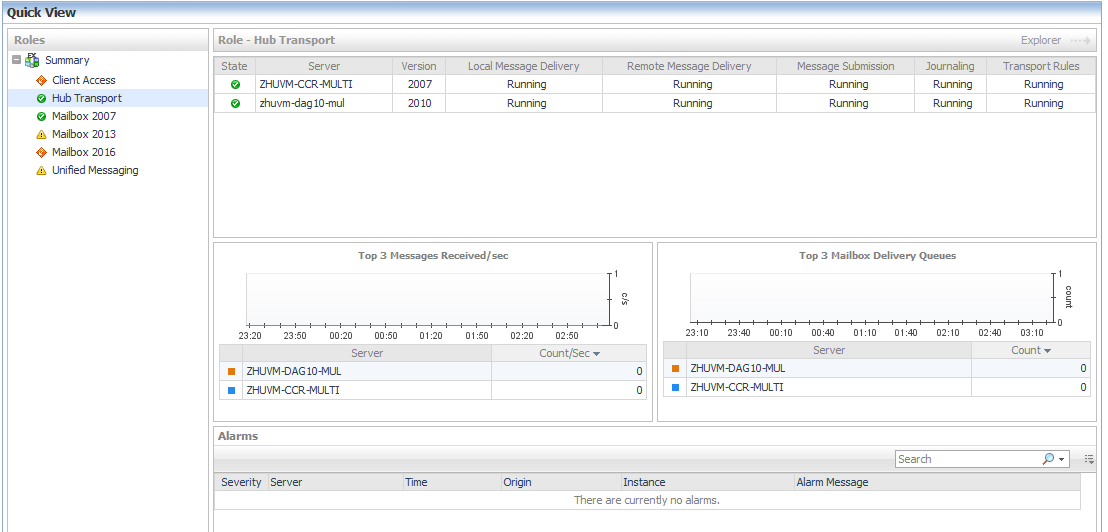

Hub Transport Role Environment Summary view

The Hub Transport Role Environment Summary view displays information about the selected Hub Transport role, showing the Exchange features and the role status per server. It also provides additional metrics and information that pertains to the selected Exchange role.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.

The following embedded views are displayed:

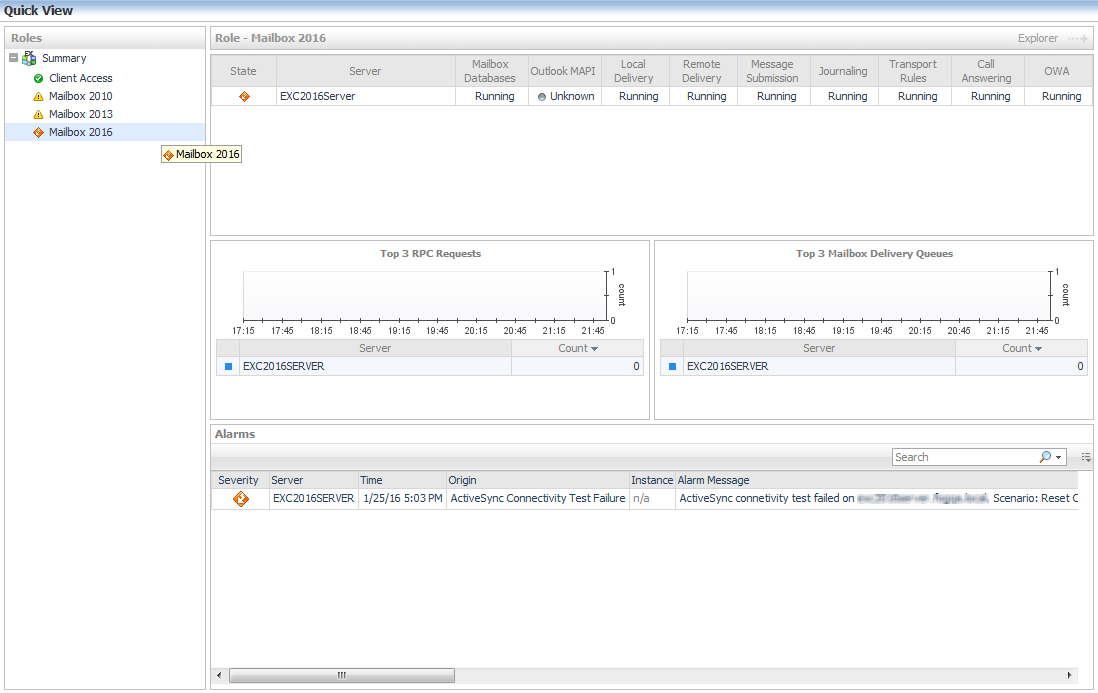

Mailbox Role Environment Summary view

The Mailbox Role Environment Summary view displays information about the selected Mailbox role, showing the Exchange features and the role status per server. It also provides additional metrics and information that pertains to the selected Exchange role.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.
3
From the Object Tree view, select Mailbox 2007, Mailbox 2010, Mailbox 2013, or Mailbox 2016.

The following embedded views are displayed:

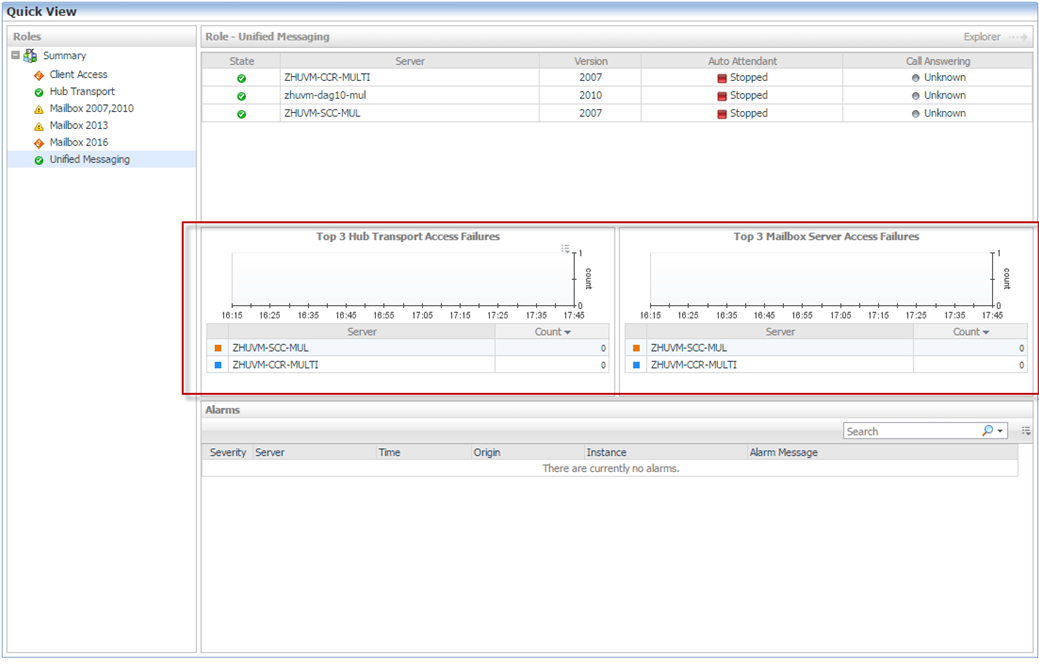

Unified Messaging Role Environment Summary view

The Unified Messaging Role Environment Summary view displays the Exchange features and the role status per server. It also provides additional metrics and information that pertains to the selected Exchange role.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment.

The following embedded views are displayed:

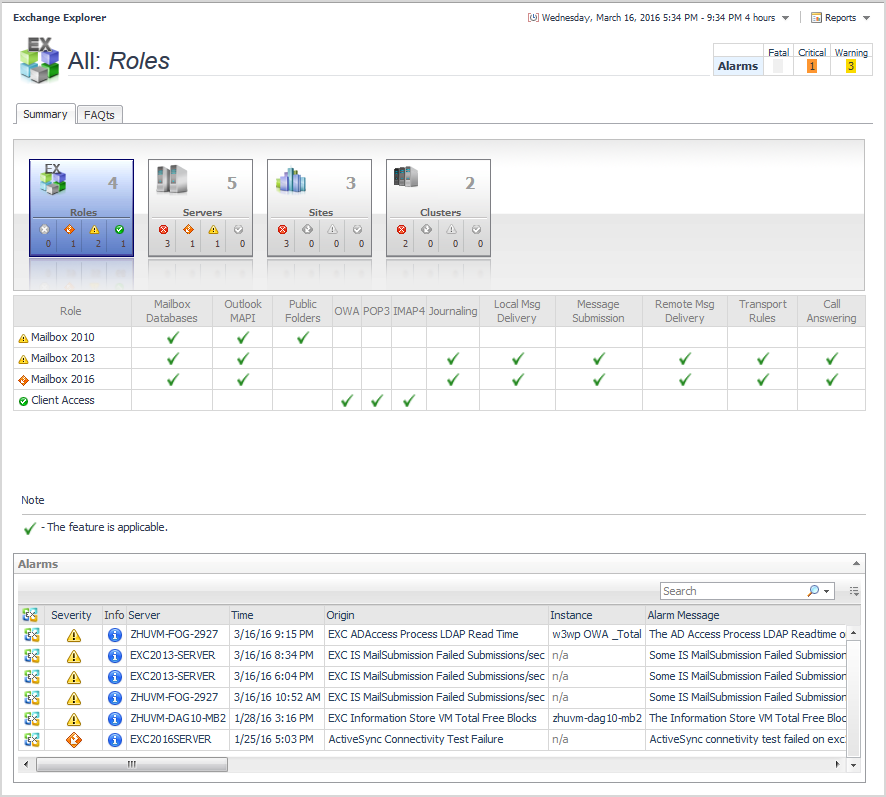

Exchange Roles Explorer Summary (All Roles) view

The Exchange Roles Explorer Summary (All Roles) view displays a list of all the Exchange servers assigned to the different Exchange roles in your environment.

1
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer.

The following embedded views are displayed:
