Complex Table
The Complex Table feature provides an option to display a complex table and object's properties (Title, size of the table, size of the column), and disable all the filters at once.
Hover over
You can configure complex tables at Table Level, View Level, and Column Level.
To configure a complex table at Table level, follow these steps:
1.Open the browser and login to erwin Evolve Web Platform.
2.Click a model. For example, EA Foundation – Sample Model.
3.Click Administration.
4.Click Complex Table.
5.Click the Table Level Settings drop-down list box.
The options for table-level settings appear.
6.Use the following options:
Clear Filter At Start
Switch this option on to clear the filter each time.
Group Columns
Switch this option on to group multiple columns. To group columns, drag the column header to the Drag Column Header here to group section.
Also, you can open and close column groups to show and hide additional columns.

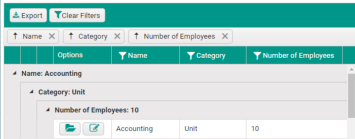

For example, the following image displays the grouped columns.
Popout button
Switch this option on to view the object's properties in the pop-out. To view object properties, click

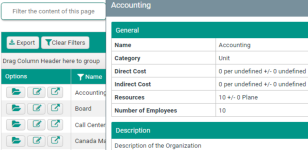

This opens the object's properties in the right pane. For example, the following image displays the Accounting object's properties in the pop-out.
No. of objects per page
Use this option to set the number of objects to display per page in the table.
For example, 2, 4.

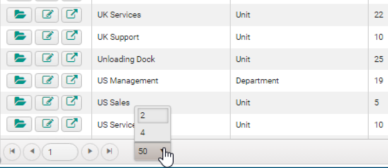

To select the number of objects per page, click the Page Size drop-down list box and select the required number.
Favorite Button
Switch this option on to mark the object as a Favorite.
To mark an object type as Favorite, click
You will be notified that the "The page has been set as a favourite and is now available on your home page."
4.Click
You will be notified that the "Configuration draft has been saved".
5.Click
You will be notified that the "Configuration published successfully".
To configure a complex table at View level, follow these steps:
1.Click the Evolve view drop-down list box and select the required view. For example, Organization & Roles (index_organisations).
2.Click the View Level Settings drop-down and use the following options:
|
|
Before enabling Remove Title option, ensure that the Table title is available in the Evolve Designer. |
Remove Title
Use this option to remove the table title from the table header.
Table Height (%)
Use this option to specify table height.
Remove Options
Switch this option on to remove the Options column from the table.
3.Click
You will be notified that the "Configuration draft has been saved".
4.Click
You will be notified that the "Configuration published successfully".
To configure a complex table at Column level, follow these steps:
1.Click the Column Level Settings drop-down.
2.Select the required table to configure. For example, Organization (organisation_grid).
3.Click the Popout to use drop-down list box and select the required option. For example, organization_diagram_popout.
4.Click the required column to configure. For example, Name.
5.Use the following options:
Name
Use this option to specify the column name.
Order
Use this option to set the columns order.
Column Width (px)
Use this option to specify the column width.
Freeze Column
Switch this option on to freeze the Name column.
6.Click
You will be notified that the "Configuration draft has been saved".
7.Click
You will be notified that the "Configuration published successfully".
Settings
The Settings feature enables you to configure settings at different levels such as Print Settings, Tabs Settings, and Filter Settings.
Hover over
To configure settings, follow these steps:
1.Open the browser and login to erwin Evolve Web Platform.
2.Click a model. For example, EA Foundation – Sample Model.
3.Click Administration.
4.Click Settings.
To configure settings at Print level, follow these steps:
Click the Print Settings drop-down and use the following option:
Hide Print Button
Switch this option on to hide the print button from views or object pages.
To configure settings at the Tabs level, follow these steps:
Click the Tabs Settings drop-down and use the following option:
Hide Tabs with no value or association
Switch this option on to hide the tabs which have no value or association. Also, clicking edit icon on the object page, enables you to unhide the hidden tabs with values or associations.
To configure settings at Filter level, follow these steps:
Click the Filter Settings drop-down and use the following option:
Reset Filters on Refresh
Switch this option on to reset the search filter after the page refresh.
5.Click
You will be notified that the "Configuration draft has been saved".
6.Click
You will be notified that the "Configuration published successfully".
Workflow Explained
Overview
Evolve includes a built-in Workflow capability which provides three useful processes:

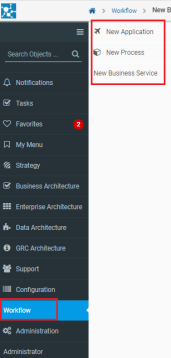

1.A new Separate module for Workflow execution – new module, workflow is added to the Erwin Evolve site, where you can create new applications, process, and business services.
2.A review and approval process for data changes - meaning that when users create objects, delete objects or edit any data in Evolve, those changes are not submitted to the repository until they have been approved.
3.An object validation request process - where users can request for an object to be validated by a nominated set of users, and when all users approve the data, properties are set on the object to record the validation.
4.A review process for Site pages - where you can share a page with a Role and every user in the Role must confirm they have reviewed the content.
Each of these processes are supported by Task and Notification mechanisms. Tasks are created for every workflow that's initiated and users are alerted to them with notifications in the Site menu when they log in, prompting them to take action.
In addition, users of your Site can Follow objects governed by workflows so they are notified of any workflow-related activity affecting those objects.
Workflow can be configured to use SMTP, which enables alerts to be sent to users via email when Tasks are created and completed. The emails, which are customizable, include details of the Task and the latest activity, as well as direct links back to your Site for users to follow.
What do you want to do?
Set up the Review and Approval Workflow
Set up the Object Validation Workflow
Set up the Review Page Workflow
Review and approve, or reject, data changes
Confirm you have reviewed an Object Pages
See who has reviewed a page you shared
