erwin Evolve 2024.0.0 - Release Notes

Monitoring Service



Monitoring Service


A new service is being included with Evolve to monitor the Web Platform, and other Evolve systems (e.g. Data Transformation). This is capable of reporting on a number of identifiable issues, by daily summary email, or by urgent immediate email. It is also possible for it to take remedial action, in some circumstances.



Identifying specific log message content

Testing http responses

Extensible configuration to allow the addition of new issue identification

It is also capable of some remedial actions such as:

IIS Reset

App Pool Recycle

Execute batch job

List of enhancements and fixes

List of enhancements and fixes

2024.0.0 Major Release (11.14.0.114/11.14.0.120)

RFA / Issue

Description

Enhancement

Web Modeler: Add Existing Objects Panel in Webmodeler

Enhancement

Web Modeler: Backup and Restore draft diagrams to the Model

Enhancement

Web – Built-in many of the Services Group’s custom features

Enhancement

Desktop - Model export now uses compression (use the command line if you wish to export without compression)

Enhancement

Tools - Global Search Validator tool checks and fixes issues in the search indexes

Enhancement

Tools - Added a Monitoring Service to report on and fix health issues in Evolve

BUG

Webmodeler – Fixed issues moving contained objects

BUG

Web – Fixed issue adding associations to an editable popout

BUG

Webmodeler [02413169] - When using an object with quote or slash, on publishing webmodeler no longer adds more characters

BUG

Webmodeler [2140543] - Published diagrams now correctly hide display connector names

BUG

Web [02324513] < > Brackets when used in the desktop tool to name objects, now get displayed correctly in Evolve HTML5 Diagrams and in properties

BUG

Web [5071074] - Duration and Frequency datatypes now display correctly in Evolve

BUG

Web [02376126] - Iteration groups now show their name in HTML 5 diagrams

BUG

Webmodeler [02359816] – Fixed issue where creating same-type to same-type associations in Webmodeler would create duplicate associations

BUG

Webmodeler [02379684] - Slim Arrowhead now shows correctly in Webmodeler

BUG

Web [2295807] -Fixed display of primary and non primary attributes in erwin evolve

BUG

Desktop – Fixed issue where Model Explorer was unable to clear date fields

BUG

Web – Fixed intermittent issue where an expired token could cause evolve to not allow users to login

BUG

Web [02452029] – Improved performance, when a site has more than 20000 users. Login to evolve is now improved for a user’s first time logon

BUG

Web [02379033, 02413160] – Fixed issue where Evolve Diagram Designer could duplicate filters when opening them

BUG

Web – Fixed Loading child nodes... it could get stuck on editing a diagram designer diagram

Enhancement

Webmodeler – Added some missing shapes types to Webmodeler

BUG

Webmodeler - Preview of Diagrams is sometimes not showing in Drafts Manager Page

BUG

Webmodeler – Fixed an issue where the Diagrammer Service become unresponsive

BUG

Web - TinyMCE upgrade issues addressed

BUG

Web – Fixed issue where Advanced Workflow form properties were not displayed

BUG

Web - Setting lookups as disable now works correctly in Advanced Workflow

BUG

Web – Fixed issue where Pivot Tables and Network diagrams wouldn’t load

BUG

Web - Word Icon now shows correctly in “Coffeemaker” component

BUG

Web - Advanced Workflow no longer needs 2 clicks to show the drop down for types

BUG

Webmodeler - Publishing a draft diagram no longer leaves behind a detached draft diagram

BUG

Web - DocX document generator now functions correctly

BUG

Web - Prevented common.json being removed on uninstall

BUG

Webmodeler - Allow the use of <> brackets in Webmodeler shape names

Security

General Package and Component Updates

Security

MongoDB upgraded and moved into the Evolve install folder



Product Licensing

Product Licensing

As of the 2023.1.0 release of erwin Evolve Suite / Web Platform, licensing is migrating to the standard Quest Inc. license system. During the migration, there will be a grace period, whereby existing customers can continue to use their existing Casewise licenses. Quest do not intend to force customers onto the new licensing and will work with them to ensure a successful migration.

If you are considering upgrading to 2024, you should not be concerned with the new licensing system, as its usage is optional now.

Activating your Quest License

The process for activating an erwin Evolve license is:

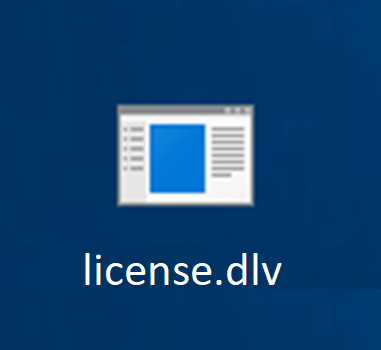

1.Support will provide you with one or more license files per Server machine that requires licensing.
For example:

2.Having installed the software, copy this file to your server's desktop.

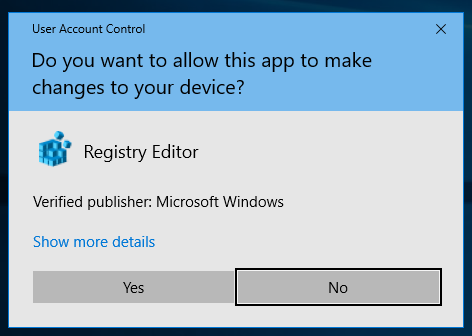

3.Double-click on the file. You will be presented with a warning:

4.Click Yes to allow the tool to change the registry.

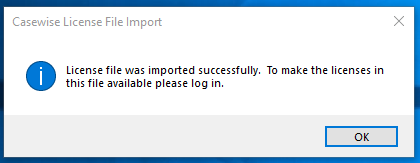

5.The software now has the purchased licenses activated on the server. To verify this, load the License Manager.

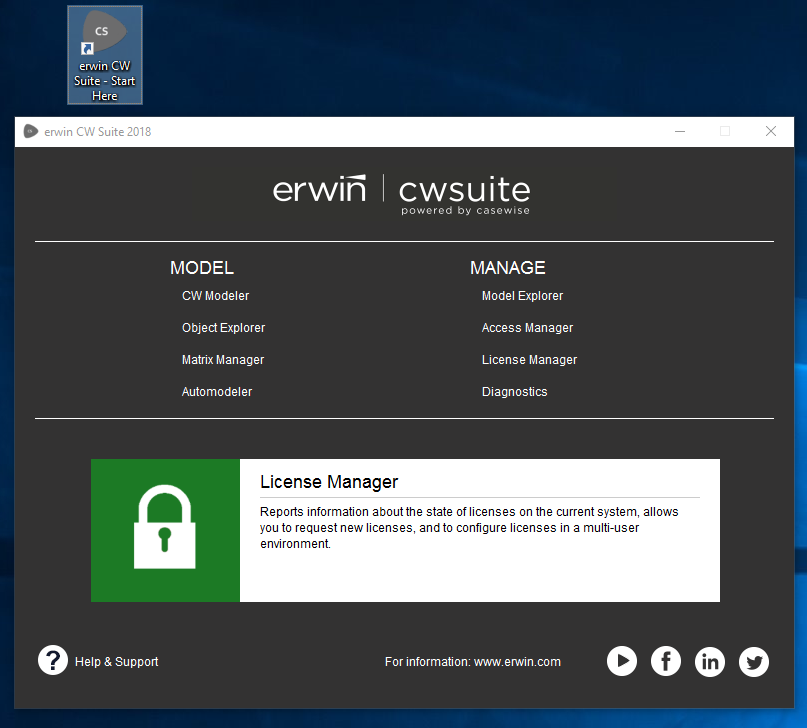

Open erwin Evolve suite - Start Here.

6.Click License Manager, and login.

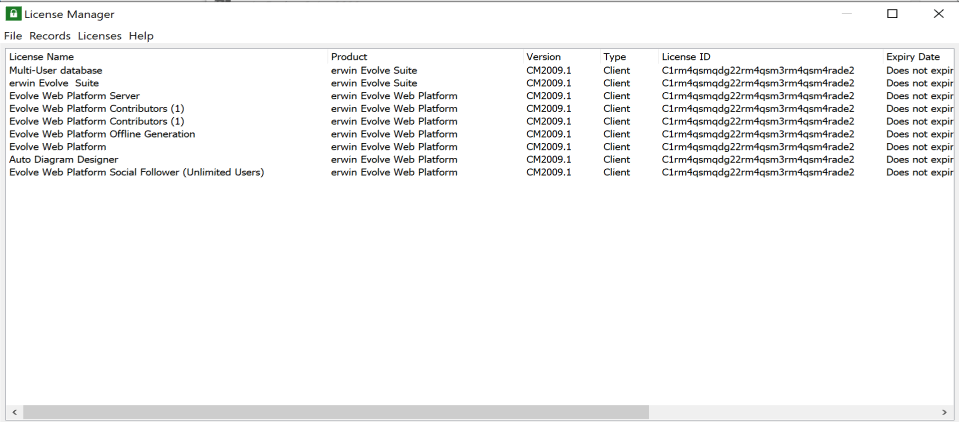

7.License Manager will show the license code, and various other attributes.

Returning your erwin License

If you need to move the license from one server to another, you must contact support, who will assist with the migration.
