erwin Evolve 2024.0.0 - General

Client Machines

Client Machines

Firefox and Google Chrome

Firefox and Google Chrome users have to enter their username and password once, but can choose to have the details remembered to avoid entering them again.

Appendix G – upgrading YOUR DATABASE FOR evolve 2024.0 & Evolve Suite 2024.0

These instructions explain how to update your database for 2024.0.0 database.

Before beginning the upgrade process you must make sure that your database user has DBA permissions.

Step 1 - Uninstall Evolve & Evolve Suite

1.It is recommended that you back up your database and any customisations that you have made to Evolve before commencing with the database upgrade.

2.Uninstall any versions of Evolve and Evolve Suite currently installed on your system.

Step 2 - Install Evolve Suite 2024.x

1.Log in to your Quest account and download Evolve Suite 2024.x

2.Install Evolve Suite 2024.x following the information detailed in the installation guide.

Step 3 - Upgrade the Database

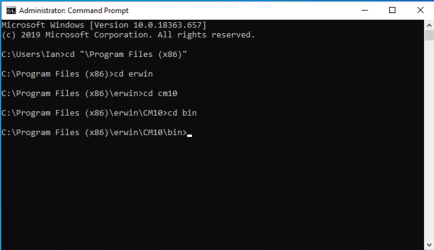

1.Run Command Prompt as an administrator and navigate to the 'bin' directory where Evolve Suite is installed.
Text  Description automatically generated

2.Type the following: ValidateRepository.exe -connection:YourConnectionName -username:YourUserName password:YourPassword -upgradedb

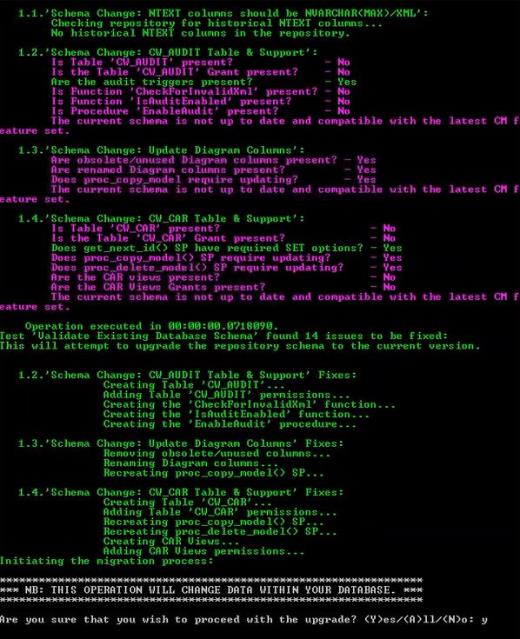

The Validate Repository tool will do various checks and will display the results of these checks as well as a prompt to commence the upgrade.

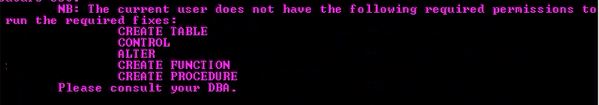

If your user does not have DBA permissions you will see the following message:



If you see this message you should not proceed with the database upgrade.

Additional Step if upgrading from an earlier version of 2024:

The Audit trail recording system, and Global Search system in the later versions of 2024 require additional, minor changes to the database. These changes do not affect the desktop product, so there is no requirement to upgrade Evolve Suite on machines, other than the Evolve Server (unless you wish to do so).



Using ValidateRepository run the following command:

ValidateRepository.exe -connection:YourConnectionName -username:YourUserName password:YourPassword -applyfixes

 Text  Description automatically generated



When prompted to apply fixes, review the changes (there may be other faults that need fixing, check you are happy
with them) then press 'a' for all.

To install Evolve 2024.0.0+:

Step 4 - Install Evolve 2024.0.0

1.Install Evolve 2024.0.0+, following the information detailed in the installation guide.

2.Restore any customisations that you had backed up prior to uninstalling Evolve.

Appendix H - Upgrading CoffeeMaker

Upgrading from 2022.0.0 or later

After uninstalling the older version, follow these steps:

1.Restart the machine.

2.Go to C:\erwin\Evolve\Site\bin\webDesigner\custom\Marketplace\libs.

3.Delete the Custom Layout Configuration and Utils folders.

4.Go to C:\erwin\Evolve\Site\bin\webDesigner\custom\Marketplace\libs\Utils\src and check whether the “cwPdf.js” and “utils.js” files are present.

oIf yes, then delete the Utils folder from the following location:
C:\erwin\Evolve\Site\bin\webDesigner\custom\Marketplace\libs\.

oElse, delete these files from the following location:
'C:\erwin\Evolve\Site\bin\webDesigner\custom\Marketplace\libs\Utils\src'.

5.Go to C:\erwin\Evolve\Site\bin\webDesigner\js\external and delete the 'async' and 'ASyncLayoutLoader' folders.

6.Go to 'C:\erwin\Evolve\Site\bin\webDesigner\libs\modules' and delete 'bootstrap', 'bootstrap-select', 'docxTemplater', and 'jspdf'.

7.Go to 'C:\erwin\Evolve\Data\Common\html' and delete 'coffee', 'customDisplayStringSimulator', 'cwGrid', 'cwHtml5DiagramFilter', 'cwLayoutBackup', 'cwLayoutcwCount', 'cwWorkflow', and 'homePage' (If the html folder is empty after deleting these, then delete the html folder as well.).

8.Go to 'C:\erwin\Evolve\Site\bin\webDesigner\themes' and delete the 'theme_erwin.css', 'theme_erwin. less', 'theme_nextGen.css,’ and ‘theme_nextGen.less' files.

9.Install the new version.

10.Click Update Meta Model & Themes.

11.Click Save.

12.Click Dynamic Site.

Upgrading to 2024.0.0

After uninstalling the older version, follow these steps:

1.Restart the machine.

2.Go to C:\erwin\Evolve and delete the 'CWFileHandling' and 'CWObjectExportImport' folders.

3.Go to C:\erwin\Evolve\Site\bin\webDesigner\custom\Marketplace\libs.

4.Delete 'Custom Layout Configuration’.

5.Go to C:\erwin\Evolve\Site\bin\webDesigner\custom\Marketplace\libs\Utils\src and check whether the “cwPdf.js” and “utils.js” files are present.

oIf yes, then delete the Utils folder from the following location:
C:\erwin\Evolve\Site\bin\webDesigner\custom\Marketplace\libs\.

oElse, delete these files from fromt he following location:
'C:\erwin\Evolve\Site\bin\webDesigner\custom\Marketplace\libs\Utils\src'.

6.Go to 'C:\erwin\Evolve\Site\bin\webDesigner\js\external' and delete the 'async' and 'ASyncLayoutLoader', and ‘tinyColors’ folders.

7.Go to 'C:\erwin\Evolve\Site\bin\webDesigner\libs\modules' and delete 'bootstrap', 'bootstrap-select', 'docxTemplater', 'jspdf', and ‘vis’.

8.Go to 'C:\erwin\Evolve\Data\Common\html' and delete 'coffee', 'customDisplayStringSimulator', 'cwGrid', 'cwHtml5DiagramFilter', 'cwLayoutBackup', 'cwLayoutcwCount', 'cwWorkflow', abd 'homePage' (If the html folder is empty after deleting these, then delete the html folder as well.).

9.Go to 'C:\erwin\Evolve\Site\bin\webDesigner\themes' and delete the 'theme_erwin.css', 'theme_erwin. less', 'theme_nextGen.css,’ and ‘theme_nextGen.less' files.

Next, to install and configure the new version, follow these steps:

1.Install new version.

2.Start Evolve Designer.

3.Click a model. For example, EA Foundation - Sample Model.

4.Click Site.

5.Click Update Meta Model & Themes.

A new object type, “Custom Layout Configuration”, is created in the Model Explorer.

If Custom Layout Configuration is not visible in the Model Explorer, click Show or Hide object types in Evolve Designer. (If CW object types are already visible then hide and then unhide them.)

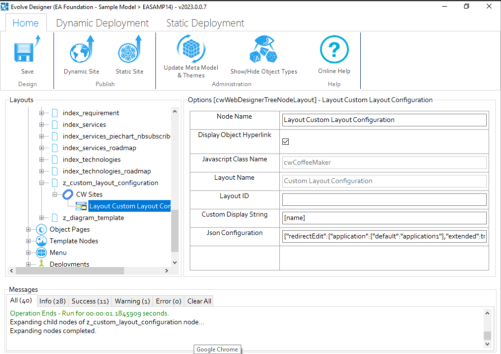

6.Expand Site > Index Pages > z_custom_layout_configuration > CW Sites.

7.Click Layout Custom Layout Configuration.

8.Copy the JSON text mentioned in the Jon Configuration field.

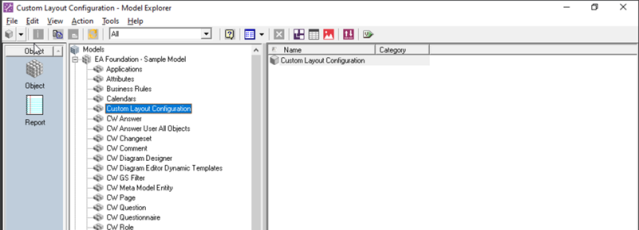

9.Start erwin Evolve Suite and click Model Explorer.

10.Expand the model. For example, EA Foundation – Sample Model.

11.Click Custom Layout Configuration.

Clicking Custom Layout Configuration opens an object “Custom Layout Configuration” in the right pane.

12.Double-click the Custom Layout Configuration object.

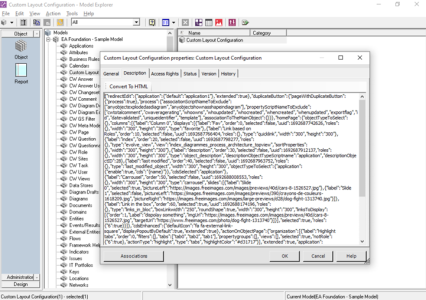

A Custom Layout Configuration properties: Custom Layout Configuration dialog box opens.

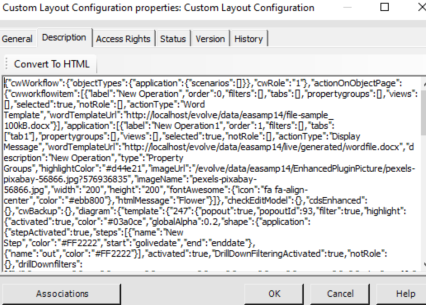

13.Click Description.

14.Paste the copied JSON text in the Description field.

15.Click OK.

16.Restart Evolve Designer.

You can now delete the index page ‘z_custom_layout_configuration’.

Icon

Description automatically generated

Before deleting this index page, ensure that you copy or take backup of the Json file.

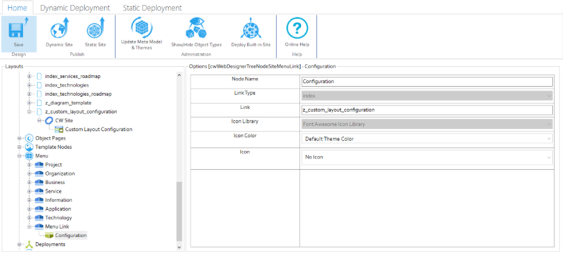

17.Unlink the deleted index page from the Menu.

18.Click Save.

19.Click Dynamic Site.
