Diagnostic Manager 5.0.1 - User Guide

Copyright Welcome to Metalogix Diagnostic Manager Getting Started The Diagnostic Manager Home Page Configuring your Deployment Using Alerts Viewing and Reporting on the Performance of SharePoint Farms, Server Group, and Office 365 Tenants Monitoring SharePoint and Web Pages Viewing the Health of a Farm Monitoring StoragePoint Timer Job Performance Viewing ULS Log Entries for a Farm Viewing the Status of Data Collection Jobs Viewing a Content Summary Using the Web Dashboard to View Performance Data from Within a SharePoint Site Reporting Managing Metalogix Diagnostic Manager Setting the Collection Service Options About Us

Disabling Data Collection for a Monitored Page

If you disable data collection for a monitored page, the Collection Service no longer retrieves information about the page.

info

NOTE: When you disable data collection for a page, any historical data is retained in the Repository.  You can continue to use the Management Console to review any stored data about the page, but no new data is collected.

To temporarily disable data collection for a page:

1.In the Management Console, double click on the farm which contains the server you wish to disable data collection form.

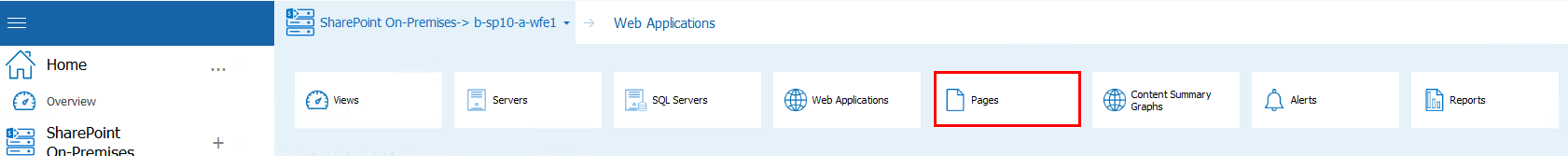

2.Select the farms' name above the view pane, and select Pages from the drop down pane.
disable collection services pages new 1

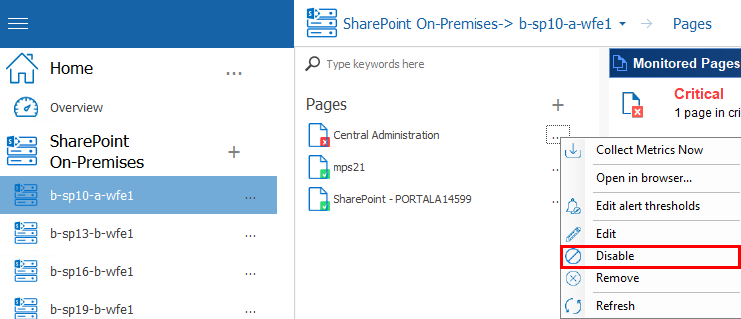

3.Select the (...) next to the page for which you would like to disable data collection, select Disable from the drop down menu.
disable collection services pages new 2

info

NOTE: A disabled page will display in the tree with a Disabled Page icon icon.

To re-enable data collection for a page

1.In the Management Console, double click on the farm which contains the server you wish to disable data collection form.

2.Select the farms' name above the view pane, and select Web Applications from the drop down pane.
disable collection services web applications new 1

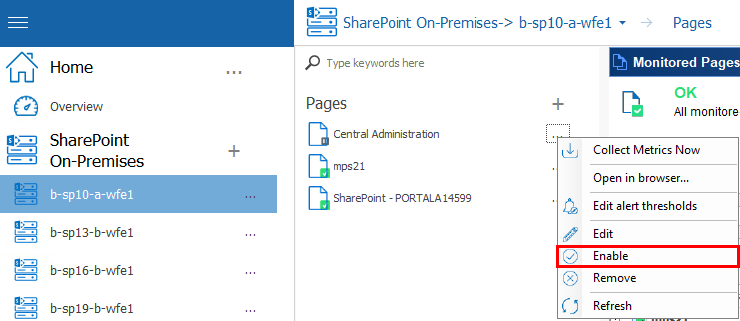

3.Select the (...) next to the web application for which you would like to disable data collection, select Enable from the drop down menu.
disable collection services pages new 3

Setting the Management Console Preferences

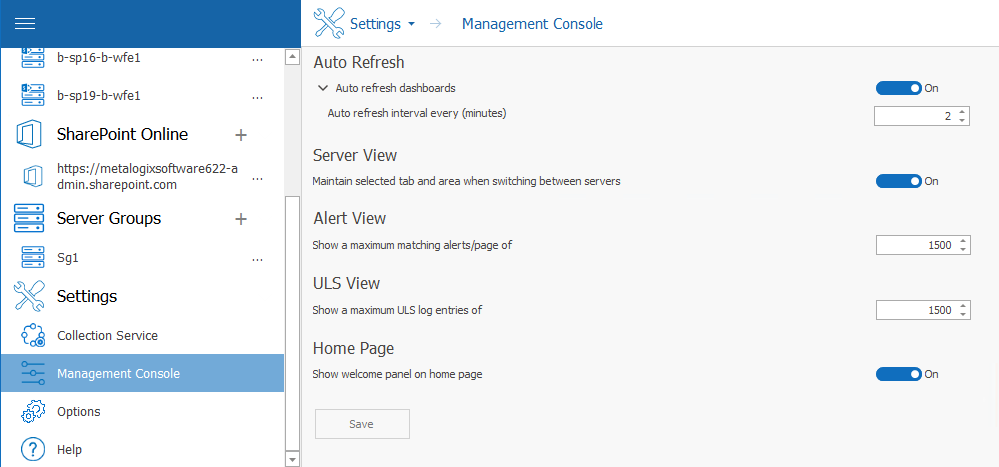

You can make changes to the following Management Console preferences:

Management Console new 2

For the following preference ...

You can specify ...

Auto Refresh

whether to disable or enable the dashboard auto refresh for a specific time interval.

Server View

whether to maintain the selected tab and area when switching between servers.

Alert View

the maximum number of alerts to display per page.

ULS View

the maximum number of ULS log entries to display in the list.

Home Page

whether to display or hide the Welcome panel on the Home page.

To set the Management Console preferences:

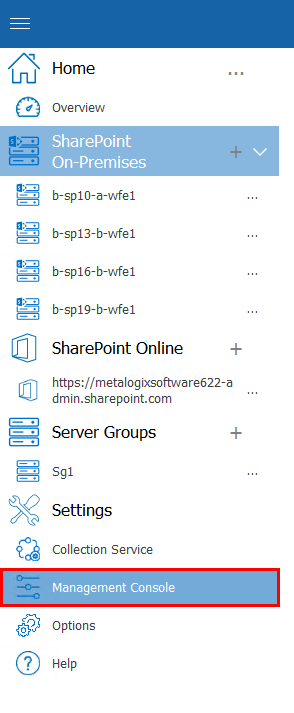

1From the Management Console left hand panel, choose Management Console.
Management Console new 1

2In the Management Console Preferences dialog box, make any desired changes to the options.

3Click Save to close the dialog box and save the changes.



Moving your Repository to a Different SQL Server Instance

You can move your Metalogix Diagnostic Manager repository database from one SQL Server instance to another if necessary. It is important that you first stop the Collection Service before migrating the data between the instances.

To move your repository from one SQL Server instance to another

1Stop the Collection Service.

2Use the following steps to move the database:

a)Detach from the source SQL Server instance.

b)Copy the database to the target SQL Server instance.

c)Attach the database in the target SQL Server instance.

3Update the CollectionService.exe.config file, usually located at c:\Program Files (x86)\\Metalogix Diagnostic Manager\CollectionService\. The value RepositoryHost specifies the name of the SQL Server instance hosting the repository.

4Restart the Collection Service.



Setting the Collection Service Options

Metalogix Diagnostic Manager lets you specify how the Collection Service behaves. You can also view information about the Collection Server service host, version, and other configuration information.

info

NOTE: The time at which a job is scheduled to run reflects the local time of the server on which the Collection Service was installed.

To access the Collection Service Options dialog:

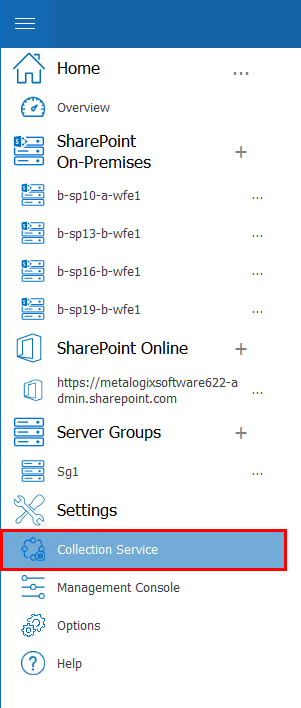

From the Management Console choose Collection Service Options, found within the Settings section.
Collection Service new 1
