ControlPoint 8.9 - for Microsoft 365 User Guide

Monitoring Scheduled Jobs

The Schedule Monitor lets you view the status of scheduled jobs over a specified date range.  From the Schedule Monitor you can link to pages that let you:

·view/edit the details of a scheduled job

·delete scheduled jobs

·link to detailed run history of a job

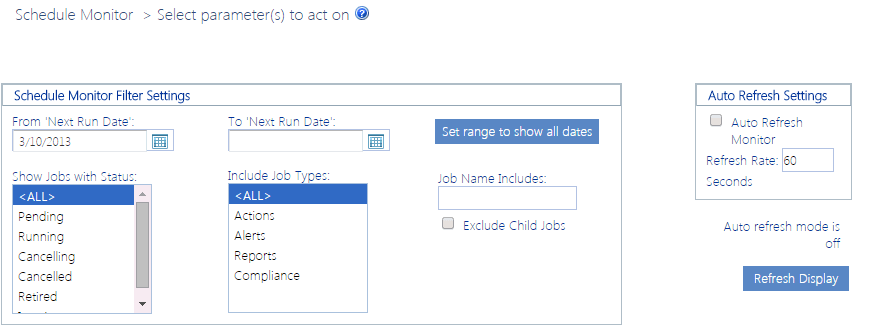

To access the Schedule Monitor:

1From the Manage ControlPoint panel, choose Scheduled Management and Logging > Schedule Monitor.

By default, the Schedule Monitor grid displays jobs that are scheduled to run within the next seven days.

2If you want to change the default date range, do one of the following:

§To include jobs within a specified date range:

a)Enter or select a From "Next Run Date" and To "Next Run Date"

b)Click [Refresh Display].

§To include all jobs regardless of the run date, click [Set range to show all dates].

NOTE: Next Run Date identifies:

§the next date/time a Pending job is scheduled to run

§the last date/time a Retired or Inactive job ran

§the start date/time that an in-process job started running.

3Select one or more Status values from the list box.  Use the information in the table below for guidance.

NOTE:  You can select multiple status values using the [CTRL] or [SHIFT] in the conventional manner.  If you want to view all scheduled jobs for the specified date range, select All.

4If you want to further filter your results, use the information in the following below for guidance.

The Schedule Monitor displays the following information:

·Job Name

·Job Type

·an indication of whether the job is Active (checked) or inactive (unchecked)

·Schedule Status (Pending, Running, Retired, or Inactive)

·Scheduled Start date and time

·the Schedule End date and time which, for recurring jobs, displays the last date and time that the job is scheduled to run.

NOTE:  For one-time jobs, the Schedule End date and time (which displays as an hour later than the Schedule Start) has no significance.

·a checkbox indicating whether the job is one-time (unchecked) or Recurring (checked)

·for recurring jobs, the Interval and Interval Type (Hour, Day, Week or Month)

·Last Run Date and time

·Last Run Status (Complete, Failed, Started, Cancelling, or Cancelled)

·Next Run Date, which identifies:

§the next date/time a Pending job is scheduled to run

§the last date/time a Retired or Inactive job ran

§the start date/time that an in-process job started running.

·the User who scheduled the job.

·an indication of whether or not the scheduled job was created with the Run by hierarchy option

·if the job is an instance of a ControlPoint Governance Policy, the name of the Policy Instance.

You can:

·sort by clicking on a column header

·change the order of columns by dragging and dropping.

From the Schedule Monitor you can:

·set the Schedule Monitor grid to Auto Refresh

·open a job for viewing/editing

·view a job's run history

·cancel or delete one or more jobs

Viewing/Editing a Scheduled Job

From the Schedule Monitor, you can access a scheduled job whose details you want to view or edit.

To access a scheduled job's details:

From the Schedule Monitor, click the job's Edit link.

The job opens in a separate browser window.

To edit the job:

1Modify the appropriate fields within the Schedule or Enforce Policy section.

2To save changes, click [Update].

Viewing a Scheduled Job's History

From the Schedule Monitor, you can view the run history of a scheduled job.  In the case of scheduled actions (including alerts), you can generate a ControlPoint Task Audit to view more detail about the job.

To view the history of a scheduled job:

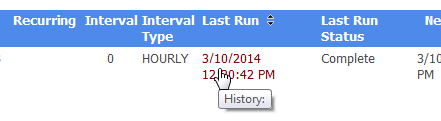

·From the Schedule Monitor or Scheduled Jobs Report, click the job's Last Run link.

·From a scheduled job's detail page, click the [View History] button.

The Schedule History includes the following information:

·Run Start date and time

·Run End date and time

·process Status (Started, Completed, or Failed)

·in the case of a Failed job, a Message citing the reason for the failure.

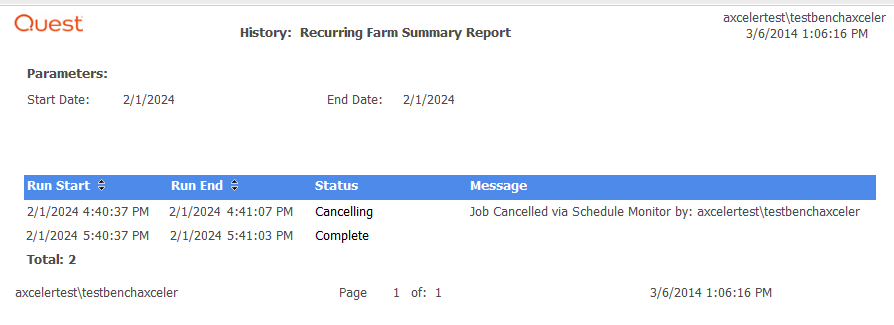

As shown in the example below, a separate entry exists for each run of a recurring job.  You can sort by either Run Start or Run End date by clicking the up/down arrows in the column header.

To view a ControlPoint Task Audit for a completed action:

Click the link (Completed or Failed) in the Status column.

See also The ControlPoint Task Audit.

NOTE:  This link is valid for actions only (not analysis jobs)

Canceling or Deleting a Scheduled Job

From the Schedule Monitor you can:

·cancel a running instance of a scheduled job

OR

·completely delete one or more scheduled jobs.

NOTE:  If you delete a job that has already run, any history associated with the job will also be deleted.

REMINDER:  Delete and Cancel options are disabled if Auto Refresh is enabled.

To stop a running instance of a scheduled job:

NOTE:  You can only stop instances of jobs that are currently running, and this action does not delete either the job itself or any future instances of a recurring job.

1In the In the Select column, check the box beside each running job instance you want to stop.*

2Click [Stop Selected].

To delete one or more scheduled jobs:

1In the Select column, check the box beside each job you want to delete.*

2Click [Delete Selected].

You will be prompted to confirm the deletion before the operation is carried out.

To delete all scheduled jobs:

1Click [Select All].

2Click [Delete Selected].

You will be prompted to confirm the deletion before the operation is carried out.

NOTE:  If you want to de-select currently selected jobs, click [Reset].
