vRanger 7.8 - Integration Guide for NetVault SmartDisk

Getting started Understanding NetVault SmartDisk Planning your NetVault SmartDisk deployment Installing vRanger Installing NetVault SmartDisk Configuring NetVault SmartDisk Monitoring NetVault SmartDisk About us

NetVault SmartDisk overview

Previous Next


Getting started > Product overviews > NetVault SmartDisk overview
The NetVault SmartDisk disk-based data-deduplication option reduces storage costs with its powerful byte-level, variable-block-based software deduplication, which packs up to 12 times more protected data into the same storage area for up to a 90% reduction in storage footprint. Hardware costs are reduced by using existing storage infrastructure instead of requiring specific drives or appliances. Seamless integration with vRanger speeds deployment while simplified ease-of-use reduces the level of storage expertise required to perform deduplicated disk-based backups.
To shrink backup windows with no additional affect on hosts or protected servers, you can schedule the NetVault SmartDisk post-process deduplication option outside the backup window.
For more information, see Understanding NetVault SmartDisk.
NetVault SmartDisk licensing
The NetVault SmartDisk - vRanger Edition is licensed on a per-instance basis. An “instance” is defined as an individual server installation of NetVault SmartDisk. Each NetVault SmartDisk Instance requires its own permanent license key, which is tied to a NetVault SmartDisk Machine ID that is unique to each NetVault SmartDisk Instance. You may configure multiple repositories per instance.


IMPORTANT: NetVault SmartDisk is only supported when used with Quest vRanger.
Size limits on NetVault SmartDisk Instances
Each instance is limited in the amount of deduplicated data that it can support:
•
If you use a 32-bit platform, you are limited to a Chunk Store of 5 TB of unique data.
•
If you use a 64-bit platform, you are limited to a Chunk Store of 15 TB of unique data.
For more information, see Unique Data Size > OS Bit Limit.

Downloading the software

Previous Next


Getting started > Downloading the software
Evaluation versions of vRanger and NetVault SmartDisk are available from the vRanger page on the Quest website. Evaluation versions are full applications limited only by licensing.
To download an evaluation copy of vRanger:
1
From an internet-connected PC, access http://quest.com/products/vranger/.
2
Click Download Free Trial.
3
Register or log in as appropriate.
4
Accept the License Agreement, and click Submit.
5
Select vRanger, and save the file to the desired location.
To download an evaluation copy of NetVault SmartDisk:
1
From an internet-connected PC, access http://quest.com/products/netvault-backup/.
2
Click Download Free Trial.
3
Register or log in as appropriate.
4
Accept the License Agreement, and click Submit.
5
Select NetVault SmartDisk, and save the file to the desired location.


Understanding NetVault SmartDisk

Previous Next


NetVault SmartDisk architecture: an overview

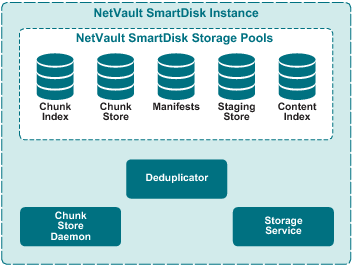

The basic components of a NetVault SmartDisk Instance are shown in the following image, and described in the topics that follow.
Figure 1. Components

NetVault SmartDisk architecture: an overview

Previous Next


Understanding NetVault SmartDisk
Understanding NetVault SmartDisk
The basic components of a NetVault SmartDisk Instance are shown in the following image, and described in the topics that follow.
Figure 1. Components
