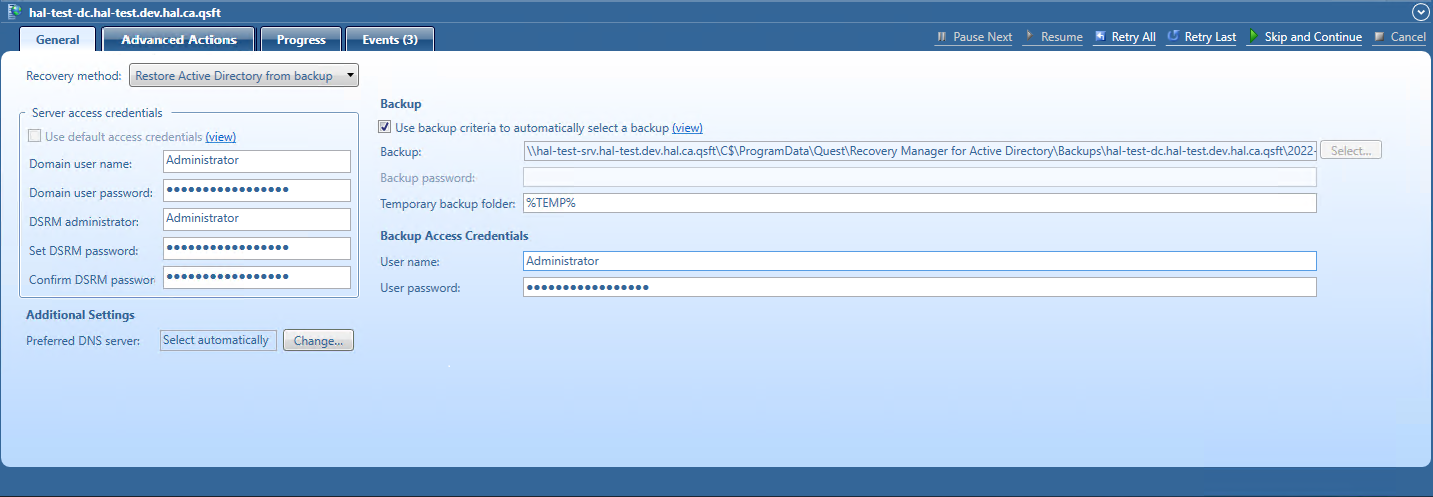

Restore Active Directory from backup method

The Restore Active Directory® from backup method restores the domain controller from the backup you specified.

For more information on backup selection methods, see Selecting backups for recovery.

For details about recovery method settings, see Domain controller recovery settings and progress.

During recovery, Recovery Manager for Active Directory uses custom Internet Protocol security (IPSec) rules to isolate the domain controllers for which you selected this recovery method. For more information, see How does Recovery Manager for Active Directory isolate domain controllers during forest recovery?

Resources/Images/restore_from_backup.png

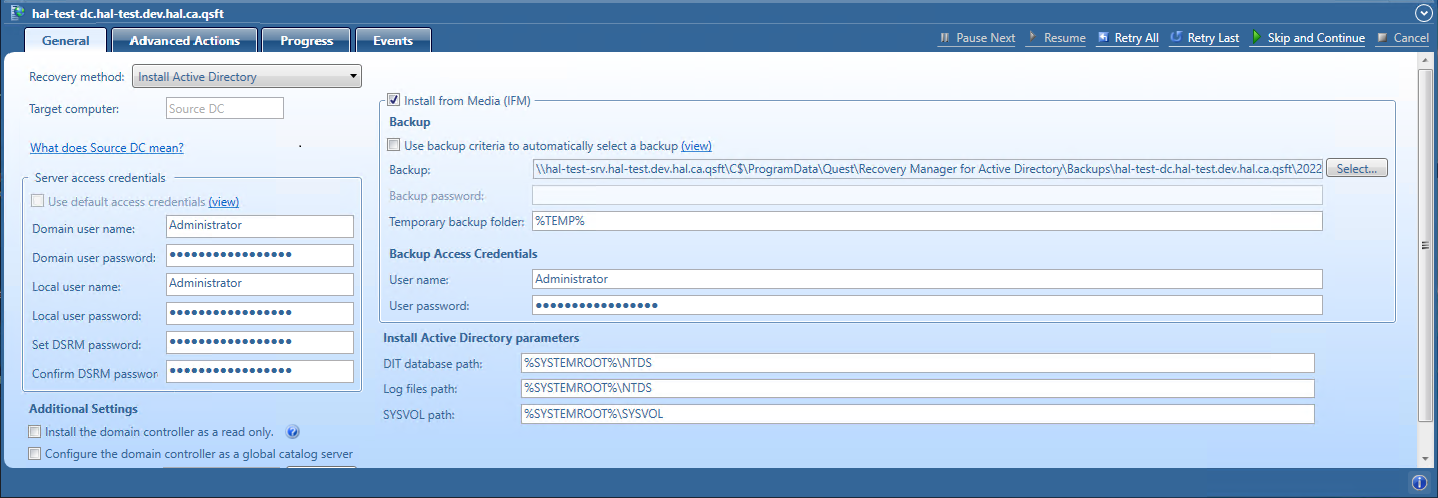

Install Active Directory method

NOTE

Note that you must install Forest Recovery Agent on the target server before you start using this recovery method. For that, on the menu bar, select Tools | Manage | Forest Recovery Agent or DCs. For more details, see Managing Forest Recovery Agent.

The Install Active Directory recovery method is used to install Active Directory on a clean machine. For domain controllers running Windows Server® 2008 or earlier, this option uses the Dcpromo.exe tool. For Windows Server® 2012-based domain controllers, this option uses the Windows PowerShell® cmdlets Install- ADDSDomainController.

You can also install Active Directory on the target machine by selecting the Install from Media (IFM) option. This option lets you restore Active Directory of a domain controller using a media file created from the Active Directory® backup. This recovery method can be applied only to servers with the pre-installed operating system.

Note: Make sure that a read-only domain controller (RODC) can be installed using a backup created from a read-only DC, or a writable DC can be installed using a backup created from a writable DC.

The target server should be compliant with the following requirements:

  • Operating system version should be equal to the original DC operating system.

  • Operating system should follow organization security best practices (e.g. have latest updates, security software) since this operating system will be used to run the Active Directory Domain services after the restore.

  • The physical disks should have enough free space to host the Active Directory® data after recovery.

For details about recovery method settings, see Domain controller recovery settings and progress.

Resources/Images/InstallAD.png

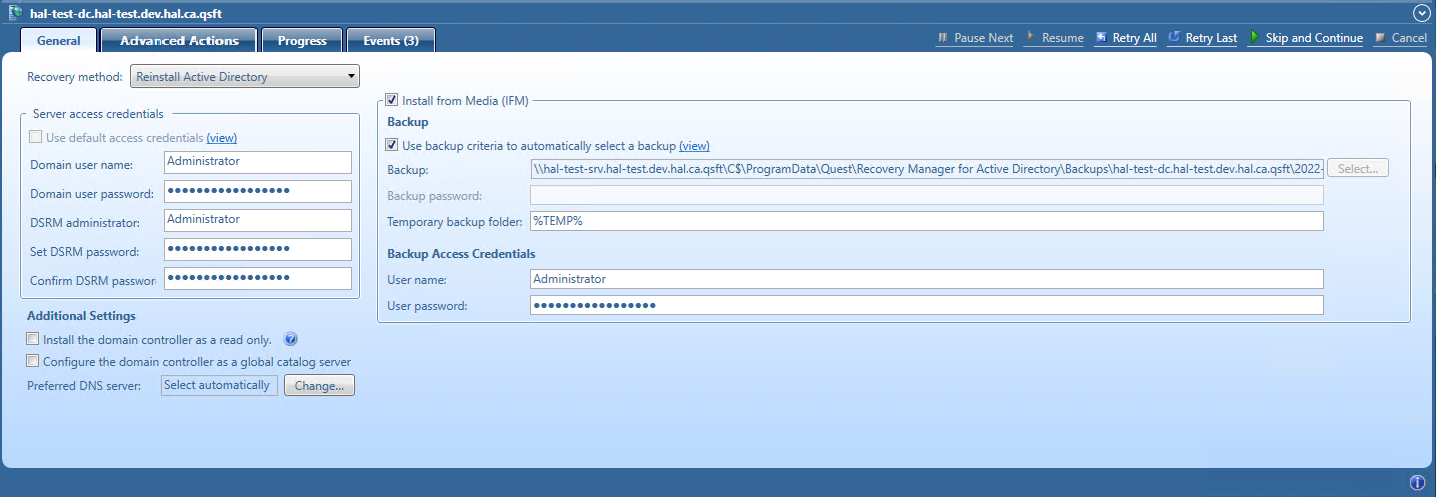

Reinstall Active Directory method

For domain controllers running Windows Server® 2008 R2, this step uses the Dcpromo.exe tool.

For Windows Server® 2012-based domain controllers, this step uses the Windows PowerShell cmdlets Install- ADDSDomainController and Uninstall-ADDSDomainController.

Uninstalls Active Directory and then installs it again by selecting the Install from Media (IFM) option.
The selected servers will be uninstalled and then promoted to Domain Controllers using a media file created from Active Directory® backup.

After the Active Directory reinstallation is complete, the domain controller replicates Active Directory® data from other domain controllers that were restored from backups in the recovery project.

Note

The Reinstall Active Directory recovery method removes the global catalog by default if it is present on the domain controller being recovered. If you need to reconfigure the global catalog on the domain controller during Active Directory® reinstallation, select the Configure the domain controller as a global catalog server option in the Additional Settings section.

For more details about recovery method settings, see Domain controller recovery settings and progress.

Resources/Images/Reinstall_AD.png

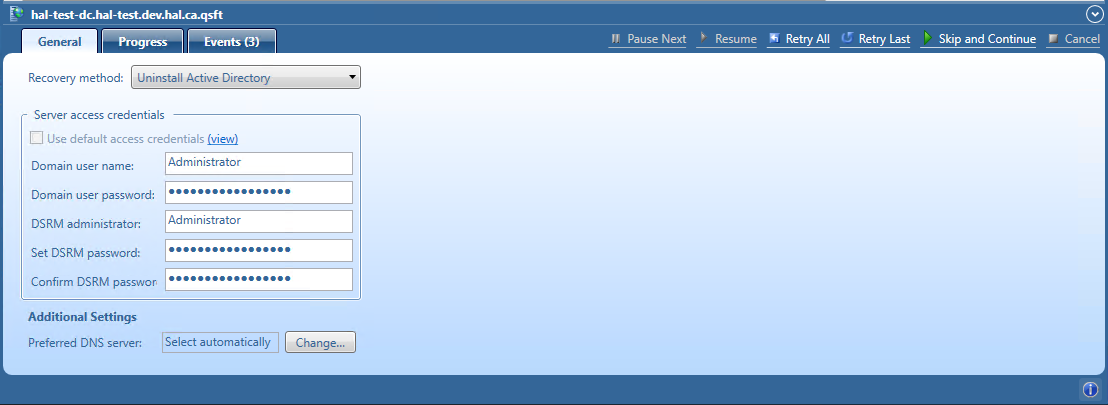

Uninstall Active Directory method

This recovery method removes Active Directory® from the domain controller and then demotes it to a member server in the domain. Domain controller’s metadata is completely removed from Active Directory®.

Note

When you use this method, the local Administrator password on the target domain controller is reset to the value you specify in the Set DSRM password and Confirm DSRM password text boxes in the Forest Recovery Console.

For details about recovery method settings, see Domain controller recovery settings and progress.

Resources/Images/Uninstal_AD.png
