Quest VROOM 1.1 - User Guide

Rapid Recovery Infrastructure Tab

The Rapid Recovery Infrastructure view of the Protection dashboard shows the infrastructure of the service scoped Rapid Recovery Core servers. The Rapid Recovery Infrastructure view includes the following two tables:

•
Core Servers: For more information, see Core Servers table.
•
Rapid Recovery Agents: For more information, see Rapid Recovery Agents table.

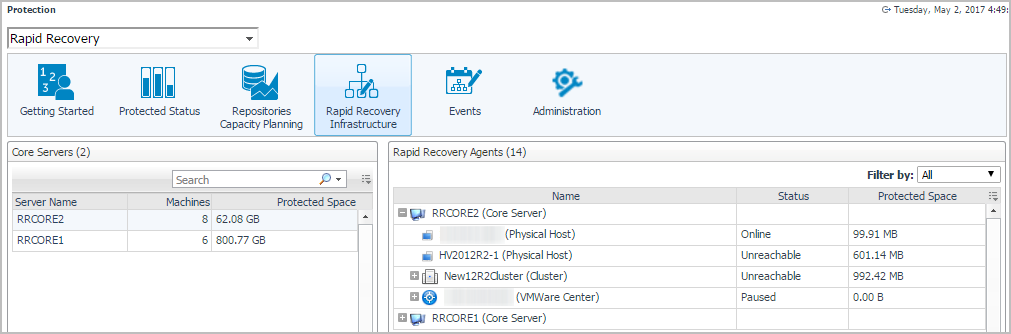

Figure 7. Rapid Recovery Infrastructure view

To access the Rapid Recovery Infrastructure view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Rapid Recovery Infrastructure tab.
The Rapid Recovery Infrastructure view appears at the bottom of the Protection dashboard.

Core Servers table

The Core Servers table shows a list of core servers that exist in the monitored Rapid Recovery environment.

Table 4. Description of the Core Servers table
Data displayed
•
Server Name. Shows the name of Rapid Recovery Core.

•
Machines. Shows the amount of machines in this Rapid Recovery Core.

•
Protected Spaces. Indicates the amount of storage space protected by this Rapid Recovery Core.
Where to go next

Drill down on:


•
Server Name. Click this column to show links to Infrastructure Health and Rapid Recovery Core Server.

Rapid Recovery Agents table

The Rapid Recovery Agents table shows a list of agents that exist in the monitored Rapid Recovery environment.



Table 5. Description of the Rapid Recovery Agents table
Data displayed
•
Name. Shows the name of Rapid Recovery Core Server or cluster.

•
Status. Indicates whether the machine connectivity is Online, Failed, Paused, or Unreachable.

•
Protected Space. Indicates the amount of protected storage space.



Events Tab

The Events view of the Protection dashboard shows events for the Core, a specific protected or replicated machine in the monitored Rapid Recovery environment. The Events view includes the following three tabs:

•
Tasks tab: A task is an event related to a job. A job is a process that the Rapid Recovery Core must perform. Each job has a current state, and a start and end time and date. Some tasks are initiated manually or scheduled by the user. Examples include forcing a snapshot, scheduling a backup, or performing a restore from a recovery point. Other tasks are automatic functions, such as running nightly jobs, or performing rollup using the default retention policy.
•
Alerts tab: An alert is a priority event, such as an error, warning, or important informational message. If you request notifications of any specific events, these notifications appear in the Alerts subset.
•
Journal tab: The Journal tab shows a complete list of all logged events (for the Core, or the selected machine, as appropriate). This list is more comprehensive, showing jobs, high priority events, and lower priority events. This category includes passive and non-job events (such as the Core starting successfully, or reporting status from the license portal).

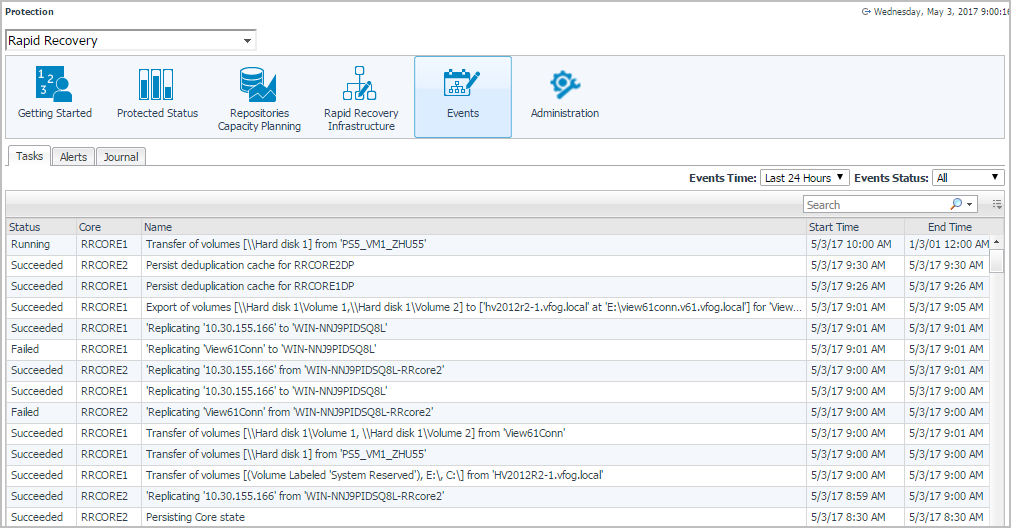

Figure 8. Events view

To access the Events view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Events tab.
The Events view appears at the bottom of the Protection dashboard.
