Monitoring job progress

You can monitor the progress of a job from the Monitor Job page. The page displays the job status, data transfer rate, log messages, and other job details.

To monitor the progress of a backup or restore job:
1
In the Navigation pane, click Job Status.
2
In the list of jobs, select the job, and click Monitor.
3
On the Monitor Job page, you can view the following information:

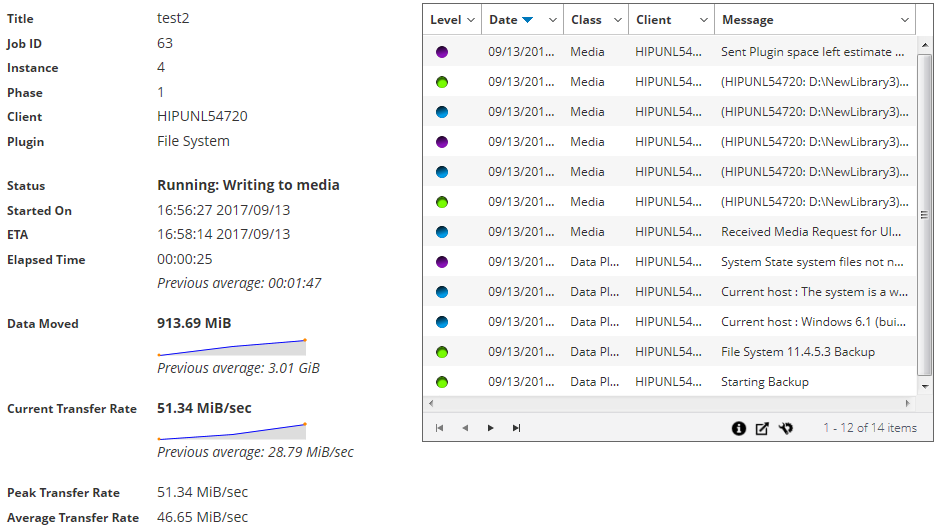

Figure 24. Monitor Job page

•
Job details: This area displays the following details: job title, job ID, instance ID, phase number, client name, plug-in name, status, start time, expected completion time, time elapsed, size of data moved and data transfer chart, current transfer rate and data transfer chart, peak transfer rate, and average transfer rate. The fields: waiting for device, elapsed transfer, estimated transfer remaining, and estimated time remaining are also displayed when running a job using Plug-in for NDMP. The fields: waiting for device and elapsed transfer are also displayed when running a job using Plug-in for SnapMirror to Tape. However, the field ‘expected completion time’ is not displayed when running a job using Plug-in for NDMP and Plug-in for SnapMirror to Tape.
•
Job logs: This area displays the log messages generated for the job. By default, the table is sorted by date and time. You can sort the table by one or more columns, as required. For more information, see Sorting records in NetVault Backup WebUI.
To view the page size setting, sorting order in the table, export the records, or edit table settings, click the icons at the lower- right corner of the table. For more information, see Customizing tables in NetVault Backup WebUI.
4
To view the job definition or abort the job, click the corresponding button in the Operations pane. Alternatively, click a link in the Navigation pane to open a different page.

Clearing job errors and warnings

To clear job errors or warnings:
1
In the Navigation pane, click Job Status.
2
Do one of the following:
•
To clear errors and warnings for all current jobs, set the view to “All activity,” and click Acknowledge.
•
To clear warnings for regular or policy jobs, click the “Warnings” bar in the Regular Jobs or Policies category, and click Acknowledge.
•
To clear errors for failed regular or policy jobs, click the “Errors” bar in the Regular Jobs or Policies category, and click Acknowledge.
•
To clear error or warning for a specific job, select the job in the table, and click Acknowledge.

Removing a job schedule

You can remove a job schedule if you do not want to run the job. When you remove the job schedule, the job definition is not deleted. You can resubmit the job definition to schedule it again.

To remove a job schedule:
1
In the Navigation pane, click Job Status.
2
In the list of jobs, select the job, and click Remove Schedule.
3
In the confirmation dialog box, click OK.
When the schedule is successfully deleted, a message is displayed at the upper-right corner of the NetVault Backup WebUI.

Managing job definitions

MSP administrator, Tenant administrator, and Tenant users can manage their respective jobs.

This section includes the following topics:

•
Viewing job definitions
•
Editing job definitions
•
Deleting job definitions
•
Adding a non-policy job to a policy
