Virtual standalone drives

This section includes the following topics:

•
About virtual standalone drive
•
Creating and adding a virtual standalone drive

About virtual standalone drive

Virtual standalone drives emulate tape drives on disk. Virtual standalone drives are included in NetVault Backup as a licensable option.

With these devices, you have the flexibility to perform quick backups to disks, and during off-peak hours migrate or duplicate the backups to physical devices for off-site storage. The Media Manager does not distinguish between virtual and physical tapes. Therefore, you can use the same process to set up backup policies, including retirement period and rotation schemes. Virtual standalone drives are represented as directories on the disk. The virtual tapes reside as media files in the directory.

Creating and adding a virtual standalone drive

You can use the configuration wizard to create a virtual standalone on the NetVault Backup Server or a SmartClient. When creating the device, you can specify the size of the virtual tape. After the device is created, it is automatically added to the server.

To create and add a Virtual Standalone Drive:
1
In the Navigation pane, click Guided Configuration, and then on the NetVault Configuration Wizard page, click Add Storage Devices.
— or —
In the Navigation pane, click Manage Devices, and then click Add Device.
2
On the Add Storage Devices page, select the Single virtual disk device option, and click Next.
3
In the list of NetVault Backup machines, select the machine on which you want to create the device, and click Next.
4
On the Add Single Virtual Disk Device page, provide the following details.

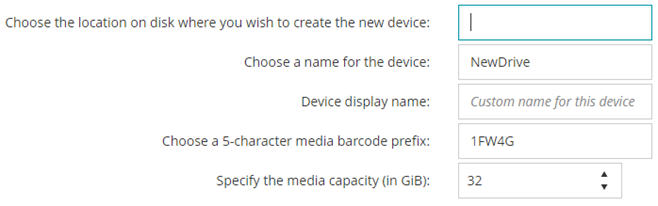

Figure 12. Add Single Virtual Disk Device page

Table 37. Add virtual standalone drive
Option
Description

Choose the location on disk where you wish to create the new device

Specify the location where you want to create the device.

Make sure that the path is already created on the selected machine. NetVault Backup does not create any non-existing directories in the path.

Choose a name for the device

Specify a unique name for the device.

NOTE: The single virtual disk device name does not support non-Latin characters.

Choose a 5 character media barcode prefix

The NetVault Backup Server automatically generates a barcode prefix and assigns it to the virtual tape. If you want to change it, type a unique code for the device.

Specify the media capacity

Type or select the size of the virtual tape. The media size is specified in GiB. Make sure that sufficient space is available on the disk to create the virtual media. The default value is 32GiB.

5
Click Next to create and add the device.
6
After the device is successfully added and initialized, a message is displayed.

Shared Virtual Tape Libraries

This section includes the following topics:

•
About Shared Virtual Tape Libraries
•
SVTL considerations
•
SVTL prerequisites
•
Creating and adding an SVTL
•
Re-adding a previously created SVTL
