Foglight Transaction Recorder 5.6.13 - Recorder User Guide

Overview of Foglight synthetic monitoring Use the Foglight Transaction Recorder Create and upload Foglight Transaction Recorder scripts View Foglight Transaction Recorder results Settings How Do I... Appendix: Best practices Appendix: Troubleshoot the Foglight Transaction Recorder Appendix: API for FTR Timer Usage

External Scripting instructions

External Scripting instructions consist of the following:

•
CitraTest Script
•
FTR Script
•
Generic Command Line
•
Windows Script

CitraTest Script

CitraTest® script launches an external application created with Tevron® CitraTest and reports the results after the application runs and completes.

*
NOTE: The Restore Desktop property is only used when playing back CitraTest scripts.

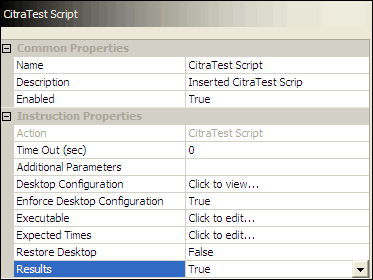

Figure 19. CitraTest Script

Refer to the following for additional information about property descriptions and values:

•
Common Properties
•
Instruction Properties
To insert a CitraTest script into the Foglight Transaction Recorder:
1
Click the Start button from the Windows® task bar.
2
Select Programs > Quest Software > Foglight Transaction Recorder > Foglight Transaction Recorder.
The Foglight Transaction Recorder dialog box appears.
3
Select Edit > Insert > Insert Wizard.
The Insert Wizard appears.
4
Select CitraTest Script.
5
Select the Executable property.
6
Click the Click to Edit button.
The Open dialog box appears.
7
Navigate to the Tevron executable script.
8
Select the script.
9
Click Open.
10
Click Insert.

FTR Script

The FTR Script instruction launches an external Foglight Transaction Recorder script file.

Figure 20. FTR Script

Refer to the following for additional information about property descriptions and values:

•
Common Properties
•
Instruction Properties
To insert a FTR script into the Foglight Transaction Recorder:
1
Click the Start button from the Windows® task bar.
2
Select Programs > Quest Software > Foglight Transaction Recorder > Foglight Transaction Recorder.
The Foglight Transaction Recorder dialog box appears.
3
Select Edit > Insert > Insert Wizard.
The Insert Wizard appears.
4
Select FTR Script.
5
Select the Script instruction property.
6
Click the Click to Edit button.
The Open dialog box appears.
7
Navigate to the FTR executable script.
8
Select the script.
9
Click Open.
10
Click Insert.

Generic Command Line

The Generic Command Line launches an external command line application, and reports the timings after the application completes.

Figure 21. Generic Command Line

Refer to the following for additional information about property descriptions and values:

•
Common Properties
•
Instruction Properties
To insert a Generic Command line into the Foglight Transaction Recorder:
1
Click the Start button from the Windows® task bar.
2
Select Programs > Quest Software > Foglight Transaction Recorder > Foglight Transaction Recorder.
The Foglight Transaction Recorder dialog box appears.
3
Select Edit > Insert > Insert Wizard.
The Insert Wizard appears.
4
Select the Generic Command Line instruction property.
5
Select the Data Directory instruction property.
6
Click the Click to Edit button.
The Open dialog box appears.
7
Navigate to the Generic Command Line.
8
Select the command line.
9
Click Open.
10
Click Insert.
Use Command Line instructions

When using command line instructions, note the following:

•
You can use environment variables in command line arguments.
•
The following checks are performed on command line instructions:
•
If Results is set to True and no results file is found, a Critical alarm is raised in the Foglight Management Server.
•
If Results is to False and a results file is found, a Warning alarm is raised in the Foglight Management Server.
Return codes on Generic Command Line instructions

The following provides examples using generic command line instructions and when running a Powershell script.

Using Generic Command Line instructions

You can use command line instructions.

To run a batch file, use the following commands and parameters:

Executable—cmd.exe

Data Directory—The folder containing the batch file.

Additional Parameters— /C batchname.cmd

Results— False (unless the timer.dll is being called).

Run a Powershell script

To run a Powershell script, use the following commands and parameters:

*
NOTE: Make sure to use the x86 Powershell executable as Folight Transaction Recorder is the 32-bit application, which means the Powershell executable under C:\Windows\syswow64\Windowspowershell\v1.0\powershell.exe should be used for Foglight Transaction Recorder.
NOTE: Make sure to set ExecutionPolicy to Get-ExecutionPolicy. If the output is restricted, set ExecutionPolicy to RemoteSigned using the command “Set-ExecutionPolicy RemoteSigned”. Contact your administrator if you fail to set ExecutionPolicy.

Executable—powershell.exe

Data Directory—The folder containing the Powershell script.

Additional Parameters—.\scriptname.ps1

Results—False (unless the timer.dll is being called).
