Foglight Hybrid Cloud Manager 6.3.0 - User Guide (for AWS environments)

Using Foglight Hybrid Cloud Manager for AWS Monitoring Tab System Info Tab Tags Tab Report Tab Rule Configuration Tab Administration Tab Optimizer Tab Cost Tab Policy Management Tab

Rule Configuration Tab

The Rule Configuration tab of the Cloud Manager dashboard contains links to rules and alarms tasks that you can use to manage AWS rules and alarms.

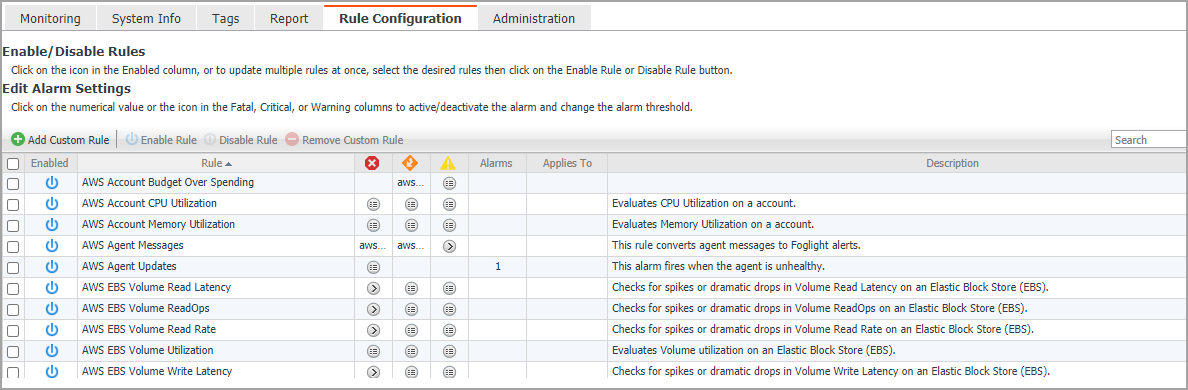

Figure 25. Rule Configuration dashboard

To access the Rule Configuration dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration in the actions bar.

For more information, see the following topics:

•
Rules view
•
Enabling/Disabling rule(s)
•
Adding a custom rule
•
Removing custom rule(s)

Rules view

By default, the following columns are displayed in the Rules view:

•
Enabled: Indicates if the rule is enabled or disabled . You can sort the list of rules by state, by clicking the Enabled column.
•
Rule: Contains the rule name. Click the rule name to start the workflow for viewing and editing rule details.
•
Fatal , Critical , and Warning thresholds (multiple-severity rules only):
•
For expressions that include one registry variable, these columns contain the current value of that variable. Click the value to edit it.
•
For expressions that include multiple registry variables, the column contains an icon . Clicking that icon shows the list of referenced registry variables and their values. Click a value to edit it.
•
For expressions that do not include any registry variables, this column contains an icon . Clicking that icon navigates to the Edit Rule dashboard.
•
For rule states that do not have a conditional expression defined, this column is empty.
•
Alarms: Contains the number of alarms (multiple-severity rules only) generated by the rule. Clicking that column shows a list of alarms indicating for each alarm its severity, when the alarm was generated, and the alarm message.
•
Applies to: Shows the object name that is applied to this custom rule.
•
Description: Contains the rule description.

Enabling/Disabling rule(s)

The Rule Configuration dashboard shows a list of existing rules and a set of rule management commands at the top of the list. Use the Enable Rule and Disable Rule buttons to activate or deactivate one or multiple rules at once.

To enable a rule:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration.
The Rule Configuration dashboard opens.
5
On the Rules list, select one or more check boxes in the left-most column, and then click Enable Rule.
The Enable Rules dialog box opens.
6
In the Enable Rules dialog box, click Yes.
The Rules list refreshes with the rules’ status updated automatically.
To disable a rule:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration.
The Rule Configuration dashboard opens.
5
On the Rules list, select one or more check boxes in the left-most column, and then click Disable Rule.
The Disable Rules dialog box opens.
6
In the Disable Rules dialog box, click Yes.
The Rules list refreshes with the rules’ status updated automatically.

Adding a custom rule

The Rule Configuration dashboard shows a list of existing rules and a set of rule management commands at the top of the list. Use the Add Custom Rule button to create a new rule as needed.

To customize a rule:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Rule Configuration.
The Rule Configuration dashboard opens.
5
Click Add Custom Rule on the Rules table.
The Create Custom Rule dialog box opens.
6
In the Create Custom Rule dialog box, specify the following:
a
Alarm Type:
a
Type the name of custom rule in the Name field.
b
Select an Object Type, and then select a metric from the Metric drop-down list. The value of Metric varies from the Object Type.
c
Select either Threshold or % Change, and then specify the following values as needed.
•
Threshold: Specify Condition, Time Period, Severity, and then specify whether or not fire actions if the specified data attempts are reached. The value of Condition cannot be negative.
•
% Change: Specify Condition, Time Period, and Severity Label. The value of Condition cannot be negative.
b
(Optional) Scope: Choose the objects to which you want to apply this rule. If no objects are selected in this step, the custom rule will apply to all objects which type is the Object Type specified in Step 6.
c
(Optional) Notifications: Click Add New, then the Edit Notification Config - Dialog box appears. In this dialog box, type the E-mail Address and Description as needed, and then click Add.
7
Click Save.
The Rules table refreshes automatically to show the newly added rule.
