Foglight Hybrid Cloud Manager 1.8 - User Guide (for AWS environments)

Using Foglight Hybrid Cloud Manager for AWS Monitoring Tab System Info Tab Tags Tab Report Tab Rule Configuration Tab Administration Tab Optimizer Tab Cost Tab

EC2 Instance Summary view

The EC2 Instance Summary view shows the overall information of the selected EC2 instance. This view appears on the right when you select an EC2 instance in the EC2 Instances view.

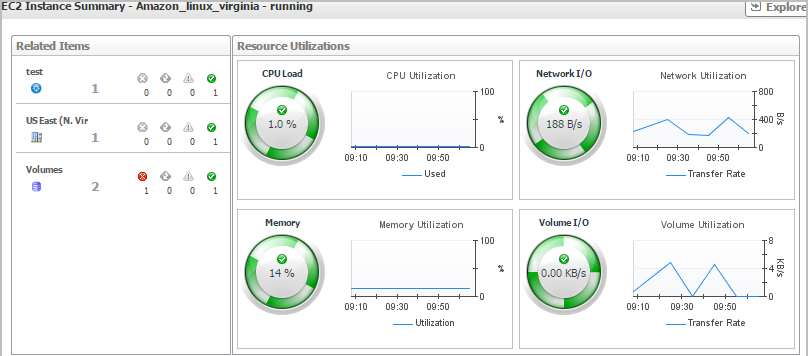

Figure 17. EC2 Instance Summary view

This view consists of the following embedded views:

•
Alarms
•
Related Items

Table 27. Alarms
Description

Lists the alarms generated against the selected EC2 instance.

Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time. Indicates when the alarm occurred.
Where to go next

Drill down on:


•
Alarm Message, Severity, or Time. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms, see the Foglight User Help.

Table 28. Related Items
Description

Shows the numbers and states of the selected resource group on the monitored AWS environment.

Data displayed
•
Disk Usage. Indicates total Disk Usage throughput across all EC2 Instances monitored by the Region.

•
Network I/O. Indicates total network throughput across all EC2 Instances monitored by the Region.

•
CPU Load. Shows the average CPU Load on all EC2 Instances for the Region based on the total capacity.

•
Memory. Shows the Memory Utilization summary for the specified Region based on the total capacity.
Where to go next

Drill down on:


•
CPU Load. Displays the CPU Load dialog box, including CPU Utilization and Baseline.

•
Memory. Displays the Memory Usage dialog box, including Memory Utilization and Baseline.

•
Network I/O. Displays the Network I/O view, showing the metrics of network Usage (in bps) and Baseline.

Disk Usage. Display the Disk Usage view, showing the metrics of disk Usage and Baseline.

Explore - Instance view

The Explore - Instance view appears when you click Explore in the EC2 Instance Summary view.

Figure 18. Explore - Instances view

This view consists of the following embedded views:

•
Summary and Resource Information
•
Volumes
•
CPU Information
•
Memory
•
Network Information


Table 29. Volumes
Description

Shows the volumes that used by this instance. Table will show the name, state, size, utilization and so on.

Where to go next

Drill down on:


•
Description, Severity, Title, or Ack’ed. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms, see the Foglight User Help.

Table 30. CPU Information
Description

.Shows CPU capacity, usage, and utilization.

Data displayed
•
Utilization. Jumps to the Utilization dialog box.

•
Usage. Jumps to the Usage dialog box.

•
Capacity. Jumps to the Capacity dialog box.

Table 31. Memory
Description

Shows Memory capacity, usage and utilization.

Data displayed
•
Utilization. Jumps to the Utilization dialog box.

•
Usage. Jumps to the Usage dialog box.

•
Capacity. Jumps to the Capacity dialog box.



Table 32. Network Information
Description

Shows Network in, Network out, and transfer rate.

Data displayed
•
Network in: Jumps to the Network in dialog box.

•
Network out. Jumps to the Network out dialog box.

•
Transfer rate. Jumps to the Transfer rate dialog box.

Table 33. Summary and Resource Information
Description

Shows the basic information about the selected EC2 instance, including EC2 instance type, name and type of the root device, DNS name, IP address and so on.



Table 34. Volume
Description

Shows Total volume read bytes, write bytes, and utilization.

Data displayed
•
Read bytes: Jumps to the Read bytes dialog box.

•
Write bytes. Jumps to the Write bytes dialog box.

•
Utilization. Jumps to the Utilization dialog box.

EBS monitoring

The EBS view shows the data collected about a specific EBS or all EBSs. For more information, see the following topics:

•
EBS view
•
Summary - All EBS view
•
EBS Summary view

EBS view

The EBS view is a tree view. It lists the EBS instances existing in your environment, and shows their severity state.This view appears on the left when you select the EBS tile in the Actions bar.

Figure 19. EBS view

Selecting the All EBS node displays the overall resource utilization for all EBS instances in your integrated system and identifies the ones that consume the highest amount of system resources in the Summary - All EBS view on the right. Similarly, selecting a storage node shows storage-specific metrics in the EBS Summary view.


Table 35. Description of the View
Data displayed
•
Alarm severity. The state of the most recent alarm raised against the EBS instance.

•
All EBS. A parent node for all EBS instances that appear in this view.

•
EBS. The EBS instance.
Where to go next

Drill down on:


•
All EBS. Shows the Summary - All EBS view on the right.

•
EBS. Shows the EBS Summary view on the right.
