Foglight Hybrid Cloud Manager 1.8 - User Guide (for AWS environments)

Using Foglight Hybrid Cloud Manager for AWS Monitoring Tab System Info Tab Tags Tab Report Tab Rule Configuration Tab Administration Tab Optimizer Tab Cost Tab

Account Summary view

The Account Summary view shows the overall resource utilization and the amounts of system resource consumption for an account. This view appears on the right when you select a virtual machine in the Accounts view.

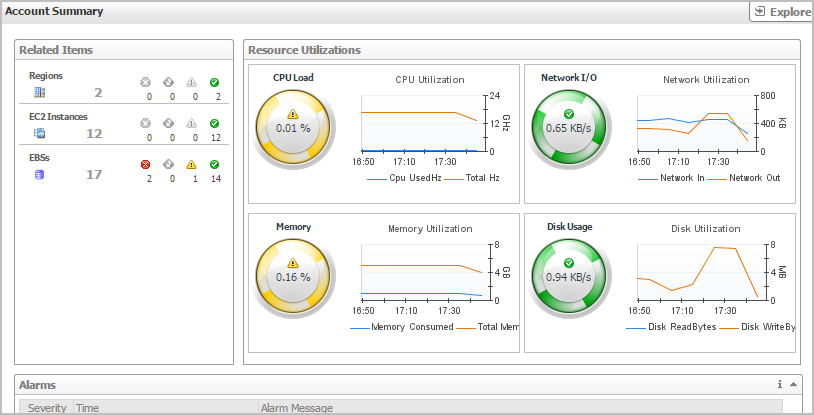

Figure 14. Account Summary view

This view consists of the following embedded views:

•
Alarms
•
Resource Utilization
•
Related Items

Table 17. Alarms
Description

Lists the alarms generated against the selected account.

Data displayed
•
Alarm Message. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Time. Indicates when the alarm occurred.
Where to go next

Drill down on:


•
Alarm Message, Severity, or Time. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms, see the Foglight User Help.

Table 18. Resource Utilization
Description

Shows the numbers and states of the selected account running on the monitored AWS environment.

Data displayed
•
Disk Usage. Indicates total Disk Usage throughput across all EC2 Instances monitored by the Region.

•
Network I/O. Indicates total network throughput across all EC2 Instances monitored by the Region.

•
CPU Load. Shows the average CPU Load on all EC2 Instances for the Region based on the total capacity.

•
Memory. Shows the Memory Utilization summary for the specified Region based on the total capacity.
Where to go next

Drill down on:


•
CPU Load. Displays the CPU Load dialog box, including CPU Utilization and Baseline.

•
Memory. Displays the Memory Usage dialog box, including Memory Utilization and Baseline.

•
Network I/O. Displays the Network I/O view, showing the metrics of network Usage (in bps) and Baseline.

•
Disk Usage. Display the Disk Usage view, showing the metrics of disk Usage and Baseline.

Table 19. Related Items
Description

Shows the resource consumption for the selected account, broken down into three simple views.

Data displayed
•
EC2 Instances. The number of the ECS2 instances that are associated with the selected account, followed by related alarm counts, broken down by the alarm state (Normal, Warning, Critical, Fatal).

•
EBSs. The number of the EBSs that are associated with the selected account, followed by related alarm counts, broken down by the alarm state (Normal, Warning, Critical, Fatal).

•
Regions. The number of the regions that are that are associated with the selected account, followed by related alarm counts, broken down by the alarm state (Normal, Warning, Critical, Fatal).
Where to go next

Drill down on:


•
EC2 Instances. Displays the EC2 Instances Inventory dwell, showing the name and state of the associated Resource Groups.

•
EBSs. Displays the EBS Inventory dwell, showing the name and state of the associated virtual machine.

•
Regions. Displays the Regions Inventory dwell, showing the name and state of the associated accounts.


EC2 Instances Monitoring

The EC2 Instances view shows the data collected about a specific EC2 instance or all EC2 instances. For more information, see the following topics:

•
EC2 Instances view
•
Summary - All Accounts view
•
Account Summary view

EC2 Instances view

The EC2 Instances tree view lists the EC2 instances existing in your AWS environment and shows their state. This view appears on the left when you select the EC2 Instances tile in the Actions bar.

Figure 15. EC2 Instances view

Selecting the All EC2 Instances node displays all EC2 instances in the Summary - All EC2 Instances view on the right. Similarly, selecting an EC2 instance shows EC2 instance-specific metrics in the EC2 Instance Summary view on the right.



Table 20. Description of the View
Data displayed
•
Alarm severity. The state of the most recent alarm raised against the associated EC2 instance.

•
All EC2 Instances. A parent node for the EC2 instances that appear in this view.

•
EC2 Instance. The EC2 instance name.

•
EC2 Instance Power state. The EC2 instance power state.
Where to go next

Drill down on:


•
All EC2 Instances. Shows the Summary - All EC2 Instances view on the right.

•
EC2 Instance. Shows the EC2 Instance Summary view on the right.

Summary - All EC2 Instances view

The Summary - All EC2 Instances view displays overall EC2 instance information. This view appears on the right when you select All EC2 Instances in the EC2 Instances view.

Figure 16. Summary - All EC2 Instances view

This view consists of the following embedded views:

•
Alarms
•
Top CPU Consumers
•
Top Network Consumers
•
Top Memory Consumers
•
Top Volume Consumers
•
Stopped Instances


Table 21. Alarms
Description

Lists the alarms generated against the monitored virtual machine.

Data displayed
•
Description. An explanation about why the alarm occurred.

•
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.

•
Title: Indicates the alarm title.

•
Ack’ed. Indicates whether the alarm was acknowledged.
Where to go next

Drill down on:


•
Description, Severity, Title, or Ack’ed. Displays the Alarm Created dialog box, showing additional information about the alarm. For more information about alarms, see the Foglight User Help.

Table 22. Top CPU Consumers
Description

Shows the top three EC2 instances with the highest average CPU utilization.

Data displayed
•
Utilization. The amount of CPU processing speed each of the top three CPU consumers spend on executing system code and user programs, during the selected time range.

•
EC2 Instance. The name of the EC2 instance.

Table 23. Top Network Consumers
Description

Shows the top three EC2 instances that are consuming most network bandwidth.

Data displayed
•
Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.

•
EC2 Instance. The name of the EC2 instance that is one of the top three network consumers.



Table 24. Top Memory Consumers
Description

Shows the top three EC2 instances with the highest average memory utilization.

Data displayed
•
EC2 Instance. The name of the EC2 instance that is one of the top three memory consumers.

•
Rate. The amount of memory the top three memory consumers use during the selected time range.

Table 25. Top Volume Consumers
Description

Shows the top three EC2 instances with the highest average volume utilization.

Data displayed
•
Rate. The rate at which the top three volume consumers transfer data to or from the network during the selected time range.

•
EC2 instance. The name of the EC2 instance that is one of the top three volume consumers.


Table 26. Stopped Instances
Description

Shows stopped instances based on the configurations.

Data displayed
•
Table. Shows the instance name, stop date, reason and so on.

•
Configure. Configures the days to judge which instances are stopped instances.
