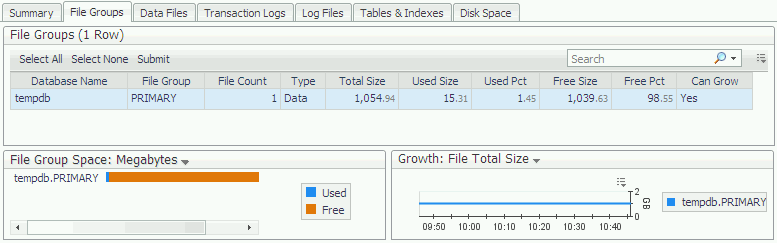

Monitoring File Groups in the Selected Databases

The File Groups pane displays detailed information about all file groups in the databases that are currently selected in the Databases table.

This pane includes the following areas:

The File Groups table shows information about all file groups in the selected database. File stream types (used by memory optimized objects and file-stream objects) are now supported.

The name of the file group in the database.

The number of files in each file group.

The type of file group; for example, data or log file.

The total size of all files in the group.

The total size of used space of all files in the group.

The percentage of used space of all files in the group.

The total size of free space of all files in the group.

The percentage of free space of all files in the group.

Indicates whether the files in the file group (if any) can grow automatically as they fill.

The File Groups Space chart displays the amount of space allocated to each file group. Each file group consists of used space and free space.

The chart values can be displayed in megabytes or as a percentage of disk space. Use the File Groups Space list to change the values displayed on the chart.

The Growth chart displays the amount by which each file group is growing over time.

Use the Growth list to change the values displayed on the chart. This list can be displayed by the total amount of space (File total size), used space (File used size), or unused space (File free size).

Monitoring data files

The Data Files pane displays detailed information about all data files in the database currently selected in the Databases table.

Figure 21. The Data Files pane.

This pane includes the following areas:

To create a custom filter for this table, use the options accessible by clicking the Customizer button at the table’s upper right side. For details, see Components Shared by all Foglight for SQL Server Screens .

Table 41. The Data Files table displays the following indicators for all database data files:

The name of the data file.

The name of the file group to which the file belongs.

The type of file group; for example, data or log.

The size of the file.

The total size of the file’s used space.

The total size of the file’s free space.

The percentage of the file’s used space.

The percentage of the file’s free space.

Indicates whether the file can grow automatically.

The number of times the file can grow, considering its currently configured autogrow increment, before exceeding its space limits.

The maximum size to which the file can grow.

Growth increment. Indicates the amount by which the file grows every time, if the autogrow option is enabled. for example, if the data file’s initial size is 1 megabyte and it has to grow to a final size of 11 megabytes, setting the Growth Inc. parameter to 2 megabytes causes the file to grow five times, each time by a 2 megabyte increment.

The path of the data file.

The database name, concatenated with the database file name.

The File Space chart displays the amount of space allocated to the data file for each selected database. Each data file consists of used and free space.

The chart values can be displayed in megabytes or as a percentage of disk space. Use the File Space list to change the values displayed on the chart.

The Data Files Growth chart displays, in megabytes, the amount by which each file is growing over time.

Use the Growth list to change the values displayed on the chart. This list can be displayed by the total amount of space (File Total Size), used space (File Used Size) or unused space (File Free Size).

Monitoring Transaction Logs in the Selected Database

The Transaction Logs pane displays detailed information about all transaction logs in the database currently selected in the Databases table.

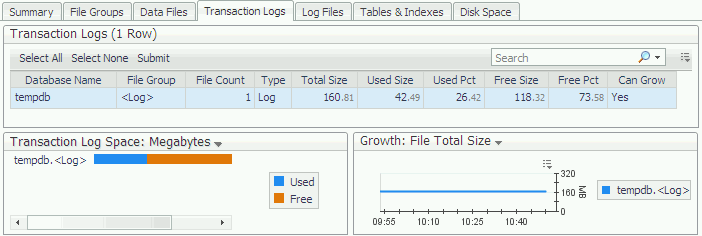

Figure 22. The Transaction Logs pane.

This pane includes the following areas:

The Transaction Logs table displays information about all transaction logs in the selected databases, as detailed in the following table.

Table 42. The Transaction Logs table details.

The name of the file group to which the file belongs.

The number of transaction logs in the database.

The type of file; for example, log.

The total size of all files in the transaction log.

The amount of used space.

The percentage of used space within the log file.

The amount of free space.

The percentage of space available for use within the log file.

Indicates whether any of the files in the transaction log can grow.

Transaction Log Space chart

The Transaction Log Space chart displays used space and free space for each of the selected databases’ transaction logs.

The chart values can be displayed in megabytes or as a percentage of disk space. Use the Transaction Log Space list to change the values displayed on the chart.

The Transaction Log Growth chart shows the amount by which each transaction log is growing over time.

Use the Growth list to change the values displayed on the chart. This list can be displayed by the total amount of either all transaction logs (File Total Size), used logs database (File Used Size), or unused transaction logs (File Free Size).
