Exchange Cluster Environment Summary view

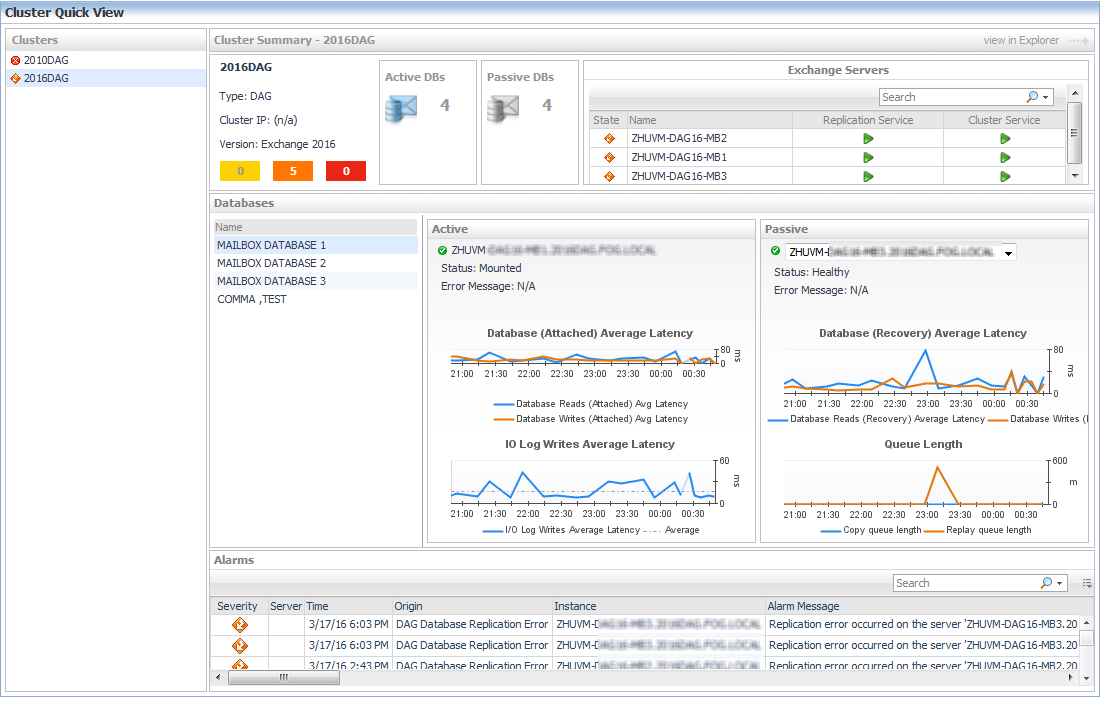

Figure 44. Exchange Cluster Environment Summary view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment. |
|
2 |
From the Monitoring tab, select the Clusters tile. |
The cluster tile displays the following information:

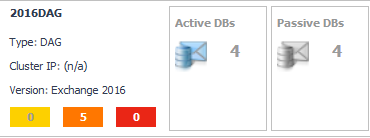

Figure 45. Cluster tile
In addition to the cluster tile, the following embedded views are displayed:

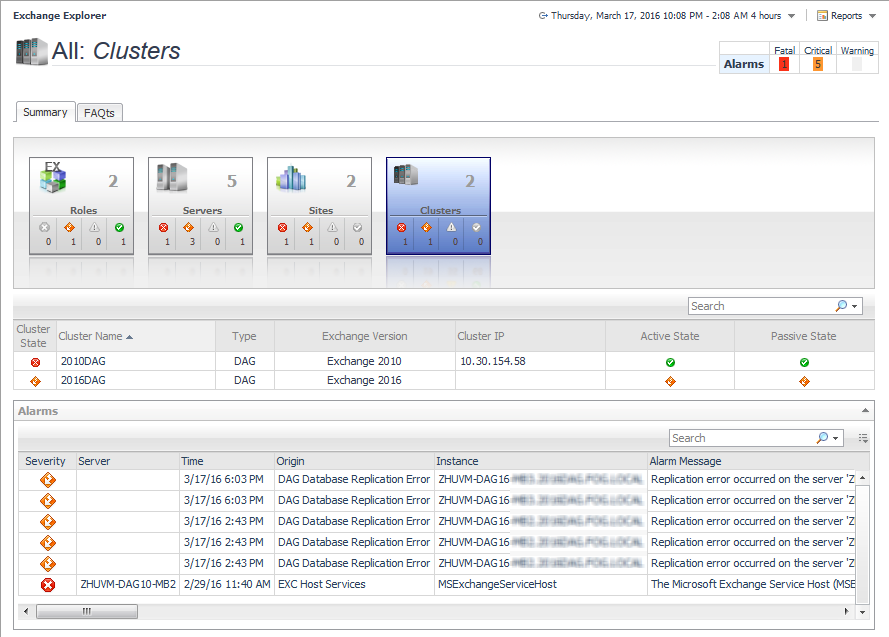

Exchange Clusters Explorer Summary (All Clusters) view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer. |
|
2 |
From the Exchange Infrastructure panel, select the Clusters object container. |
The following embedded views are displayed:
Exchange Cluster Explorer Summary view

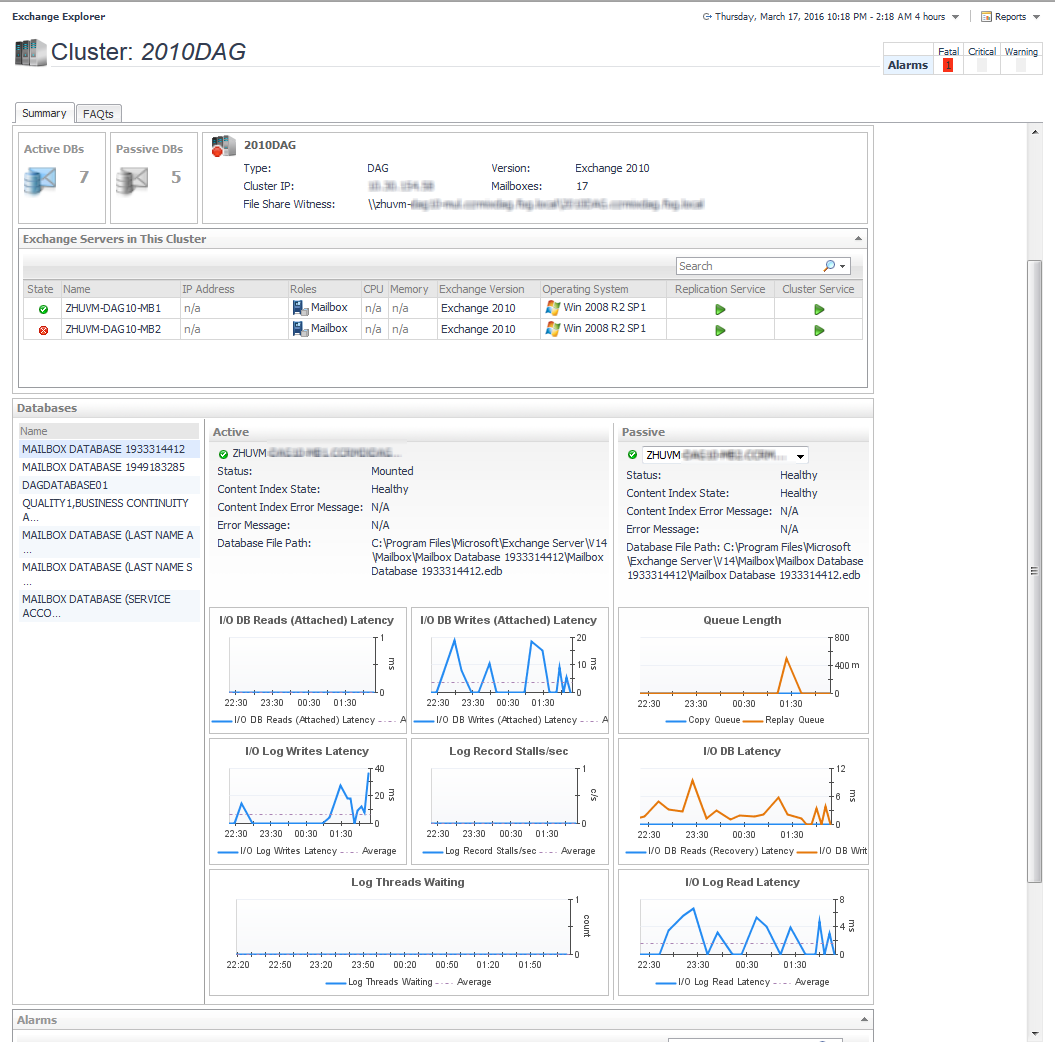

Figure 47. Exchange Cluster Explorer Summary view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer. |
|
3 |
Select the Summary navigation tab. |
|
NOTE: You can also click the view in Explorer link on that cluster’s Exchange Cluster Environment Summary view to display this view. |
The following embedded views are displayed:
Description of Embedded views
|
• |
