Hub Transport Role Environment Summary view

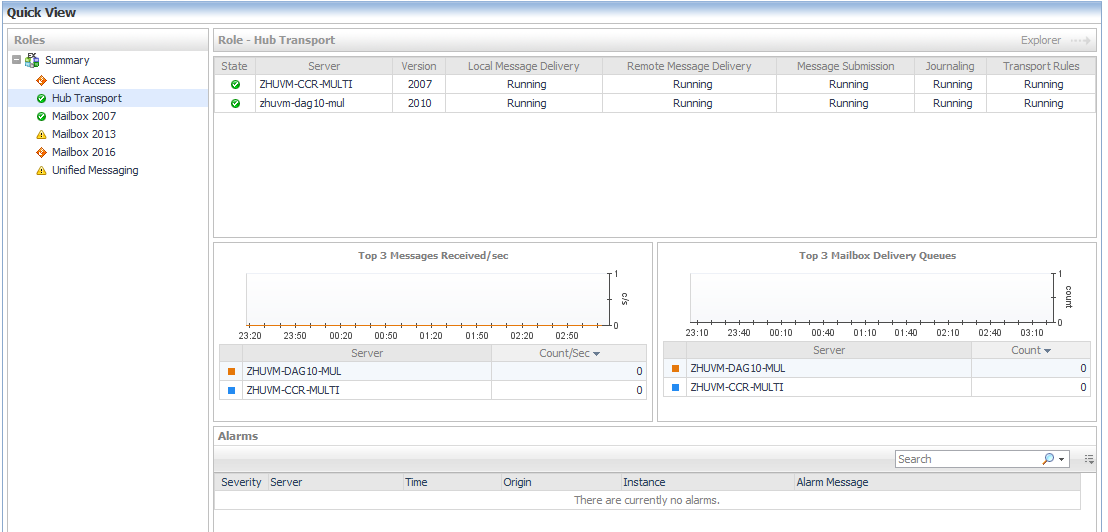

Figure 21. Hub Transport Role Environment Summary view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment. |
|
2 |
From the Monitoring tab, select the Roles tile. |
|
3 |
From the Object Tree view, select Hub Transport. |
The following embedded views are displayed:
Mailbox Role Environment Summary view
Figure 22. Mailbox 2016 Role Environment Summary view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment. |
|
2 |
From the Monitoring tab, select the Roles tile. |
|
3 |
The following embedded views are displayed:
Unified Messaging Role Environment Summary view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Environment. |
|
2 |
From the Monitoring tab, select the Roles tile. |
|
3 |
From the Object Tree view, select Unified Messaging. |
The following embedded views are displayed:
Exchange Roles Explorer Summary (All Roles) view
|
1 |
From the Foglight navigation panel, select Dashboards > Exchange > Exchange Explorer. |
|
2 |
From the Exchange Infrastructure view, select the Roles container object. |
