Foglight Evolve 7.3.0 - User Guide

Getting Started Viewing, Acknowledging, and Clearing Alarms Viewing, Creating, and Managing Alarm Templates Monitoring Your Domains Monitoring Your Services Monitoring Your Hosts Reporting on Your Enterprise

Viewing detailed information for a domain or subdomain

Drill down on a domain name to view a high-level summary of its monitored components. For example, click Infrastructure to view all monitored virtual and physical hosts in the Hosts dashboard.

By default, the Domains dashboard shows only top-level domains. Expand a domain node to view its subdomains.

Each monitored subdomain comprises the actual instances of that technology type in your environment. Click a subdomain name to drill down to details about it. For example, click Linux to navigate to the list of Linux hosts or click Oracle to drill down to the Oracle Global View.

Investigating Problems in a Domain

Use the Domains dashboard to monitor for problems in your domains — for example, to see if a domain is in a Critical state, or if any alarms have been fired for its components — and take action on them.

Investigating a Domain or Subdomain’s State

By default, a domain or subdomain reflects the current worst state (normal, warning, critical, or fatal) of its components.

Click the State icon to investigate the state of a domain or subdomain that is displaying a warning, critical, or fatal icon.

A popup appears that lists the domain or subdomain’s alarm sources (for example, hosts, application servers, or databases) and their health. These are the components that contributed to the domain or subdomain’s state.

Depending on the problem you are investigating, do one of the following to drill down to more detailed views:

•
Click an alarm source to drill down and see more details about it.
•
Drill down to views that display the health of all alarm sources.
•
Drill down to view the health of the current object (for example, Infrastructure domain or the Linux subdomain).
•
Drill down to view all outstanding alarms for the domain or subdomain.
Investigating a Subdomain’s Health

Foglight displays each monitored subdomain’s recent health in the History column. This column summarizes the subdomain’s health for the dashboard’s time range.

The colored segments in the column represent the subdomain’s alarm severity state at different intervals within the time range. Yellow segments represent warning alarms, orange segments represent critical alarms, and red segments represent fatal alarms. Green segments represent intervals without alarms.

To investigate the health history:
1
Hover the cursor over a segment in the health history bar to display a popup with a list of related alarms that occurred during that interval.
2
Click the health history bar.
A more detailed Health History view appears.
3
Click and drag the timeline to zoom in on an interval in the bar.
The chart zooms in on the selected time range.
*
TIP: After zooming in, hover the cursor over the bar to cause the zoom menu to appear. To restore the previous time range used by the bar, click the Previous Zoom icon (). To restore the bar’s timeline to its initial state, click the Restore Zoom icon (). To freeze the dashboard’s time range at the same interval spanned by the bar’s zoomed-in range, click the Update page with zoomed time range icon ().
4
Click a red, orange, or yellow segment in the detailed health history bar to find alarms that are causing the host to be in a non-normal state during that interval.
A popup with details about the alarms that fired during that interval appears. See Viewing, Acknowledging, and Clearing Alarms for more information about working with alarms.
Investigating a Subdomain’s Alarms

The counts in the Alarms column represent the total number of alarms fired for the components in a subdomain; for example, for all monitored virtual hosts in the Infrastructure > VMWare subdomain.

Use this column to view the number and type of alarms fired for these components during the dashboard’s current time range.

Click an alarm to display a popup that contains the standard alarm list. See Viewing, Acknowledging, and Clearing Alarms for more information about working with alarms.

Investigating Problems with a Subdomain’s Agents

You can view the state of the agents related to a subdomain in the Agents column.

Click a warning, critical, or fatal state icon to display a list of agents with health problems or drill down to the Agents dashboard. For more information, see Investigating Problems with Agents.



Monitoring Your Services

In Foglight, a service is any component or group of components that you want to monitor. If you have the Advanced Operator role, you create services in the Service Builder dashboard that reflects the components in your monitored environment that are meaningful or interesting to your organization.

Examples of services include:

•
An application, including its Web servers, application servers, and databases.
•
A collection of related systems, such as all Windows machines in your monitored environment.
•
A business process, such as retail banking.

Each service can include any component in your monitored environment, including other services. A service inherently has a service level and relationships of impact and dependency to other services.

For information about how to create a service, see Creating a service.

The My Services dashboard is the best way to monitor a selected set of services. Use it to tailor the way Foglight presents information about monitored components so that it suits your specific needs.

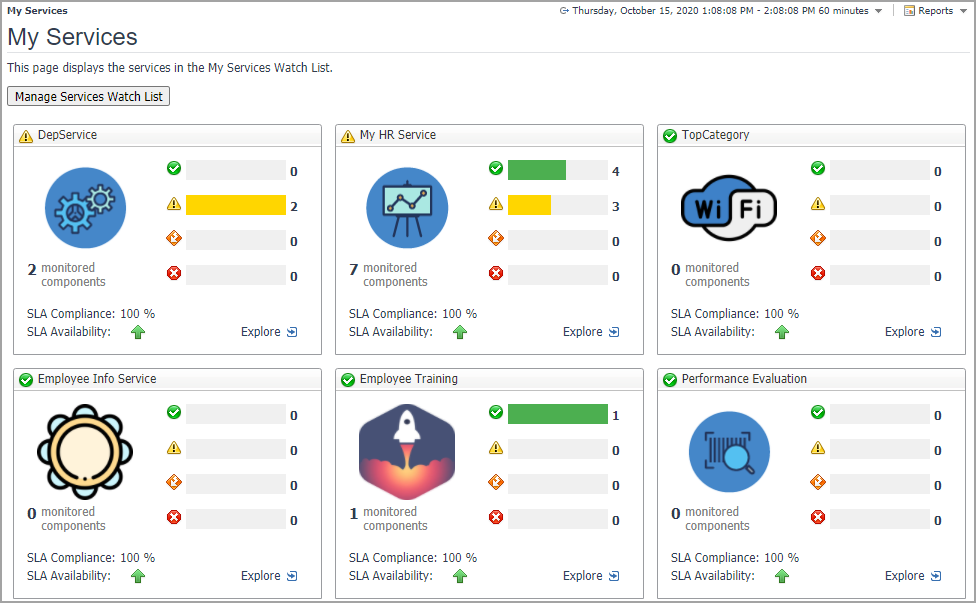

Figure 1. My Services dashboard

Follow the instructions in this chapter to monitor a specific group of services that interests you by:

•
Selecting these services.
•
Displaying service breakdowns based on the Alarms state and SLA state.
•
Viewing details about your services, such as their state, contents, and dependencies.
Next Steps
•
Selecting the Services You Want to Monitor
•
Monitoring a Service
•
Drilling down into a service
•
Viewing Services Details page

Selecting the Services You Want to Monitor

By default, no services are listed in the My Services dashboard. This is by design: it gives you the opportunity to customize the My Services dashboard to suit your needs. Select the set of services that you want to monitor so that they appear in this dashboard.

To select services:
1
Open the My Services dashboard and click Manage Services Watch List.
The Select services to watch list dialog box appears.
2
In the Name tab, explicitly select each service you want to monitor (selecting a service does not automatically select its children).
*
TIP: Use the search features to find services you are interested in. The search is per keyword, delimited by spaces. For example, if you want to search on “Global Service” (instead of “Global”), add quotes around “Global Service” to match that exact string.
3
Click Apply.
*
NOTE: To use the following functions, Foglight users require the Advanced Operator role.
