Monitoring Service
Monitoring Service
A new service is being included with Evolve to monitor the Web Platform, and other Evolve systems (e.g. Data Transformation). This is capable of reporting on a number of identifiable issues, by daily summary email, or by urgent immediate email. It is also possible for it to take remedial action, in some circumstances.
•Identifying specific log message content
•Testing http responses
•Extensible configuration to allow the addition of new issue identification
•It is also capable of some remedial actions such as:
IIS Reset
App Pool Recycle
Execute batch job
List of enhancements and fixes
List of enhancements and fixes
|
2024.0.0 Major Release (11.14.0.114/11.14.0.120) | |||
|
RFA / Issue |
Description | ||
|
Enhancement |
Web Modeler: Add Existing Objects Panel in Webmodeler | ||
|
Enhancement |
Web Modeler: Backup and Restore draft diagrams to the Model | ||
|
Enhancement |
Web – Built-in many of the Services Group’s custom features | ||
|
Enhancement |
Desktop - Model export now uses compression (use the command line if you wish to export without compression) | ||
|
Enhancement |
Tools - Global Search Validator tool checks and fixes issues in the search indexes | ||
|
Enhancement |
Tools - Added a Monitoring Service to report on and fix health issues in Evolve | ||
|
BUG |
Webmodeler – Fixed issues moving contained objects | ||
|
BUG |
Web – Fixed issue adding associations to an editable popout | ||
|
BUG |
Webmodeler [02413169] - When using an object with quote or slash, on publishing webmodeler no longer adds more characters | ||
|
BUG |
Webmodeler [2140543] - Published diagrams now correctly hide display connector names | ||
|
BUG |
Web [02324513] < > Brackets when used in the desktop tool to name objects, now get displayed correctly in Evolve HTML5 Diagrams and in properties | ||
|
BUG |
Web [5071074] - Duration and Frequency datatypes now display correctly in Evolve | ||
|
BUG |
Web [02376126] - Iteration groups now show their name in HTML 5 diagrams | ||
|
BUG |
Webmodeler [02359816] – Fixed issue where creating same-type to same-type associations in Webmodeler would create duplicate associations | ||
|
BUG |
Webmodeler [02379684] - Slim Arrowhead now shows correctly in Webmodeler | ||
|
BUG |
Web [2295807] -Fixed display of primary and non primary attributes in erwin evolve | ||
|
BUG |
Desktop – Fixed issue where Model Explorer was unable to clear date fields | ||
|
BUG |
Web – Fixed intermittent issue where an expired token could cause evolve to not allow users to login | ||
|
BUG |
Web [02452029] – Improved performance, when a site has more than 20000 users. Login to evolve is now improved for a user’s first time logon | ||
|
BUG |
Web [02379033, 02413160] – Fixed issue where Evolve Diagram Designer could duplicate filters when opening them | ||
|
BUG |
Web – Fixed Loading child nodes... it could get stuck on editing a diagram designer diagram | ||
|
Enhancement |
Webmodeler – Added some missing shapes types to Webmodeler | ||
|
BUG |
Webmodeler - Preview of Diagrams is sometimes not showing in Drafts Manager Page | ||
|
BUG |
Webmodeler – Fixed an issue where the Diagrammer Service become unresponsive | ||
|
BUG |
Web - TinyMCE upgrade issues addressed | ||
|
BUG |
Web – Fixed issue where Advanced Workflow form properties were not displayed | ||
|
BUG |
Web - Setting lookups as disable now works correctly in Advanced Workflow | ||
|
BUG |
Web – Fixed issue where Pivot Tables and Network diagrams wouldn’t load | ||
|
BUG |
Web - Word Icon now shows correctly in “Coffeemaker” component | ||
|
BUG |
Web - Advanced Workflow no longer needs 2 clicks to show the drop down for types | ||
|
BUG |
Webmodeler - Publishing a draft diagram no longer leaves behind a detached draft diagram | ||
|
BUG |
Web - DocX document generator now functions correctly | ||
|
BUG |
Web - Prevented common.json being removed on uninstall | ||
|
BUG |
Webmodeler - Allow the use of <> brackets in Webmodeler shape names | ||
|
Security |
General Package and Component Updates | ||
|
Security |
MongoDB upgraded and moved into the Evolve install folder | ||
Product Licensing
Product Licensing
As of the 2023.1.0 release of erwin Evolve Suite / Web Platform, licensing is migrating to the standard Quest Inc. license system. During the migration, there will be a grace period, whereby existing customers can continue to use their existing Casewise licenses. Quest do not intend to force customers onto the new licensing and will work with them to ensure a successful migration.
|
|
If you are considering upgrading to 2024, you should not be concerned with the new licensing system, as its usage is optional now. |
Activating your Quest License
The process for activating an erwin Evolve license is:
1.Support will provide you with one or more license files per Server machine that requires licensing.
For example:

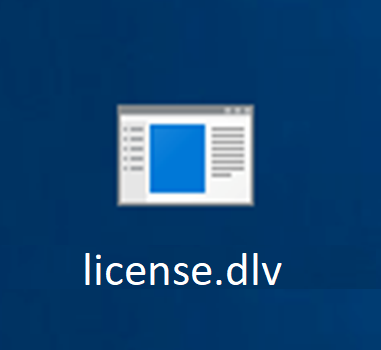

2.Having installed the software, copy this file to your server's desktop.

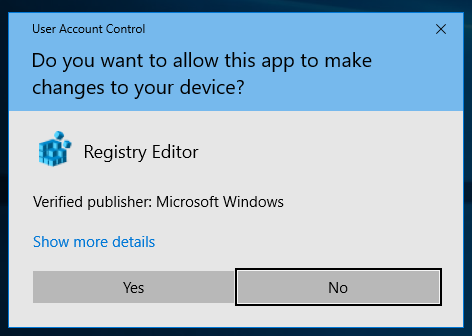

3.Double-click on the file. You will be presented with a warning:
4.Click Yes to allow the tool to change the registry.

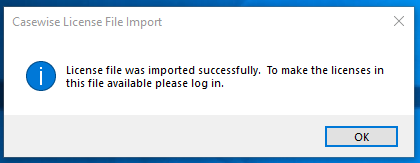

5.The software now has the purchased licenses activated on the server. To verify this, load the License Manager.

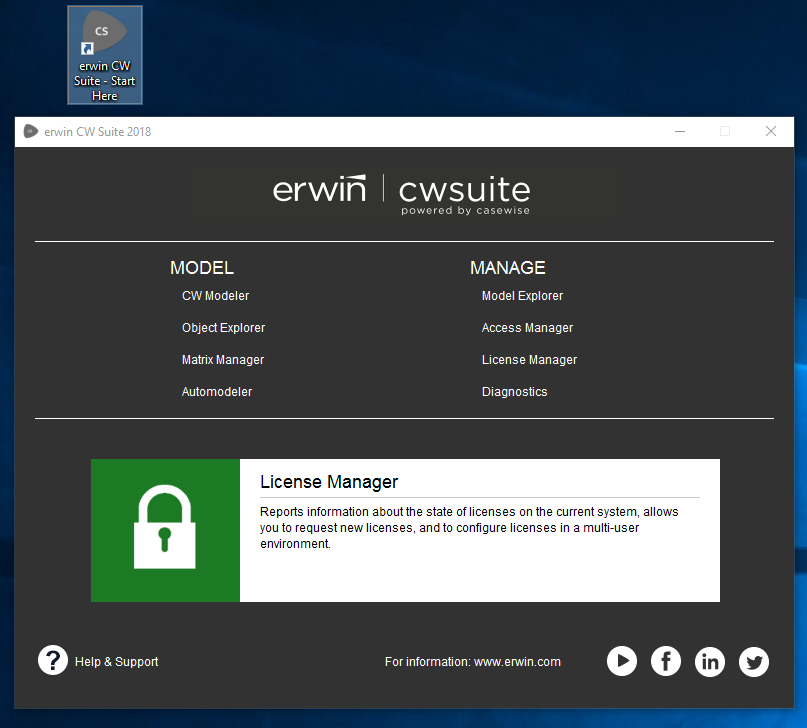

Open erwin Evolve suite - Start Here.
6.Click License Manager, and login.

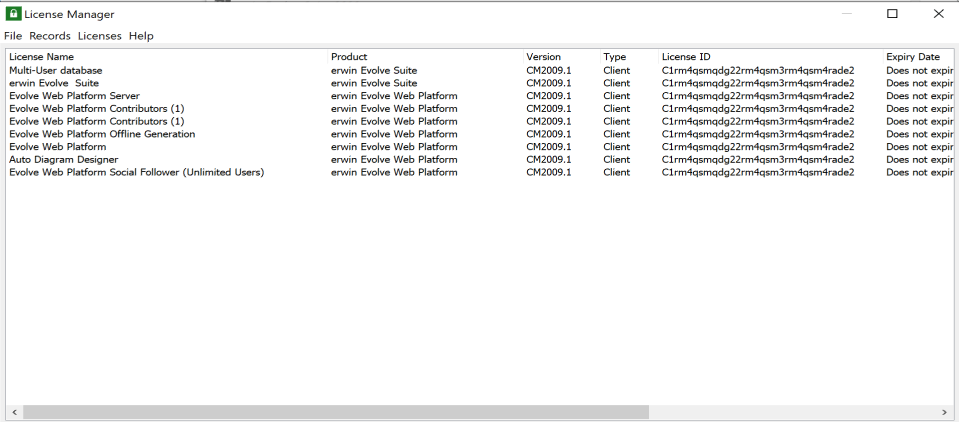

7.License Manager will show the license code, and various other attributes.
Returning your erwin License
If you need to move the license from one server to another, you must contact support, who will assist with the migration.
