StoragePoint 6.3 - Reference Guide

Planning the Metalogix StoragePoint Implementation Backup/Restore and Disaster Recovery Synchronous versus Asynchronous Setting up Metalogix StoragePoint Default Values General Settings Managing Storage and Backup Endpoints Managing Storage Profiles Metalogix StoragePoint Timer Job Monitoring File Share Librarian Large File Support Dashboard User Experience Activating the Software Appendix A: Import\Export Tool About Us

Failover Server


This setting allows a fail-over server specified for the Metalogix StoragePoint database. The Metalogix StoragePoint database must be mirrored to this server using SQL Server mirroring.

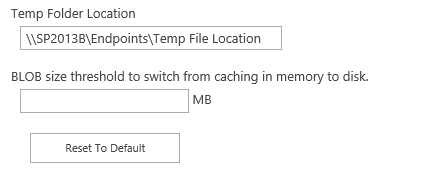

Temp Folder Settings


The temp file location can be changed to a shared location that will temporarily contain StoragePoint files. Click Reset to Default to use the system temp folder and 16 MB.

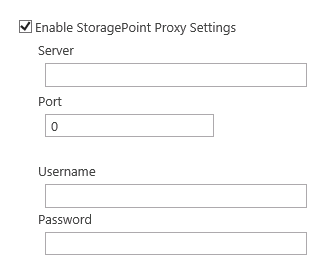

StoragePoint Proxy Settings

stp proxy settings

This is a LicenseServer Proxy (call LicenseServer directly or through Proxy). It can also be edited during an upgrade, or using PowerShell.


Maximum Compression Size



NOTE: Changing this setting requires an IISRESET and restart of the SharePoint Timer Service to take effect.


NOTE: The Maximum Compression size setting only affects asynchronous profiles (Endpoint Selection Mode = Asynchronous). Synchronous profiles will ignore this setting and compress all size types within the scope of the profile (if compression is enabled).

This setting specifies a maximum file size to compress if compression is turned on for an endpoint. Files above the limit will not be compressed.


Default value is -1 which means files of all sizes are compressed (if compression is turned on for the endpoint).
