Reference Materials for Migration 8.15 - Public Folder Synchronization (MAgE)

About This Document How It Works Before You Begin Public Folder Synchronization Specific Case Workarounds Technical Reference

Get-MMExPublicFolderStatistics

Gets synchronization statistics of public folders.

Detailed Description

The Get-MMExPublicFolderStatistics cmdlet gets synchronization statistics of public folders. The obtained information can be then exported to a CSV file. See Tuning Statistics to use full functionality of this cmdlet.

Syntax
Get-MMExPublicFolderStatistics

[-FolderPath] <String>

[<CommonParameters>]

Examples
Example 1

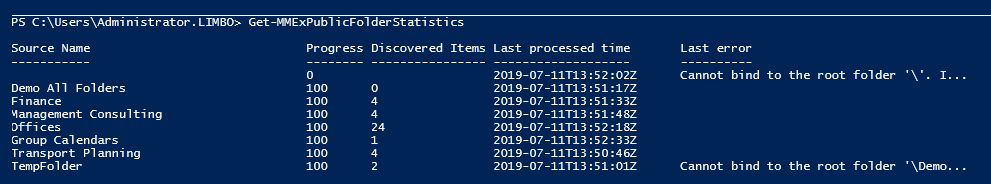

Get-MMExPublicFolderStatistics

This command gets statistics of all public folders in the Migration Manager for Exchange project.

Example 2
Get-MMExPublicFolderStatistics |?{$_.SourcePath -eq '\Folder1'} | fl

This command gets detailed statistics of the public folder \Folder1:

Folder Id           : 9
Collection Id       : 1
Source Name         : Folder1
Source Path         : \Folder1
Source EntryId      : 0x0000000093BDFE1CB63DD74E94AD8A0CD0028A730100F9B5E1322292134898CB269CC88977F40000B3841FE50000
Target Path         : \Folder1
Target EntryId      : 0x000000001A447390AA6611CD9BC800AA002FC45A03009521443180DC7248BBA93A26524A992600009DF9A4030000
Progress            : 100
Discovered Items    : 463
Processed Items     : 463
Failed Items        : 0
Last Processed Time : 2019-07-02T15:47:35Z
Last Error          :
Example 3
 Get-MMExPublicFolderStatistics  | Out-GridView

This command gets statistics of all public folders in the Migration Manager for Exchange project and then sends the output to an interactive table in a separate window.

Example 4
Get-MMExPublicFolderStatistics |?{$_.Progress -eq 100}

This command gets synchronization statistics of the public folders that have progress = 100%.

Example 5
Get-MMExPublicFolderStatistics | ?{$_.Path -like "\PF_Root\*"}

This command gets statistics of the public folders that have path like = '\PF_Root\*'.

Example 6
Get-MMExPublicFolderStatistics | ?{$_.Path -like "\PF_Root\*"} | Export-Csv -NoTypeInformation -Encoding UTF8 -Path "C:\MMEx\export.csv"

This command gets statistics of the public folders and export it to the export.csv file.

Parameters
-FolderPath

The full path to the public folder to obtain statistics.

Required? false
Position? 1
Default value none
Accept pipeline input? false
Accept wildcard characters? false
<CommonParameters>

This cmdlet supports the common parameters: Verbose, Debug, ErrorAction, ErrorVariable, WarningAction, WarningVariable, OutBuffer and OutVariable. For more information, see about_CommonParameters.

Inputs

FolderPath

Outputs

Grid view

CSV file



Get-MMExAgent

Gets parameters of specified Agents.

Detailed Description

The Get-MMExAgent cmdlet gets parameters of one or more Agents specified by the Agent Host and type.

Syntax

Get-MMExAgent

-Type PublicFolder

-AgentHost <hostname>

Parameters

-Type

Specifies the agent type, currently only 'PublicFolder' is allowed.

Required? false
Position? 1
Default value PublicFolder
Accept pipeline input? false
Accept wildcard characters? false

            -AgentHost


Specifies host name to install specified agent.

TIP: If this parameter is not specified, the agent will be installed on the local server (localhost)..

Required? false
Position? 2
Default value localhost
Accept pipeline input? false
Accept wildcard characters? false
<CommonParameters>

This cmdlet supports the common parameters: Verbose, Debug, ErrorAction, ErrorVariable, WarningAction, WarningVariable, OutBuffer and OutVariable. For more information, see about_CommonParameters.

Examples
Example 1
Get-MMExAgent -Type PublicFolder

This command gets all Public Folder agents.

Example 2
Get-MMExAgent -AgentHost 'dmmconsole'

This command gets all agents from Agent host 'dmmconsole'.

Example 3
Get-MMExAgent -Type PublicFolder -AgentHost 'dmmconsole'

This command gets all Public Folder agents from Agent host 'dmmconsole'.

Start-MMExPublicFolderMigration

Starts public folders migration process in express-mode with minimal customization.

Detailed Description

The Start-MMExPublicFolderMigration cmdlet consequentially executes Install-MMExAgent, Set-MMExGroupMatching, Export-MMExPublicFolderMapping, Import-MMExPublicFolderMapping, Initialize-MMExPublicFolderMigration, Start-MMExAgent and Sync-MMExMailPublicFolder. This command should be executed after source and target organizations are added to migration project.

Syntax

Start-MMExPublicFolderMigration

-SourceOrganization <source organization name (as displayed in tree-view)>

-TargetOrganization <target organization name (as displayed in tree-view)>

[-Direction]

[-TargetMailboxSize <size limit>]

[-TargetRootFolderName <root folder name>]

[-TargetMailboxNameTemplate <mailbox name prefix>]

[-MigrateOnly <root folder name>]

[-SkipGroupMatching]

[-SkipSyncMailPublicFolders]



Examples
Example 1
Start-MMExPublicFolderMigration -SourceOrganization 'My Source Organization' -TargetOrganization 'My Target Organization'

This command starts public folder migration from 'My Source Organization' organization to 'My Target Organization' organization.

Example 2
Start-MMExPublicFolderMigration -SourceOrganization 'My Source Organization' -TargetOrganization 'My Target Organization' -TargetMailboxSize 2GB

This command calculates the number of mailboxes necessary to handle source public folder structure considering 2GB size limit for target folder mailboxes, and starts public folder migration from 'My Source Organization' organization to 'My Target Organization' organization.

Example 3
Start-MMExPublicFolderMigration -SourceOrganization 'My Source Organization' -TargetOrganization 'My Target Organization' -TargetMailboxNameTemplate "BrandNewMailbox"

This command calculates the number of mailboxes necessary to handle source public folder structure, and starts public folder migration from 'My Source Organization' organization to 'My Target Organization' organization. Target public folder mailboxes will be named like BrandNewMailbox plus numeric index.

Example 4
Start-MMExPublicFolderMigration -SourceOrganization 'My Source Organization' -TargetOrganization 'My Target Organization' -TargetRootFolderName "CustomRoot"

This command calculates the number of mailboxes necessary to handle source public folder structure, and starts public folder migration from 'My Source Organization' organization to 'My Target Organization' organization. Target public folders hierarchy will reside in the root folder named "CustomRoot".

Example 5
Start-MMExPublicFolderMigration -SourceOrganization 'My Source Organization' -TargetOrganization 'My Target Organization' - MigrateOnly "\Marketing"

This command calculates the number of mailboxes necessary to handle source public folder structure within \Marketing root, and starts public folder migration from 'My Source Organization' organization to 'My Target Organization' organization.

Example 6
Start-MMExPublicFolderMigration -SourceOrganization 'My Source Organization' -TargetOrganization 'My Target Organization' - Direction TwoWay

This command starts 2-way synchronization of public folders between 'My Source Organization' organization and 'My Target Organization' organization.

Parameters
-SourceOrganization


Specifies the source organization from which mail-enabled universal security distribution groups will be migrated.

Required? true
Position? 1
Default value none
Accept pipeline input? false
Accept wildcard characters? false
-TargetOrganization


Specifies the target organization to which mail-enabled universal security distribution groups will be migrated.

Required? true
Position? 2
Default value none
Accept pipeline input? false
Accept wildcard characters? false
-TargetMailboxSize


Specifies maximum size allowed for target public folder mailbox.

Required? false
Position? 3
Default value 15GB
Accept pipeline input? false
Accept wildcard characters? false
-Direction

Specifies public folder synchronization direction. The following values are available:

  • OneWay - 1-way public folder synchronization
  • TwoWay - 2-way public folder synchronization

IMPORTANT: This decision applies to the current migration project and cannot be changed later. In case this parameter is not set you will be prompted to make this selection during initialization.

Required? false
Position? 4
Default value none
Accept pipeline input? false
Accept wildcard characters? false
-TargetRootFolderName

Specifies name of a folder that will contain migrated public folders on target

Required? false
Position? 5
Default value none
Accept pipeline input? false
Accept wildcard characters? false
-TargetMailboxNameTemplate


Specifies naming template for target public folders mailboxes.

Required? false
Position? 6
Default value PfMigrationMailbox
Accept pipeline input? false
Accept wildcard characters? false
 -MigrateOnly


Limits migration scope by specifying source public folder root to migrate.

NOTE: This parameter requires setting of the TargetMailboxNameTemplate parameter.

Required? false
Position? 7
Default value none
Accept pipeline input? false
Accept wildcard characters? false
SkipGroupMatching

Specifies if object matching for migrated by Quest Migration Manager for Active Directory (Microsoft Office 365) mail-enabled universal security distribution groups will be skipped.

Required? false
Position? 8
Default value false
Accept pipeline input? false
Accept wildcard characters? false
SkipSyncMailPublicFolder

Specifies if mail-enabling of target public folders and setting directory properties for them will be skippedt.

Required? false
Position? 9
Default value false
Accept pipeline input? false
Accept wildcard characters? false
Inputs

SourceOrganization

TargetOrganization

TargetMailboxSize (optional)

TargetRootFolderName (optional)

TargetMailboxNameTemplate (optional)

MigrateOnly (optional)

SkipGroupMatching (optional)

SkipSyncMailPublicFolder (optional)



Export-MMExPublicFolderMapping

Exports public folder configuration and calculated mapping between source and target public folder mailboxes into comma-separated values (CSV) file.

Detailed Description

The Export-MMExPublicFolderMapping cmdlet calculates the number of mailboxes necessary to handle source public folder structure according to specified size requirements, and exports public folder configuration and mapping between source and target public folder mailboxes into comma-separated values (CSV) file. This operation is required to prepare public folder synchronization and in case of changes in source public folder hierarchy as described in Specific Case Workarounds

Syntax

Export-MMExPublicFolderMapping

-SourceOrganization <source organization name (as displayed in tree-view)>

-MappingFilePath <path and filename for the output CSV file>

[-TargetMailboxSize <size limit>]

[-TargetMailboxNameTemplate <mailbox name prefix>]

[-TargetRootFolderName <root folder name>]

Examples
Example 1
Export-MMExPublicFolderMapping -SourceOrganization 'My Source Organization' -MappingFilePath MigrationMapping.csv

This command calculates the number of mailboxes necessary to handle source public folder structure, and writes public folder configuration and mapping for public folder migration from 'My Source Organization' organization to "MigrationMapping.csv file.

Example 2
Export-MMExPublicFolderMapping -SourceOrganization 'My Source Organization' -MappingFilePath MigrationMapping.csv -TargetMailboxSize 2GB

This command calculates the number of mailboxes necessary to handle source public folder structure considering 2GB size limit for target folder mailboxes, and writes public folder configuration and mapping for public folder migration from 'My Source Organization' organization to "MigrationMapping.csv file.

Example 3
Export-MMExPublicFolderMapping -SourceOrganization 'My Source Organization' -MappingFilePath MigrationMapping.csv -TargetMailboxNameTemplate "BrandNewMailbox"

This command calculates the number of mailboxes necessary to handle source public folder structure, and writes public folder configuration and mapping for public folder migration from 'My Source Organization' organization to "MigrationMapping.csv file. Target public folder mailboxes will be named like BrandNewMailbox plus numeric index.

Example 4
Export-MMExPublicFolderMapping -SourceOrganization 'My Source Organization' -MappingFilePath MigrationMapping.csv -TargetRootFolderName "CustomRoot"

This command calculates the number of mailboxes necessary to handle source public folder structure, and writes public folder configuration and mapping for public folder migration from 'My Source Organization' organization to "MigrationMapping.csv file. Target public folders hierarchy will reside in the root folder named "CustomRoot".

Parameters
            -SourceOrganization


Specifies the source organization from which mail-enabled universal security distribution groups will be migrated.

Required? true
Position? 1
Default value none
Accept pipeline input? false
Accept wildcard characters? false
-MappingFilePath

Specifies the full path for the output CSV file to be generated.

TIP: If only file name is specified for CSV file, then the output file will be generated in the current directory.

Required? true
Position? 2
Default value none
Accept pipeline input? false
Accept wildcard characters? false
-TargetMailboxSize

Specifies maximum size allowed for target public folder mailbox.

Required? false
Position? 3
Default value 15GB
Accept pipeline input? false
Accept wildcard characters? false
            -TargetMailboxNameTemplate


Specifies naming template for target public folders mailboxes.

Required? false
Position? 3
Default value PfMigrationMailbox
Accept pipeline input? false
Accept wildcard characters? false
-TargetRootFolderName

Specifies name of a folder that will contain migrated public folders on target

Required? false
Position? 3
Default value none
Accept pipeline input? false
Accept wildcard characters? false
Inputs

SourceOrganization

MappingFilePath

TargetMailboxSize

TargetMailboxNameTemplate

TargetRootFolderName

Outputs

CSV file
