Phased recovery

Recovery Manager for Active Directory supports phased recovery of the Active Directory® forest. This scenario lets you perform the initial recovery during the first phase to make the forest function as soon as possible. The second phase can be postponed, so the full forest structure can be restored later.

  • Phase 1: Perform initial recovery
    Perform restore of one or several domain controllers in each domain.

  • Phase 2: Redeploy remaining DCs
    Restore remaining domain controllers using the Install Active Directory® recovery method.

Phase 1

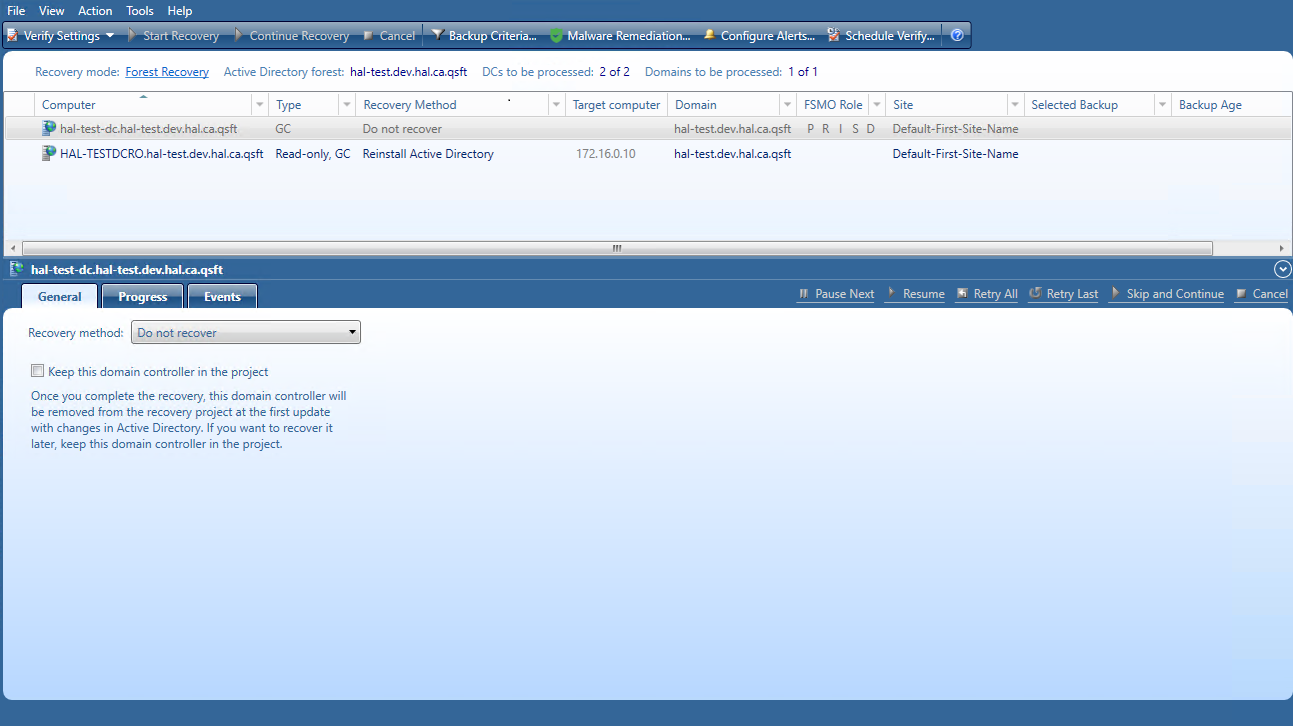

Restore the selected domain controllers using any appropriate recovery method. For domain controllers that you do not plan to restore in this phase, use the Do not recover method with the enabled Keep this domain controller in the project option that allows you to remain the domain controller in the project and restore it later. If the Keep this domain controller in the project option is not checked, the domain controller will be permanently removed from the recovery project after the project update.

Resources/Images/do_not_recover_option.png

To update the project, click Tools | Update Project with Changes in Active Directory on the menu bar and follow the steps of the wizard. If the Keep this domain controller in the project option was selected for the domain controller, this DC will have "Removed, but remained in the project" status after comparing the project with live Active Directory® and will remain in the project after the project update.

Phase 2

To promote new domain controllers and re-promote/demote existing ones
  1. Open your project with domain controllers that were restored from a backup before.

  2. On the menu bar, click Tools | Recovery Project Settings.

  3. Open the Recovery Mode tab.

  4. In the Recovery mode drop-down list, select Repromotion.

  5. You cannot select domains for recovery. All domains are involved in recovery.

  6. Optionally, you can specify default credentials to access domain controllers in the selected domains.

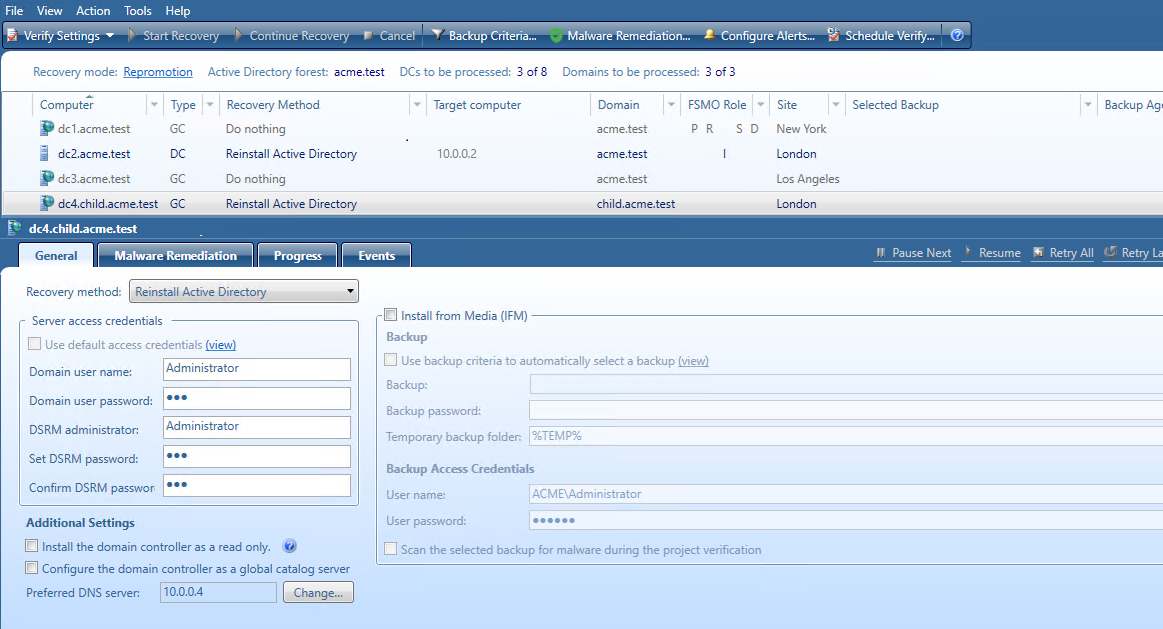

  7. Now the Do nothing recovery mode is set for all running domain controllers that were recovered during Phase 1. This recovery mode does not perform any actions on the domain controller itself and does not remove it.

  8. For domain controllers that were not restored during Phase 1, the Reinstall Active Directory recovery method is selected by default. Also, a user can use the Install from Media option or change Reinstall Active Directory to any other available recovery method.

  9. Start the recovery process. The recovery process can be repeated many times - restore several not restored DCs, then restore the remaining DCs.



Managing Forest Recovery Agent

Recovery Manager for Active Directory (RMAD) employs a Forest Recovery Agent to recover domain controllers. For this reason, it is recommended that you install Forest Recovery Agent on each domain controller you want to recover with RMAD.

NOTE

To install, delete or upgrade the Forest Recovery Agent, RMAD uses the domain access credentials. For more details, refer Table 24 in the General tab section.

RMAD uses the Secure Remote Procedure Call (RPC) over Secure Sockets Layer (SSL) communication logic to establish secure connection between Forest Recovery Console and the Forest Recovery Agent based on the Microsoft Secure Channel (SChannel). The process of agent installation starts with generating the Console and Agent communication keys on the console side, then these keys are deployed to the agent host. After the keys are deployed, both sides verify that each other has a valid key to provide the mutual authentication without using the domain access credentials.

If Forest Recovery Agent is not installed a domain controller in your recovery project, RMAD attempts to automatically install the Forest Recovery Agent on that domain controller after you start the recovery operation on the project.

After you have upgraded the Forest Recovery Console to a new version, it is recommended that you manually upgrade the Forest Recovery Agent on each domain controller in your recovery projects to the version supplied with the new Forest Recovery Console. By doing so you ensure the Forest Recovery Console and the Forest Recovery Agent are fully compatible and can correctly communicate with each other after the upgrade.

In this section:



Installing or upgrading Forest Recovery Agent

Note

To install Forest Recovery Agent, the account under which Recovery Manager Console is running must be added to the Builtin\Administrators domain local group.

To deploy the Forest Recovery Agent, you can use the following methods:

Automatic method

Automatically deploys and upgrades (if required) the Forest Recovery Agent during backup of domain controllers. If this method is used, all necessary communication keys will be deployed as well.

To automatically install the agent
  1. In the Recovery Manager Console tree, expand the Computer Collections node to select the Computer Collection in which you want to automatically install or update the Forest Recovery Agent.

  2. On the Action menu, click Properties.

  3. In the Computer Collection Properties dialog box, open the Agent Settings tab, and then select the Ensure Forest Recovery agent is deployed check box.

  4. Click OK.

When backing up the Computer Collection, Recovery Manager for Active Directory will verify that an up-to-date version of the Forest Recovery Agent is installed on each domain controller in the Collection.

Note that clearing the Ensure Forest Recovery Agent is deployed check box does not uninstall the Forest Recovery Agent. For instructions on how to uninstall the agent, see Uninstalling Forest Recovery Agent.

Manual method

Allows you to deploy the Forest Recovery Agent on multiple domain controllers from the Forest Recovery Console.

You can use this method to upgrade the Forest Recovery Agent on domain controllers after you have upgraded the Forest Recovery Console to a new version.

To install or upgrade the agent using Forest Recovery Console
  1. Create or open a recovery project.

  2. Use the List of Domain Controllers area to select the domain controllers on which you want to install or upgrade the agent. To select multiple domain controllers, hold down CTRL, and click the domain controllers you want to select.

  3. On the menu bar, select Tools | Manage | Forest Recovery Agent or DCs.

  4. In the dialog box that opens, click the Install Agent button to install or upgrade the Forest Recovery Agent on the domain controllers.

To install the agent manually and deploy communication keys for the agent
  1. Copy RecoveryAgent64.exe from the Recovery Manager for Active Directory installation folder (C:\Program Files\Quest\Recovery Manager for Active Directory Forest Edition) to a local folder on the target domain controller.

  2. Run RecoveryAgent64.exe.

  3. To establish a secure connection between the Forest Recovery Console and this instance of Forest Recovery Agent, you need to export a communication key (RecoveryAgent.pfx). To do this, you use the Forest Recovery Console, as follows:

    • Open a Forest Recovery project.

    • Select Tools | Manage | Forest Recovery Agent or DCs and click More in the Manage Domain Controllers dialog.

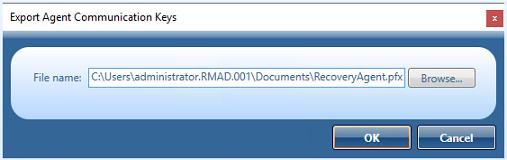

    • Select Export agent communication keys

    Resources/Images/ExportKey_Agent.png

    • The agent communication key file defaults to a location and file name, for example; C:\Users\administrator.RMAD.001\Documents\RecoveryAgent.pfx

    • Click the OK button to save the file.

  4. There is an alternate method to create the Agent communication key.

    • Select Tools | Fault Tolerance on the menu bar.

    • Click Export agent communication keys….

    • The agent communication key file defaults to a location and file name, for example; C:\Users\administrator.RMAD.001\Documents\RecoveryAgent.pfx

    Resources/Images/ExportKey_Agent.png

    • Click the OK button to save the file.
  5. Copy the RecoveryAgent.pfx file to the system used for the manual install and place it in the Forest Recovery Agent installation folder default location, C:\Program Files\Quest\Recovery Manager for Active Directory Forest Edition

  6. Restart the Quest Forest Recovery Service so that the agent will use the key.



Viewing installed Forest Recovery Agent version

To view the installed Forest Recovery Agent version
  1. Open the recovery project where you want to view the installed Forest Recovery Agent version.

  2. Use the List of Domain Controllers area to select the domain controllers for which you want to view the installed Forest Recovery Agent version.

    To select multiple domain controllers, hold down CTRL, and click the domain controllers you want to select.

  3. On the menu bar, select Tools | Manage | Forest Recovery Agent or DCs.

  4. In the dialog box that opens, use the Agent Version column to view the installed Forest Recovery Agent version.

    It is recommended to ensure that the Forest Recovery Agent version is the same as that of the Forest Recovery Console you use.
