Quest Protect 7.1.0 - User Guide

Repositories Capacity Planning Tab - Rapid Recovery

The Repositories Capacity Planning view of the Protection dashboard shows the information about repositories in which backup snapshot data captured from your monitored protection environment is stored and managed. The Repositories Capacity Planning view includes the following two elements:

•
Repositories table: For more information, see Repositories table.
•
Filter menu: Allows you to filter the repositories based on the following options: Show All (default option), 10 days, 30 days, 60 days, and 90 days.

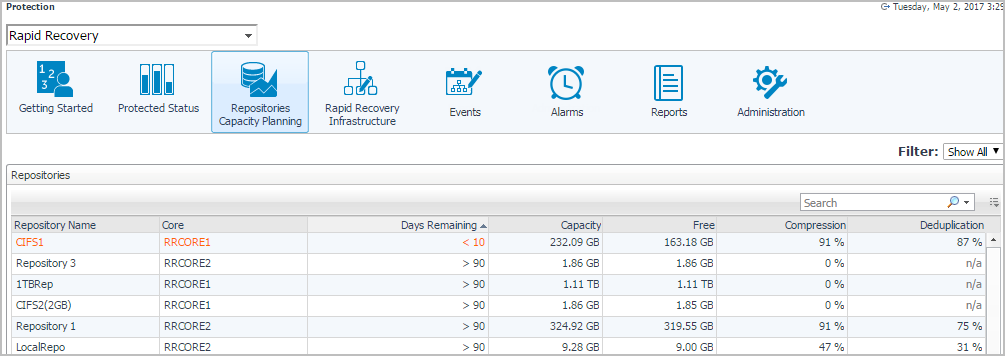

Figure 6. Repositories Capacity Planning view

To access the Repositories Capacity Planning view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Repositories Capacity Planning tab.
The Repositories Capacity Planning view appears at the bottom of the Protection dashboard.

Repositories table

The Repositories table shows a list of central locations in which backup snapshot data captured from your monitored Rapid Recovery environment is stored and managed.


Table 5. Description of the Repositories table
Data displayed
•
Repository Name. Shows the display name of repository.

•
Core. Shows the Core server in which the repository is stored and managed.

•
Days Remaining. Indicates when the storage gets fully occupied.

•
Capacity. Shows the total capacity on the storage.

•
Free. Shows the free capacity on the storage.

•
Compression. Shows the percentage of compression.

•
Deduplication. Shows the percentage of deduplication.





Rapid Recovery Infrastructure Tab

The Rapid Recovery Infrastructure view of the Protection dashboard shows the infrastructure of the service scoped Rapid Recovery Core servers. The Rapid Recovery Infrastructure view includes the following two tables:

•
Core Servers: For more information, see Core Servers table.
•
Rapid Recovery Agents: For more information, see Rapid Recovery Agents table.

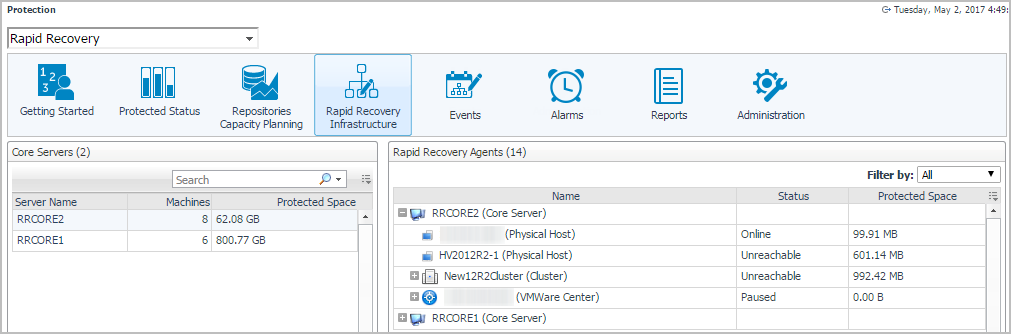

Figure 7. Rapid Recovery Infrastructure view

To access the Rapid Recovery Infrastructure view:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Protection.
The Protection dashboard opens.
4
Use the Group selector located at the top of the dashboard to select the protection environment that you want to monitor.
5
On the menu bar, click the Rapid Recovery Infrastructure tab.
The Rapid Recovery Infrastructure view appears at the bottom of the Protection dashboard.

Core Servers table

The Core Servers table shows a list of core servers that exist in the monitored Rapid Recovery environment.

Table 6. Description of the Core Servers table
Data displayed
•
Server Name. Shows the name of Rapid Recovery Core.

•
Machines. Shows the amount of machines in this Rapid Recovery Core.

•
Protected Spaces. Indicates the amount of storage space protected by this Rapid Recovery Core.
Where to go next

Drill down on:


•
Server Name. Click this column to show links to Infrastructure Health and Rapid Recovery Core Server.
