MessageStats 7.8.1 - Report Pack for Outlook Web Access (OWA) User Guide

About the Report Pack for Outlook Web Access (OWA)

About the Report Pack for Outlook Web Access (OWA)

About the Report Pack for Outlook Web Access (OWA)

Microsoft Outlook Web Access (OWA) is a webmail service for Microsoft Exchange Server that provides remote access to emails that are stored in an Exchange server and accessed through a web browser. In Exchange 2010 and later, the service is called Outlook Web App (OWA).

The MessageStats Report Pack for OWA provides webmail-specific reports that are integrated into the core MessageStats Reports interface. The report pack allows you to gather information about OWA logons and service delivery in large-scale Exchange organizations.

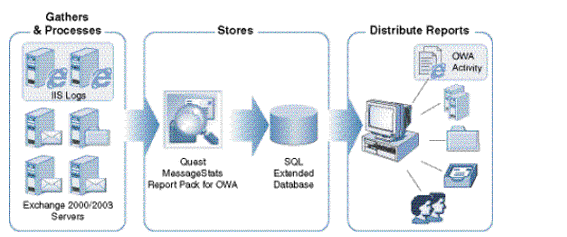

Architecture

The MessageStats Report Pack for OWA analyzes the servers in your Exchange organization and automatically discovers Outlook Web Access objects. The report pack locates and processes the IIS log files that contain information about these objects and writes the processed data to the MessageStats database. This information covers activity concerning the organization's Outlook Web Access.

In addition, the MessageStats Report Pack for OWA can gather log files from an archive on the local server or from a system-wide archive location, so you can gather information from archived log files that may no longer reside on the original production Exchange Server that generated the log files.

Report Pack Components

The MessageStats Report Pack for OWA contains the following component:

•
Task Processors: Includes the IIS Logs Files gathering task which is shared between the Exchange ActiveSync and the OWA report pack. The OWA Task Processor must be installed on a server on which the MessageStats task processors reside.

Additionally, when you install the report pack, the installer extends the following core MessageStats components:

•
MMC Client Console: The console is extended to allow you to create and manage the IIS Log Files gathering task, as well as to configure additional paths to the IIS log file repository.
•
Database: The report pack extends the existing MessageStats SQL database by adding new tables and fields to store the data regarding OWA activity. The OWA Database Schema is installed on the server on which the MessageStats Database resides.
•
Reports: The OWA reports are installed on the IIS server on which MessageStats Reports are installed.
