Foglight 5.9.8 - High Availability Field Guide

Running on Oracle RAC

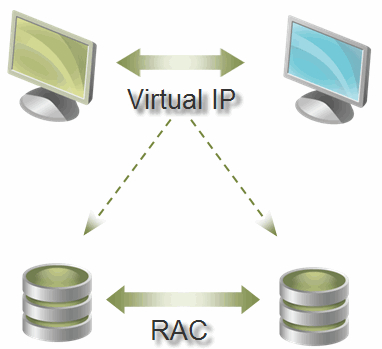

In this configuration, the Management Server was installed on two distinct physical hosts, one acting as HA mode primary, and the other as secondary. This setup was run over an Oracle® RAC cluster to provide HA at the database layer. In addition, an HTTP proxy was configured to provide end users with a single URL for access to the Foglight® browser interface.

2
Choose the Configure Later option.
4
Before starting the server, open the datasource-oracle.properites file and edit the url section:
6
Replace the datasource-oracle.properites file on each machine with the modified one shown partially in Step 4.

Running behind an HTTP proxy

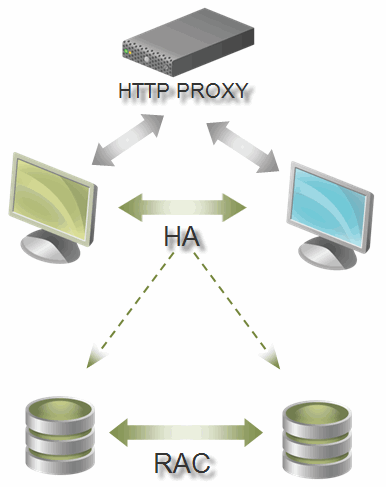

One of the most common configurations is running the Management Server in HA mode behind a proxy so that end users and the agent configuration only need one URL for connection to the browser interface.

In the following example, a third-party software program called balance is used as a proxy.

1
2
Configure balance to forward connections made to the server’s port 8888 to the Foglight® UI port on the two machines in the HA cluster.

Running in a cluster

This section describes one scenario for running the Foglight® Management Server in HA mode with clustering at the application layer. In particular, the focus is on operating system level clustering used in commercial systems such as Oracle®, Microsoft®, and VeritasTM clusters.

This scenario uses the Linux® HA Project’s heartbeat software for SuSE ES 10.1. The heartbeat package includes a virtual IP resource called IPaddr2.

For more information about the Linux HA Project and heartbeat, see http://linux-ha.org.



Tuning connection issues in HA implementations

In some cases, the communication between servers in the cluster is not reliable. Sometimes unwanted behaviors occur, such as:

These issues may be attributable to JGroup (the underlying communication package that the Foglight Management Server uses for its HA implementation) and to the fact that a Foglight HA implementation uses UDP for communication by default and UDP is by nature an unreliable protocol.
