Foglight Hybrid Cloud Manager 6.1.0 - User Guide (for Azure environments)

Using Foglight Hybrid Cloud Manager for Azure Monitoring Tab Tags Tab Reports Tab Rule Configuration Tab Usage & Quotas Tab Global Services Tab Administration Tab Optimizer Tab Cost Tab Policy Management Tab

Global Services Tab

Foglight Hybrid Cloud Manager for Azure allows you to check the service status on various services in your cloud environment.

Figure 25. Global Services dashboard

To access the Global Services dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Azure, then Global Services in the actions bar.

Healthy Services and Unhealthy Services can also be accessed by clicking the numbers listed besides Global Services.

Subscription Unhealthy Services

Subscription Unhealthy Services collect the Azure Subscription service issues displaying in the Azure portal Service Health.

By clicking the number listed besides Subscription Unhealthy Services, a Services Health Information dialog box opens.

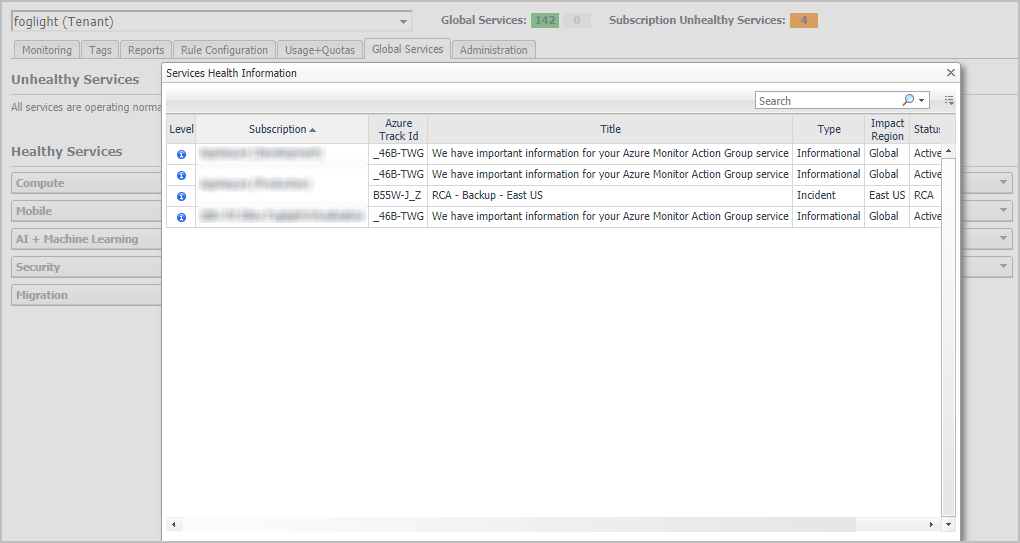

Figure 26. Services Health Information dialog box

: Click to display the Summary of impact.

: Click the label to mark the service issue as resolved.





Administration Tab

The Administration tab of the Cloud Manager dashboard contains links to agent administration tasks that you can use to manage Azure performance agents.

Figure 27. Administration dashboard

To access the Administration dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Administration in the actions bar.

For more information, see the following topics:

•
Tasks view
•
Agents related commands
•
Creating Azure Performance Agent
•
Editing agent properties

Tasks view

The Tasks view allows you to create an Azure agent, to create virtual machine credentials, and to review license usage. For more information about how to create an Azure agent, refer to Creating Azure Performance Agent .

To review license usage:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens.
4
Click Administration.
The Administration dashboard opens.
5
On the Tasks view, click Review License Usage.
The Review License Usage dialog box opens.
6
Click Azure in the Review License Usage dialog box to review the current Azure license information.
The Azure license table shows the Account, Monitoring Agent, and Monitored Virtual Machine Count of your license.
7
Click the number in the Monitored Virtual Machine Count column.
The Virtual Machines dialog box opens and shows the detailed information about all monitored virtual machines.
If the number of monitored virtual machines goes beyond your valid license, the following message will shows on the Cloud Manager dashboard: “Caution: Foglight Hybrid Cloud Manager is over-deployed by <number> monitored virtual machines. Please contact Quest to purchase additional licenses.”
