Foglight Hybrid Cloud Manager 1.5 - User Guide (for Azure environments)

Menu bar

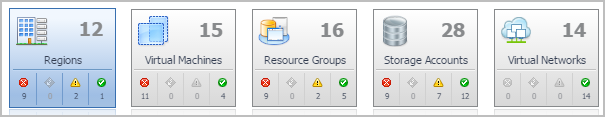

The Menu bar contains the following tiles: Regions monitoring, Virtual Machines monitoring, Resource Groups Monitoring, Storage Accounts monitoring, and Virtual Networks monitoring.

Figure 3. Menu bar

Quick view

The quick view is located on the lower part of the Cloud Manager dashboard, which is updated based on the tab selected on the Menu bar or the Actions bar.





Monitoring Tab

When navigating to the Cloud Manager dashboard for the first time, the Monitoring tab appears. The Monitoring tab allows you to select a monitoring object or a group of objects, such as regions, virtual machines, resource groups, storage accounts, or virtual networks, and review the data associated with your selection.

Figure 4. Monitoring dashboard

To access the Monitoring dashboard:
1
Log in to the Foglight browser interface.
2
Ensure that the navigation panel is open.
To open the navigation panel, click the right-facing arrow on the left.
3
On the navigation panel, under Homes, click Cloud Manager.
The Cloud Manager dashboard opens
4
Click Monitoring in the actions bar.
5
Select the Regions, Virtual Machines, Resource Groups, Storage Accounts, or Virtual Networks tile from the top left.

For more information, see the following topics:

•
Regions monitoring
•
Virtual Machines monitoring
•
Resource Groups Monitoring
•
Storage Accounts monitoring
•
Virtual Networks monitoring

Regions monitoring

The Regions view shows the data collected about a specific region or all Azure regions. For more information, see the following topics:

•
Regions view
•
Summary - All Regions view
•
Region Summary view
