Foglight for VMware 5.8.1 - User and Reference Guide

Using Foglight for VMware
Introducing the virtual infrastructure Navigation basics Interacting with Foglight for VMware VMware Performance Agent configuration
Reference
Views
VMware Alarms views VMware Explorer views VMware Modeler views VMware VirtualCenter views VMware Environment views Other views
Rules
Agent Rules Cluster Rules Datacenter Rules Datastore Rules Resource Pool Rules ESX Server Rules VirtualCenter Rules Virtual Machine Rules VMW Stale Data Management Rule Virtual Switch Rules
Appendix: Alarm Messages Appendix: Metrics

Virtual Center Summary view

The Virtual Center Summary view shows the overall resource utilization and the amounts of system resource consumption for a virtual center.

1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Servers tile.
2
In the Quick-View, select a virtual center node in the Virtual Centers view.
The Virtual Center Summary view appears on the right.

This view is made up of the following embedded views:

Table 161. Alarms

Lists the alarms generated against the selected virtual center.

Alarm Message. An explanation about why the alarm occurred.
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
Time. The time when the alarm was generated.

Drill down on:

Alarm Message, Severity, or Time. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.
Table 162. Related Items

Shows the numbers of the components that belong to the selected virtual center and the related alarm counts.

Clusters. The number of clusters that belong to the selected virtual center, followed by the related alarm counts.
Datacenters. The number of datacenters that belong to the selected virtual center, followed by the related alarm counts.
Datastores. The number of datastores that belong to the selected virtual center, followed by the related alarm counts.
ESX Hosts. The number of ESX hosts that belong to the selected virtual center, followed by the related alarm counts.
Resource Pools. The number of resource pools that belong to the selected virtual center, followed by the related alarm counts.
Virtual Center. The name of the selected virtual center, followed by the related alarm counts.
Virtual Machines. The number of virtual machines that belong to the selected virtual center, followed by the related alarm counts.

Drill down on:

Alarm count. Displays the Alarms dialog box that shows a list of all related alarms. For each alarm entry, it shows its severity, the time at which it was triggered, the rule name that triggered the alarm, and the alarm message.
Clusters. Displays the Clusters Inventory dwell, showing the names and states of all clusters that belong to the selected virtual center.
Datacenters. Displays the Datacenters Inventory dwell, showing the names and states of all datacenters that belong to the selected virtual center.
Datastores. Displays the Datastores Inventory dwell, showing the names and states of all datastores that belong to the selected virtual center.
ESX Hosts. Displays the ESX Hosts Inventory dwell, showing the names and states of all ESX hosts that belong to the selected virtual center.
Resource Pools. Displays the Resource Pools Inventory dwell, showing the names and states of all clusters that belong to the selected virtual center.
Virtual Center. Displays the Virtual Centers Inventory dwell, showing the name and states of the selected virtual center.
Virtual Machines. Displays the Virtual Machines Inventory dwell, showing the names and states of all virtual machines name that belong to the selected virtual center.

Shows the resource consumption for the selected virtual center broken down into four simple views.

CPU Load. The current percentage of the selected virtual center’s CPU load, used to execute system code and user programs, based on the total CPU capacity.
CPU Utilization, % Ready. The percentage of the virtual center’s CPU resources that is ready to execute system code and user programs during the selected time period.
CPU Utilization, % Used. The percentage of the virtual center’s CPU utilization spent on executing system code and user programs during the selected time period.
Disk I/O. The current disk I/O rate for the selected virtual center.
Disk Utilization, Read Rate. The rate at which the virtual center reads data from the disk during the selected time period.
Disk Utilization, Write Rate. The rate at which the virtual center writes data to the disk during the selected time period.
Memory Utilization, Active. The amount of the available memory that the virtual center uses during the selected time period.
Memory Utilization, Ballooned. The amount of physical memory that is actively being used by the VMware Memory Control Driver to allow the guest OS to selectively swap memory.
Memory Utilization, Shared. The amount of the virtual machine memory that is freed up due to transparent page sharing.
Memory Utilization, Swapped. The amount of memory that is stored in disk swap space
Network I/O. The current rate at which the selected virtual center transfers data from and to the network.
Network Utilization, Receive Rate. The rate at which the selected virtual center receives data from the network during the selected time period.
Network Utilization, Send Rate. The rate at which the selected virtual center sends data to the network during the selected time period.

Drill down on:

CPU Load spinner. Displays the CPU Load dialog box.
CPU Utilization graph. Displays the CPU Utilization dialog box.

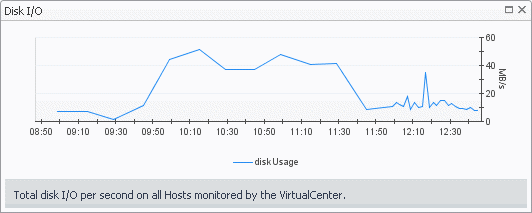

Disk I/O spinner. Displays the Disk I/O dialog box.

Disk Utilization graph. Displays the Disk Utilization dialog box.

Memory Utilization graph. Displays the Memory Utilization dialog box.

Network I/O spinner. Displays the Network I/O dialog box.
Network Utilization graph. Displays the Network Utilization dialog box.

Summary (All Virtual Centers) view

The Summary - All Virtual Centers view displays overall resource utilization information for a group of virtual centers and shows the elements that consume the highest amount of system resources.

1
On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Virtual Centers tile.
2
In the Quick-View, select the Summary node in the Virtual Centers view.
The Summary (All Virtual Centers) view appears on the right.

This view is made up of the following embedded views:

Table 164. Alarms

Lists the alarms generated against the monitored system.

Alarm Message. An explanation about why the alarm occurred.
Severity. Indicates the alarm severity: Warning, Critical, or Fatal.
Time. The time at which the alarm was generated.

Drill down on:

Alarm Message or Time. Links to the view that shows additional information about the component affected by the alarm.
Severity. Displays the Alarm dialog box, showing additional information about the alarm. For more information about alarms in Foglight, see the Foglight User Help.

Shows the top three virtual centers with the highest average CPU utilization.

Used Hz.The amount of CPU processing speed each of the top three CPU consumers spend on executing system code and user programs, during the selected time range.
Virtual Center. The name of the virtual center.

Drill down on:

Used Hz (in the graph). Displays the Top Virtual Centers -CPU Used Hz dialog box.

Shows the top three virtual centers with the lowest available disk space.

Rate. The rate at which the top three disk consumers read or write data to the disk during the selected time range.
Virtual Center. The name of the virtual center.

Drill down on:

Rate (in the graph). Displays the Top Virtual Centers - Disk Transfer Rate dialog box.

Shows the top three virtual centers with the highest average memory utilization.

Consumed. The amount of memory the top three memory consumers use during the selected time range.
Virtual Center. The name of the virtual center.

Drill down on:

Consumed. Displays the Top Virtual Centers - Memory Consumed dialog box.

Shows the top three virtual centers that are consuming most network bandwidth.

Rate. The rate at which the top three network consumers transfer data to or from the network during the selected time range.
Virtual Center. The name of the virtual center.

Drill down on:

Rate. Displays the Top Virtual Centers - Network Transfer Rate dialog box.

Virtual Centers view

This view is a tree view. It lists the virtual centers that exist in your environment and shows their state.

Selecting the All Virtual Centers node displays overall resource utilization for all virtual centers in your integrated system, and the elements that consume the highest amount of system resources in the Summary (All Virtual Centers) view on the right. Similarly, selecting a server node shows server-specific metrics in the Virtual Center Summary view on the right.

On the VMware Environment dashboard, on the Monitoring tab, in the Virtual Environment Overview, select the Virtual Centers tile.
The Virtual Centers view appears in the Quick-View on the left.
Alarm severity. The state of the highest-severity alarm raised against the selected virtual center.
All Virtual Centers. A parent node for the virtual center object instances that appear in this view.
Virtual Center. A virtual center name.

Drill down on:

Virtual Environment Overview

The Virtual Environment Overview provides you with an overview of the selected virtual environment.

The overview has a tile for each type of object in your virtual infrastructure. Each tile shows the number of instances the corresponding object type that exist in your virtual infrastructure, as well as the count of objects of that type in each of the alarm states (Normal, Warning, Critical, Fatal).

You can move the tiles by dragging and dropping until you achieve the desired layout. To hide one or more tiles, on the tool bar on the right, click Edit , and in the popup that appears, click a tile that you want to hide.

Click the object type icon, the object type name, or the object count, to view summary information for that entire object type in the Quick-View. Click an alarm state (for example, warning) on a tile to view summary information in the Quick-View for the objects of that type that are in the selected alarm state.

If an alarm state has a count of zero, then you can not select that alarm state.

The Virtual Environment Overview is located at the top of the display area.
