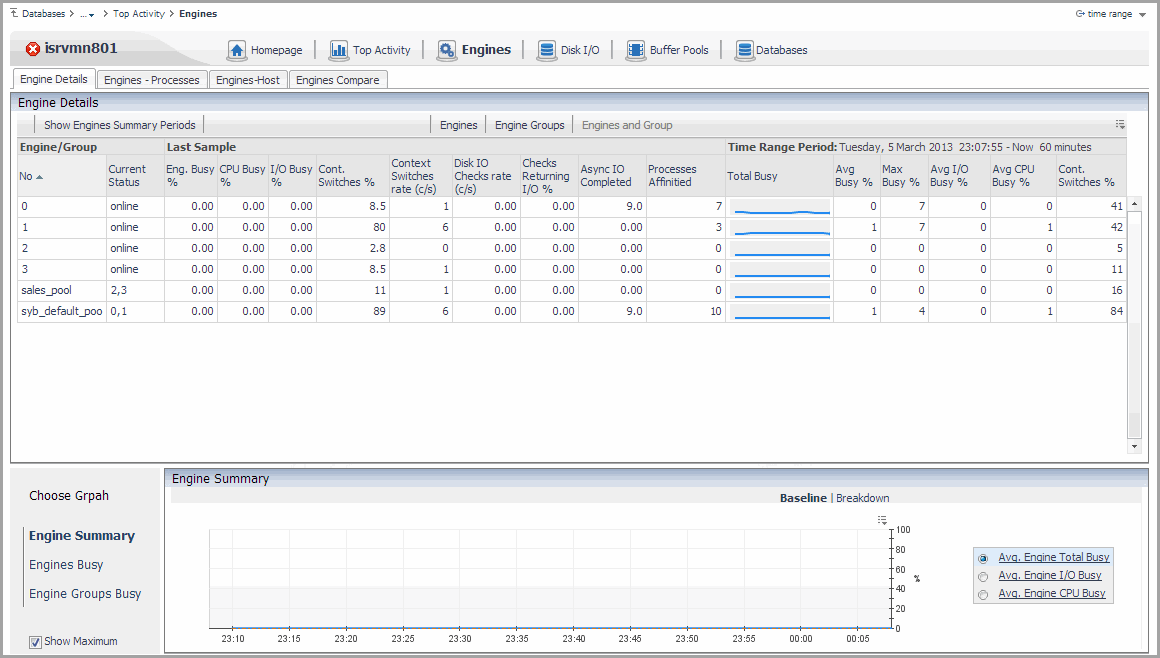

Engine details information is provided in a table and a chart:
You can filter the Engine Details table to include:
The engine number.
The current status of the engine: online or offline. Hovering over this value provides more information.
Eng. Busy %
The percentage busy for this engine.
CPU Busy %
The percentage CPU time all engines spent not idle.
I/O Busy %
The percentage of input/output resources currently being used by the database engine.
Cont. Switches %
The percentage of the total number of context switches for the engine divided by those completed for all engines.
Context Switches rate (c/s)
The count of context switches for the engine occurring per second.
Disk IO Checks rate
The number of times the engine checked for asynchronous disk I/O.
Checks Returning I/O %
The percentage of disk I/O checks with I/O pending.
Async IO Completed
The number of times the engine completed I/O.
The number of processes affined with the engine.
The percentage busy for all of the database engines.
Avg Busy %
The average percentage busy for all of the database engines.
Max Busy %
The maximum percentage busy for all of the database engines.
Avg I/O Busy %
The average percentage of input/output resources currently being used by all of the database engines.
Avg CPU Busy %
The average percentage CPU time all database engines spent not idle.
The percentage of the total number of context switches for one engine divided by those completed for all engines.
The following three values, plotted over time:
Plots how busy an engine was over time. Select from the list of available engines.
Engine Groups / Thread Pools Busy 1
Plots an average of how busy an engine group or thread pool was over time. Select from the list of available engine groups or thread pools.
For thread pools, this information is only available from Sybase ASE 15.7 ESD2 and later.
To view a plot of the maximum value over the course of the time period, select Show Maximum.
The engine processes information is provided in three charts.
The following values, plotted over time:
The number of engine processes running, plotted over time.
The number of engine context switches, plotted over time.
The engines host information is provided in two charts.
The following values, plotted over time, for each engine:
All Engines Activity
The percentage of activity for each engine.
The engines compare information is provided in three charts.
Engines - time range
Engines - month, day, year
This displays the plotted values for the previous day (that is, yesterday).
This displays the plotted values from today minus seven days (that is, a week ago) for a 24 hour period.
