Removing a resource mapping from the Credentials dashboard

When a credential is used for multiple storage devices, you can remove storage devices from the credential when it is no longer valid.

To remove a resource mapping credential:
1
On the navigation panel, under Dashboards, click Administration > Credentials.
The Credentials view displays.
2
Click Manage Credentials.
3
In the Resource Mappings column, click the storage device you want to remove.
The Update Resource Mapping of Credential page opens.
4
Click the Remove icon for the required resource.
5
When prompted for confirmation, click Confirm. The mapping credential is deleted.
6
Click Save.
The credential is removed from the Manage Credentials view.

Managing Discovered Switches and Arrays

The Discovered Targets tab shows the storage devices that are collected through a management resource. The following tabs are provided:

•
Brocade Discovered Targets Tab.
•
Arrays Discovered Targets Tab.

Brocade Discovered Targets Tab

For Brocade switches, this view displays all FC switch names and IP addresses that are being monitored by this agent through the management host.

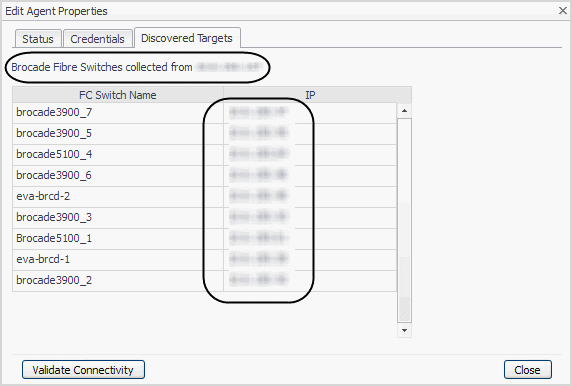

Figure 11. Discovered Targets tab

Arrays Discovered Targets Tab

From this page, you can change which arrays should or should not be collected through the management host.

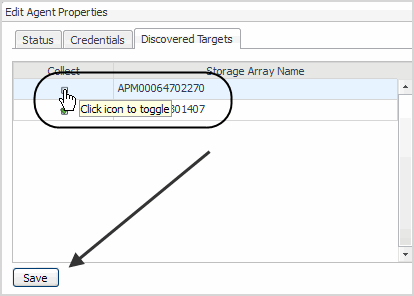

Figure 12. Arrays Discovered Targets tab

The following procedures allow you to disable/enable arrays from being monitored.

Disable/Enable Array Targets
1
Click the storage array name so the corresponding icon is checked or cleared, and click Save.
The Saving message box displays error messages.
2
Click OK.
The properties are saved.
