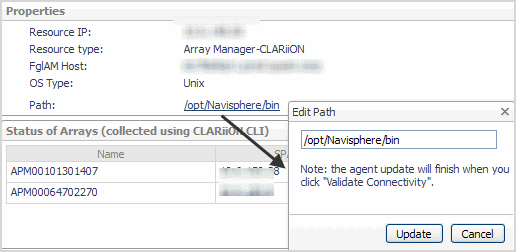

Path Property

CLARiiON monitoring using CLI displays a path property.

Figure 8. Path Property

Click Update.
Click Validate Connectivity before you close the Edit Agent Properties dialog box.

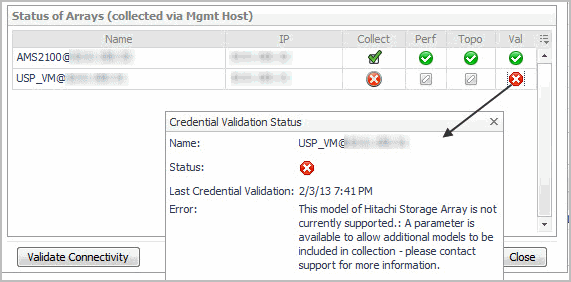

Status of Arrays

This view displays as part of the Status tab only when collecting arrays. The upper Status for Agent panel displays the success/failure in connecting to the array management host.

Each row in this panel displays whether the array is configured for collection, and the status of the last collection attempt to that array. Clicking on the status icon displays the popup that provides error information, if the status was not successful.

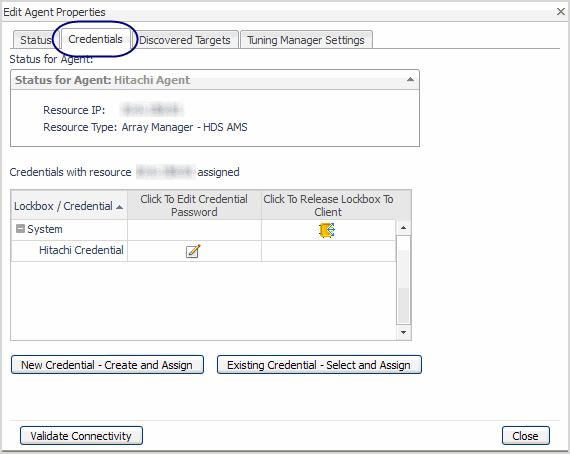

Managing Credentials

This tab displays the credentials for the selected agent.

From this tab you can create or select credentials. For procedures, see Assigning Credentials. You can also edit the password for a credential.

To delete an obsolete credential, remove obsolete mappings, or to manage lockboxes, use the Credentials dashboard. To access this dashboard, on the navigation panel, under Dashboards, click Administration > Credentials. For help with the dashboard, see the online help.

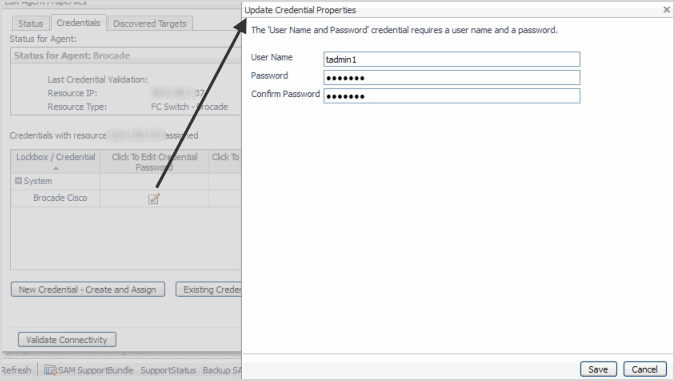

Editing existing credentials

From the Credentials tab, click Validate Connectivity to ensure that the storage device can be accessed with the changed credentials.
