Selecting and assigning an existing credential

To select and assign existing credentials:
1
In the Credential Assignment Wizard, click Existing Credential - Select and Assign.

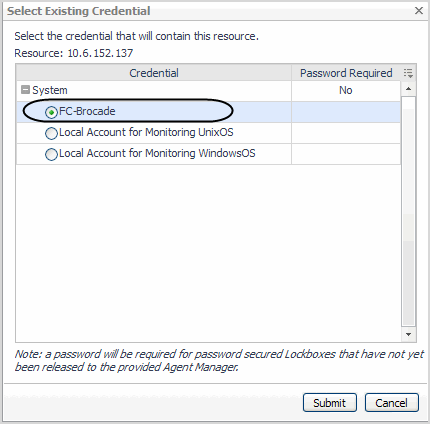

The Select Existing Credential dialog box opens.
2
Select the credential to use with the target storage device.
3
Click Submit.
The Credential Assignment Wizard page is updated to display the assigned credential.
4
If this is the first agent to use a credential in the lockbox, in the row containing the lockbox, click Release Lockbox. If prompted, enter the lockbox password.
5
For Hitachi Data Systems AMS, USP, and VSP devices, click Next to continue with Configuring the Hitachi Tuning Manager. For all other device types, click Finish to return to the Storage Device Setup dialog.

About releasing the Agent Manager lockbox

An Agent Manager lockbox needs to be released the first time an agent is deployed to the Agent Manager host. This releases the lockbox to the client Agent Manager Host, making all the credentials in the lockbox available to the agents on that host. You can release the lockbox from the Storage Device Setup wizard, the Edit Agent Properties dialog box, or from the Credentials dashboard.

Resolving Connection Attempt Errors

If the agent’s attempt to connect and validate fails, the error message usually contains a suggested resolution. For example, you may need to fix credentials or release the lockbox.

If the connection is refused because the entered IP address is incorrect, you need to cancel the wizard, delete the agent, and restart the wizard using the correct IP address. If the port is wrong, you can click the value beside the Port field to correct the value.

If the problem cannot be resolved at this time, close the Storage Device Setup dialog. The configuration that has been done up to the point where the error occurred is saved. After resolving the problem, edit the agent configuration and validate the settings. For more information, see Editing Configured Agents.

Configuring the Hitachi Tuning Manager

To configure the Hitachi Tuning Manager:
1
On the second page of the Credential Assignment Wizard (available only for Hitachi Data Systems AMS, USP, and VSP devices), read the information provided.
2
If you want to use the Hitachi Tuning Manager for collecting additional metrics, check the Use HDS Tuning Manager checkbox.
3
If the Tuning Manager is not installed in the default path, type the installation Path.
4
Type the IP Address of the system on which HDS Tuning is installed. If left blank, then the IP address of the array or array manager is assumed.
5
Click Finish to complete the operation and return to the Storage Device Setup dialog.
