Monitoring File Groups in the Selected Databases

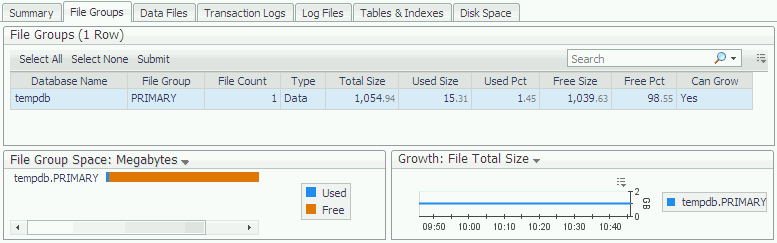

The File Groups pane displays detailed information about all file groups in the databases that are currently selected in the Databases table.

This pane includes the following areas:

•
File Groups table
•
File Group Space chart
•
File Groups Growth chart
File Groups table

The File Groups table shows information about all file groups in the selected database. File stream types (used by memory optimized objects and file-stream objects) are now supported.


Table 39. This table displays the following parameters:
Column
Description
File Group

The name of the file group in the database.

File Count

The number of files in each file group.

Type

The type of file group; for example, data or log file.

Total Size

The total size of all files in the group.

Used Size

The total size of used space of all files in the group.

Used Pct

The percentage of used space of all files in the group.

Free Size

The total size of free space of all files in the group.

Free Pct

The percentage of free space of all files in the group.

Can Grow

Indicates whether the files in the file group (if any) can grow automatically as they fill.

File Group Space chart

The File Groups Space chart displays the amount of space allocated to each file group. Each file group consists of used space and free space.

The chart values can be displayed in megabytes or as a percentage of disk space. Use the File Groups Space list to change the values displayed on the chart.

File Groups Growth chart

The Growth chart displays the amount by which each file group is growing over time.

Use the Growth list to change the values displayed on the chart. This list can be displayed by the total amount of space (File total size), used space (File used size), or unused space (File free size).

Monitoring data files

The Data Files pane displays detailed information about all data files in the database currently selected in the Databases table.

Figure 21. The Data Files pane.

This pane includes the following areas:

•
Data Files table
•
Data Files Space chart
•
Data Files Growth chart
Data Files table

To create a custom filter for this table, use the options accessible by clicking the Customizer button at the table’s upper right side. For details, see Components Shared by all Foglight for SQL Server Screens .

Table 40. The Data Files table displays the following indicators for all database data files:
Column
Description
Files

The name of the data file.

File Group

The name of the file group to which the file belongs.

Type

The type of file group; for example, data or log.

Total Size

The size of the file.

Used Size

The total size of the file’s used space.

Free Size

The total size of the file’s free space.

Used Pct

The percentage of the file’s used space.

Free Pct

The percentage of the file’s free space.

Auto Grow

Indicates whether the file can grow automatically.

Growths Remaining

The number of times the file can grow, considering its currently configured autogrow increment, before exceeding its space limits.

Max Size

The maximum size to which the file can grow.

Growth Inc.

Growth increment. Indicates the amount by which the file grows every time, if the autogrow option is enabled. for example, if the data file’s initial size is 1 megabyte and it has to grow to a final size of 11 megabytes, setting the Growth Inc. parameter to 2 megabytes causes the file to grow five times, each time by a 2 megabyte increment.

Path

The path of the data file.

Db and File

The database name, concatenated with the database file name.

Data Files Space chart

The File Space chart displays the amount of space allocated to the data file for each selected database. Each data file consists of used and free space.

The chart values can be displayed in megabytes or as a percentage of disk space. Use the File Space list to change the values displayed on the chart.

Data Files Growth chart

The Data Files Growth chart displays, in megabytes, the amount by which each file is growing over time.

Use the Growth list to change the values displayed on the chart. This list can be displayed by the total amount of space (File Total Size), used space (File Used Size) or unused space (File Free Size).

Monitoring Transaction Logs in the Selected Database

The Transaction Logs pane displays detailed information about all transaction logs in the database currently selected in the Databases table.

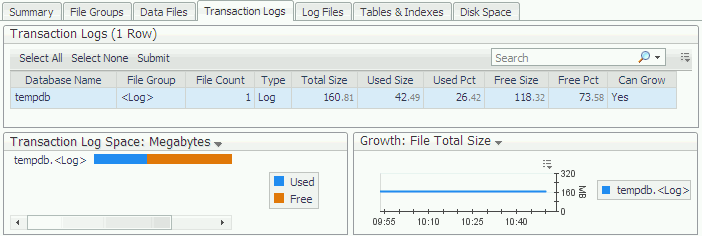

Figure 22. The Transaction Logs pane.

This pane includes the following areas:

•
Transaction Logs table
•
Transaction Log Space chart
•
Transaction Log Growth chart
Transaction Logs table

The Transaction Logs table displays information about all transaction logs in the selected databases, as detailed in the following table.


Table 41. The Transaction Logs table details.
Column
Description
File Group

The name of the file group to which the file belongs.

File Count

The number of transaction logs in the database.

Type

The type of file; for example, log.

Total Size

The total size of all files in the transaction log.

Used Size

The amount of used space.

Used Pct

The percentage of used space within the log file.

Free Size

The amount of free space.

Free Pct

The percentage of space available for use within the log file.

Can Grow

Indicates whether any of the files in the transaction log can grow.

Transaction Log Space chart

The Transaction Log Space chart displays used space and free space for each of the selected databases’ transaction logs.

The chart values can be displayed in megabytes or as a percentage of disk space. Use the Transaction Log Space list to change the values displayed on the chart.

Transaction Log Growth chart

The Transaction Log Growth chart shows the amount by which each transaction log is growing over time.

Use the Growth list to change the values displayed on the chart. This list can be displayed by the total amount of either all transaction logs (File Total Size), used logs database (File Used Size), or unused transaction logs (File Free Size).
