Foglight for Microsoft DOT NET 5.9.12 - Installation and Configuration Guide

Installing and Configuring Foglight for Microsoft .NET Managing .NET Agent Configurations

Viewing .NET installation properties

Review the installation properties to quickly verify the installation directory, and the agent and Agent Manager versions.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
7
Click OK to close the dialog box.

Managing .NET transaction agent configurations

The Transaction Agent Configurations tab of the .NET tab provides an overview of the existing transaction configurations and indicates how many agents are using each one.

Use the Transaction Agent Configurations tab for the following activities:

Creating .NET transaction agent configurations

The transaction agent configuration controls how the .NET Agent collects transaction data from the monitored host. Each configuration can define a distinct collection of instrumentation settings. You can create configurations at any time and assign them to agents only when you want them to be used.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
On the .NET view, click the Transaction Agent Configurations tab.
a
Select the Copy settings from check box.
b
Click the down arrow to the right of .NetTransactions and select an existing configuration from the list.
9
Click Create.

Viewing and editing .NET transaction agent configurations

You can view and edit the default transaction agent configuration, or any custom configurations you have created, through the .NET Transaction Agent Configuration view. Use the following procedure to edit the instrumentation.config settings for the .NET agents.

1
On the navigation panel, under Dashboards, click Application Servers > Administration.
3
On the .NET view, click the Transaction Agent Configurations tab.
5

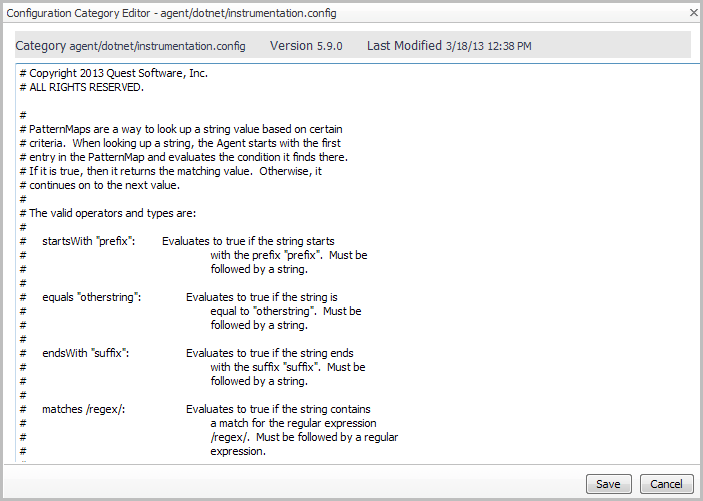

In the list that opens, click Edit Instrumentation Settings...
7
Click Save.
