Foglight for Integrations 5.6.3 - User and Reference Guide

Using Foglight for Integrations Reference

Reference

Review these topics if you are unfamiliar with views and rules in Foglight for Integrations.
•
Views
•
Rules

Views

Foglight displays monitoring data in views that group, format, and display data. The following topics describe the main types of views.
Dashboards are top-level views that do not receive data from other views. Dashboards usually contain several lower-level views. The dashboards supplied with Foglight, and dashboards that users create, are available in the navigation panel.
Lower-level views in Foglight can be added to dashboards or can be accessed by drilling down from a dashboard. They receive and display data directly from the Management Server or from other views. Some views filter or select data that appears in other views in the same dashboard. Some are tree views with expandable nodes for selecting servers, applications, or data.
•
CI List View
•
Alarm Properties View
•
CI Properties View
•
Configuration View
•
SNMP Trap Groups View

CI List View

Purpose
The CI List view allows you to quickly access detailed information on the Configuration Items that have been fed into Foglight from third-party systems. In addition, from this view you can add a configuration item to a service.
This view is located in the navigation panel of the Foglight user interface, under the Integration dashboard.
For more information about working with configuration items in this view, see Reviewing the Property Details of a Configuration Item .
Figure 7. CI List view displaying all configuration items

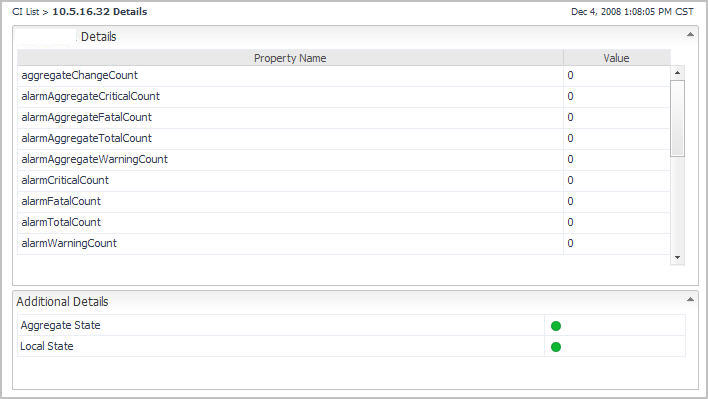

Figure 8. CI List node details view

Table 7. Configuration Items fields and descriptions
Data Type
Description
name
A unique name of a Configuration Item.
aggregateState
The current state of the Configuration Item.
For more information, see Alarm Properties View .
technologyMonitor
The technology monitor that sends Configuration Items.
source Id
A value that uniquely identifies the Configuration Item in the technology monitor.
type
A simple description of the type of object. For example, Node, Interface, Database, Business Service, and so on.
status
The status of the Configuration Item in the source system. The status can be either Active or Inactive. State icons indicate the status of a domain, server, application, or process.
effectiveStartDate
The date and time the Configuration Item was created.

Table 8. State icons
Icons
Description
Normal
Warning
Critical
Fatal

Alarm Properties View

Purpose
The Alarm Properties view lists added and supplied properties for alarms. Added Properties lists unique properties that the user or operator has added for an alarm. Supplied Properties is a list of the properties that are supplied by default.
Use this viewto add properties for an alarm, as a result of that customizing an installation to meet the needs of the customer. Users can define a (limited) data type for the property along with a flag indicating whether many values are supported.
This view is located in the navigation panel of the Foglight user interface, under the Integration > Property Administration dashboard.
Figure 9. Alarm Properties view
For more information about how to add alarm properties, see Working in the Alarm Properties Dashboard .
Table 9. Added properties and Supplied Properties
Data Type
Description
Name
A required field that assigns a unique alarm property name.
Type
String: This value can include numeric characters, alphanumeric characters, and symbols

Boolean: True or False

Integer: A whole number between the values of -2147483648 and 2147483647

Long: A whole number with a range larger than Integer

Float: A 32-bit floating point number

Double: A 64-bit floating point number
Is List
True — Set the property to allow multiple values
False — Set the property to allow only one value
